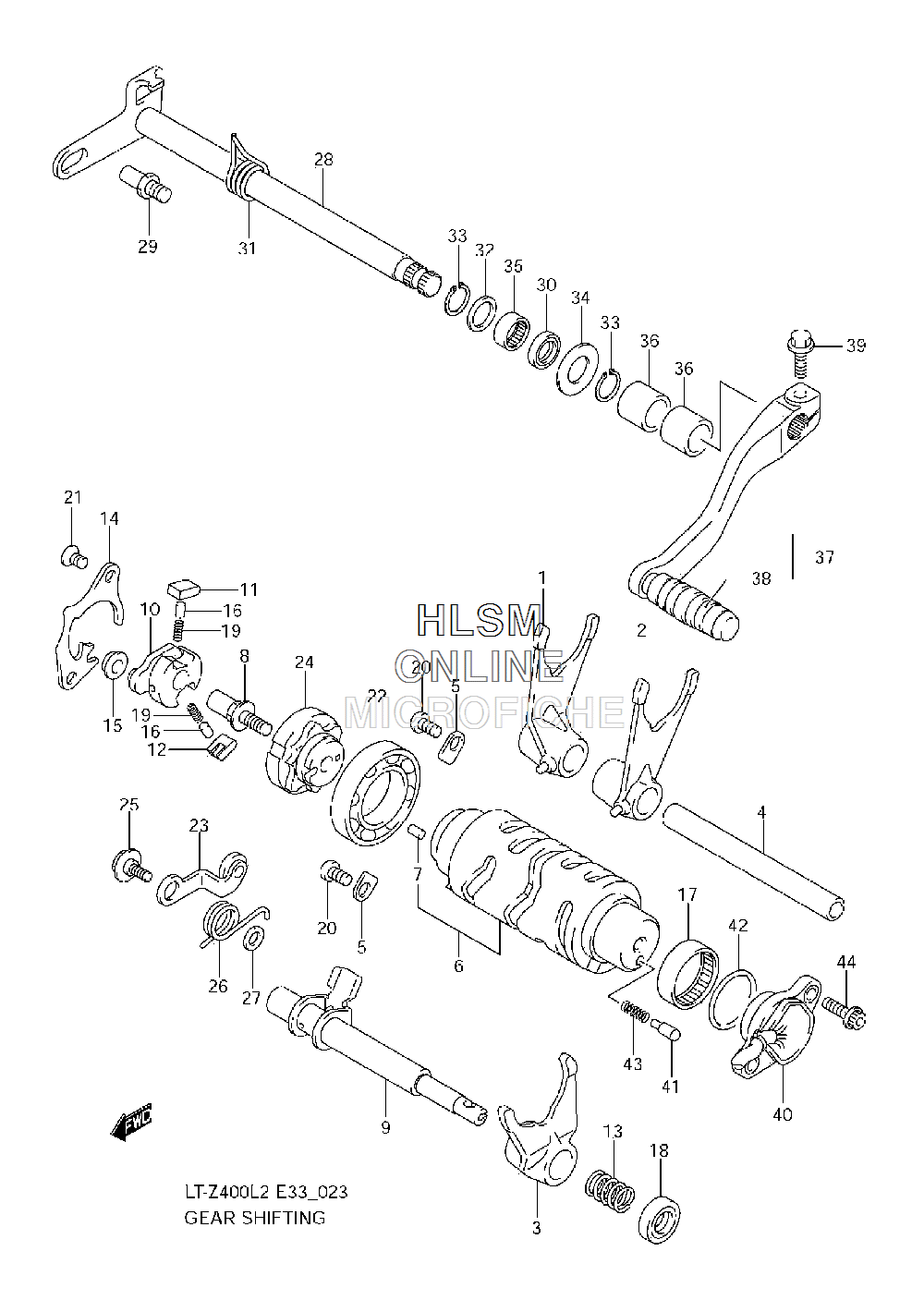

GEAR SHIFTING для Suzuki LT-Z400Z QuadSport Z400 Limited - 2012 года выпуска
-
№АртикулНазвание
-
125211-07G00 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-07G00 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-07G00 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-07G00 SHAFT, GEAR FORK NO.1SHAFT, GEAR FORK NO.1
-
524741-21A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
625310-33H00 CAM, GEAR SHIFT (INCL. 7)CAM, GEAR SHIFT (INCL. 7)
-
704221-04089 PIN 4X8PIN 4X8
-
825313-27C02 PIN, SHIFTPIN, SHIFT
-
925320-07G00 SHAFT, REVERSE LOCKSHAFT, REVERSE LOCK
-
1025322-36E00 SHIFTER, GEAR SHIFT CAMSHIFTER, GEAR SHIFT CAM
-
1125323-34201 PAWL, GEAR SHIFT NO.1PAWL, GEAR SHIFT NO.1
-
1225324-34201 PAWL, GEAR SHIFT NO.2PAWL, GEAR SHIFT NO.2
-
1325328-07G00 SPRING, REVERSE LOCKSPRING, REVERSE LOCK
-
1425331-37E10 LIFTER, GEAR SHIFT PAWLLIFTER, GEAR SHIFT PAWL
-
1509180-07014 SPACER (7X10X5)SPACER (7X10X5)
-
1609209-05023 PINPIN
-
1709263-25018 BEARING (25X32X12)BEARING (25X32X12)
-
1809283-10010 OIL SEAL (10X20X5)OIL SEAL (10X20X5)
-
1909440-04003 K S PAWL SPRINGK S PAWL SPRING
-
2009125-06122 BOLT (6X12)BOLT (6X12)
-
2109120-06014 SCREW (6X18)SCREW (6X18)
-
2208113-69050 BEARING (25X42X9)BEARING (25X42X9)
-
2325350-07G00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
2425381-36E11 PLATE, SHIFT CAM STOPPERPLATE, SHIFT CAM STOPPER
-
2509111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
2625355-07G00 SPRING, SHIFT CAMSPRING, SHIFT CAM
-
2708211-06121 WASHERWASHER
-
2825510-07G00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2925671-38B00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
3009283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
3109444-20006 SPRINGSPRING
-
3209181-14139 SHIM (14X20X1)SHIM (14X20X1)
-
3308331-3114A CIRCLIPCIRCLIP
-
3409160-14046-XC0 WASHER (14X29X1.5)WASHER (14X29X1.5)
-
3509263-14027 BEARING (14X20X12)BEARING (14X20X12)
-
3609180-14016 SPACER (14X20X17.5)SPACER (14X20X17.5)
-
3725600-07G10 LEVER ASSY, GEAR SHIFT (INCL. 38)LEVER ASSY, GEAR SHIFT (INCL. 38)
-
3825652-16500 RUBBER, GEAR PEDALRUBBER, GEAR PEDAL
-
3901550-0620A BOLTBOLT
-
4037730-33H00 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
4109209-05011 K S PAWL ROLLERK S PAWL ROLLER
-
4209280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
4309440-04010 K S PAWL SPRINGK S PAWL SPRING
-
4407120-0516A BOLTBOLT
