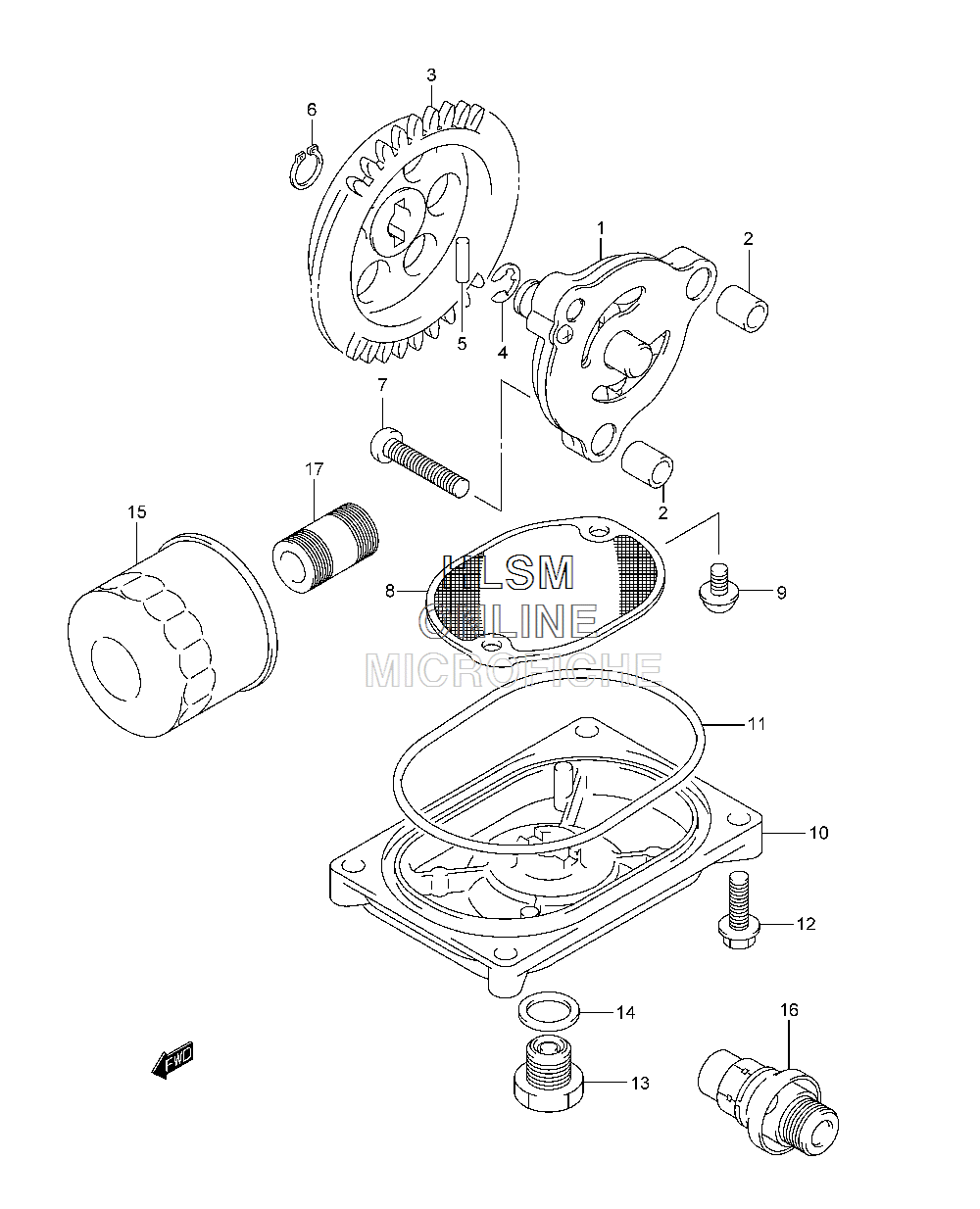

OIL PUMP для Suzuki LT-A400FC KingQuad 400ASi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска
-
№АртикулНазвание
-
116400-27H00 PUMP, ENGINE OILPUMP, ENGINE OIL
-
204211-09109 PINPIN
-
316331-14D02 GEAR, DRIVEN (NT:35)GEAR, DRIVEN (NT:35)
-
409181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
509261-04009 PIN (4X15.8)PIN (4X15.8)
-
608331-31109 CIRCLIPCIRCLIP
-
702112-0625A SCREWSCREW
-
816520-27H00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
902112-7512A SCREWSCREW
-
1016523-24501 CAP, OIL STRAINERCAP, OIL STRAINER
-
1116528-24500 O RINGO RING
-
1201547-0625A BOLTBOLT
-
1309247-14002 PLUG (MAGNET)PLUG (MAGNET)
-
1409168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1516510-07J00 FILTER ASSY, ENG OIL M20(P1.0FILTER ASSY, ENG OIL M20(P1.0
-
1616440-27A01 VALVE ASSY, OIL RELIEF (6K)VALVE ASSY, OIL RELIEF (6K)
-
1716591-06B01 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
