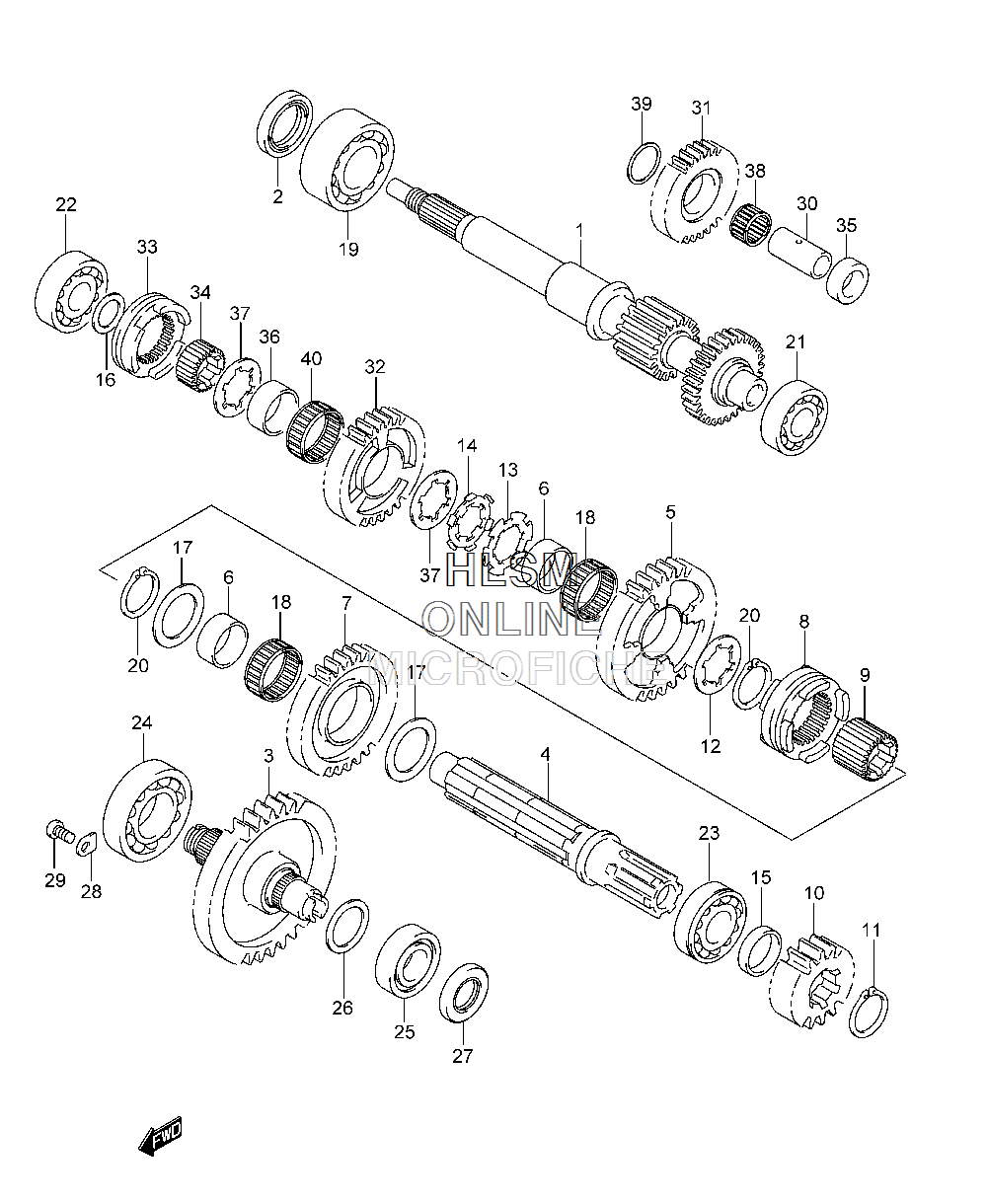

TRANSMISSION (2) для Suzuki LT-A400FC KingQuad 400ASi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска

№

Артикул

Название
1

29111-38F10 SHAFT, DRIVE (NT:16/24)

SHAFT, DRIVE (NT:16/24)

45 340 ₽
2

12281-87J00 SEAL, DRIVE SHAFT R OIL

SEAL, DRIVE SHAFT R OIL

2 820 ₽
3

29120-27H10 SHAFT, SUB T/M OUTPUT (NT:42)

SHAFT, SUB T/M OUTPUT (NT:42)

40 590 ₽
4

29131-27H00 SHAFT, SUB T/M COUNTER

SHAFT, SUB T/M COUNTER

17 060 ₽
5

29311-09F51 GEAR, SUB T/M DRIVEN LOW (NT:40)

GEAR, SUB T/M DRIVEN LOW (NT:40)

26 000 ₽
6

29315-09F51 BUSH, SUB T/M DRIVEN

BUSH, SUB T/M DRIVEN

4 090 ₽
7

29321-09F51 GEAR, SUB T/M DRIVEN HIGH (NT:33)

GEAR, SUB T/M DRIVEN HIGH (NT:33)

24 690 ₽
8

29331-38F10 DOG, SUB T/M SELECT

DOG, SUB T/M SELECT

12 060 ₽
9

29332-38F10 SPACER, SUB T/M SELECT

SPACER, SUB T/M SELECT

0 ₽
10

29411-38F00 GEAR, SUB T/M DRIVE NO.2 (NT:19)

GEAR, SUB T/M DRIVE NO.2 (NT:19)

11 140 ₽
11

08331-31259 CIRCLIP

CIRCLIP

360 ₽
12

09167-25017 LOCK WASHER

LOCK WASHER

540 ₽
13

09167-25013 LOCK WASHER (25.1X41X1.5)

LOCK WASHER (25.1X41X1.5)

470 ₽
14

09169-25001 WASHER

WASHER

390 ₽
15

09180-25097 SPACER (25X30X7)

SPACER (25X30X7)

1 410 ₽
16

09181-20195 SHIM (20X30X1)

SHIM (20X30X1)

440 ₽
17

09181-25251 SHIM (25X40X1)

SHIM (25X40X1)

540 ₽
18

09263-30018 BEARING (30X35X12.8)

BEARING (30X35X12.8)

3 610 ₽
19

08113-62060 BEARING

BEARING

4 810 ₽
20

09380-25003 CIRCLIP

CIRCLIP

530 ₽
21

09262-20069 BEARING (20X47X14)

BEARING (20X47X14)

4 070 ₽
22

09262-20073 BEARING (20X52X15)

BEARING (20X52X15)

4 070 ₽
23

09262-25003 BEARING (25X52X15)

BEARING (25X52X15)

4 340 ₽
24

09262-35038 BEARING (35X72X17)

BEARING (35X72X17)

8 060 ₽
25

09262-25003 BEARING (25X52X15)

BEARING (25X52X15)

4 340 ₽
26

09181-25059 SHIM (25X34X1)

SHIM (25X34X1)

540 ₽
27

09283-25076 OIL SEAL (25X45X5)

OIL SEAL (25X45X5)

1 780 ₽
28

24741-21A00 RETAINER, BEARING

RETAINER, BEARING

480 ₽
29

09125-06122 SCREW (6X12)

SCREW (6X12)

350 ₽
30

24551-38F00 SHAFT, REVERSE IDLE

SHAFT, REVERSE IDLE

0 ₽
31

24561-27H00 GEAR, REVERSE IDLE (NT:28)

GEAR, REVERSE IDLE (NT:28)

16 200 ₽
32

24571-27H00 GEAR, REVERSE DRIVEN (NT:34)

GEAR, REVERSE DRIVEN (NT:34)

17 040 ₽
33

24581-27H00 DOG, REVERSE GEAR SLIDING

DOG, REVERSE GEAR SLIDING

12 060 ₽
34

24582-38F10 SPACER, REVERSE SLIDING

SPACER, REVERSE SLIDING

4 820 ₽
35

24562-27H00 SPACER, REVERSE IDLE GEAR

SPACER, REVERSE IDLE GEAR

2 420 ₽
36

29315-09F51 BUSH, REVERSE DRIVEN GEAR

BUSH, REVERSE DRIVEN GEAR

4 090 ₽
37

09167-25017 LOCK WASHER

LOCK WASHER

540 ₽
38

09263-20060 BEARING (20X24X13)

BEARING (20X24X13)

2 970 ₽
39

09181-20195 SHIM (20X30X1)

SHIM (20X30X1)

440 ₽
40

09263-30018 BEARING (30X35X12.8)

BEARING (30X35X12.8)

3 610 ₽
