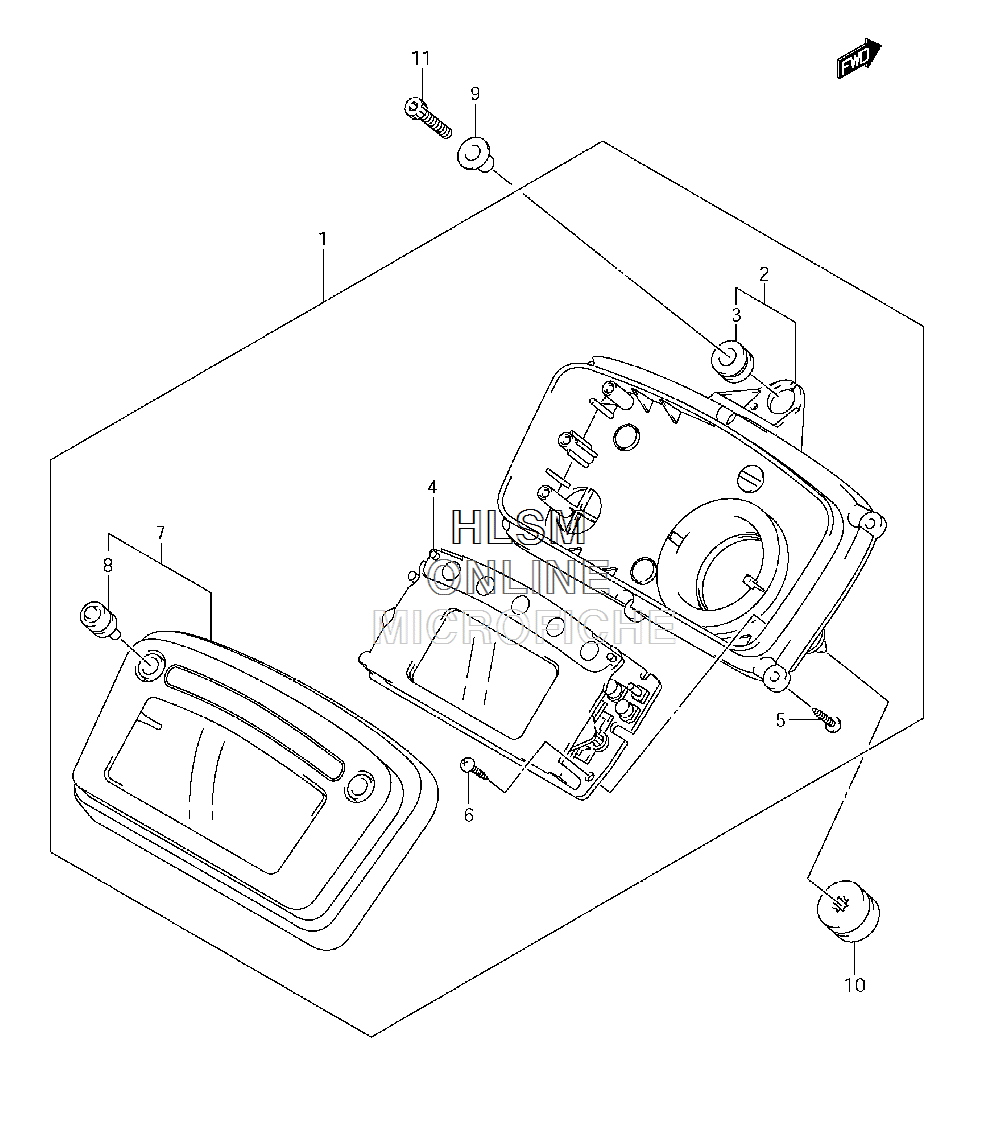

SPEEDOMETER для Suzuki LT-A750XZ KingQuad 750AXi (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
134100-31GB0 SPEEDOMETER ASSY (MILE)SPEEDOMETER ASSY (MILE)
-
234111-31GE0 ...LOWER CASE ASSY...LOWER CASE ASSY
-
334955-03GE0 ......CUSHION, METER......CUSHION, METER
-
434120-31GB0 ...SPEEDOMETER (MILE)...SPEEDOMETER (MILE)
-
534149-03G00 ...SCREW (3X14)...SCREW (3X14)
-
634149-31F10 ...SCREW (3X14)...SCREW (3X14)
-
734150-31GE0 ...CASE, UPPER...CASE, UPPER
-
834124-03GE0 ......SWITCH, RUBBER......SWITCH, RUBBER
-
934187-47F00 SPACER, SPEEDOMETERSPACER, SPEEDOMETER
-
1034955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1107130-0520B BOLTBOLT
