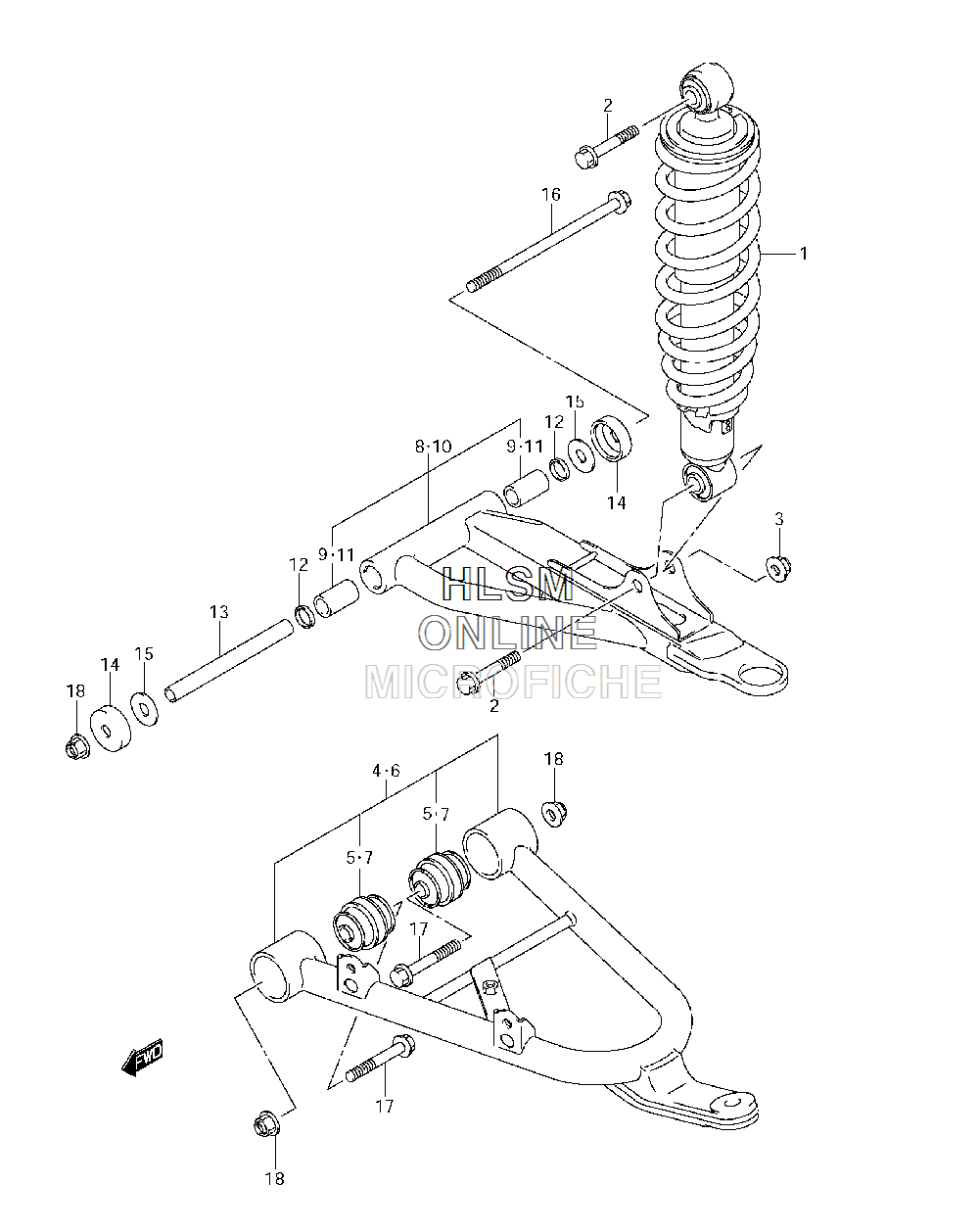

SUSPENSION - FRONT ARM для Suzuki LT-A750XZ KingQuad 750AXi (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
152100-31G20-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10126 BOLT (10X48)BOLT (10X48)
-
309159-10115 NUTNUT
-
452410-31820 ARM SET, SUSPENSION LOWER RIGHTARM SET, SUSPENSION LOWER RIGHT
-
509319-10055 ...BUSH...BUSH
-
652420-31820 ARM SET, SUSPENSION LOWER LEFTARM SET, SUSPENSION LOWER LEFT
-
709319-10055 ...BUSH...BUSH
-
852430-31820 ARM SET, SUSPENSION UPPER RIGHTARM SET, SUSPENSION UPPER RIGHT
-
951236-31G00 ...BUSH...BUSH
-
1052440-31820 ARM SET, SUSPENSION UPPER LEFTARM SET, SUSPENSION UPPER LEFT
-
1151236-31G00 ...BUSH...BUSH
-
1252454-45G00 SEALSEAL
-
1352455-31G10 SPACER, PIVOTSPACER, PIVOT
-
1451255-18900 SEAL, FR SUSPENSION ARM PIVOTSEAL, FR SUSPENSION ARM PIVOT
-
1508211-10281 WASHERWASHER
-
1609103-10389 BOLT (10X160)BOLT (10X160)
-
1709103-10255 BOLT (10X57)BOLT (10X57)
-
1809159-10115 NUTNUT
