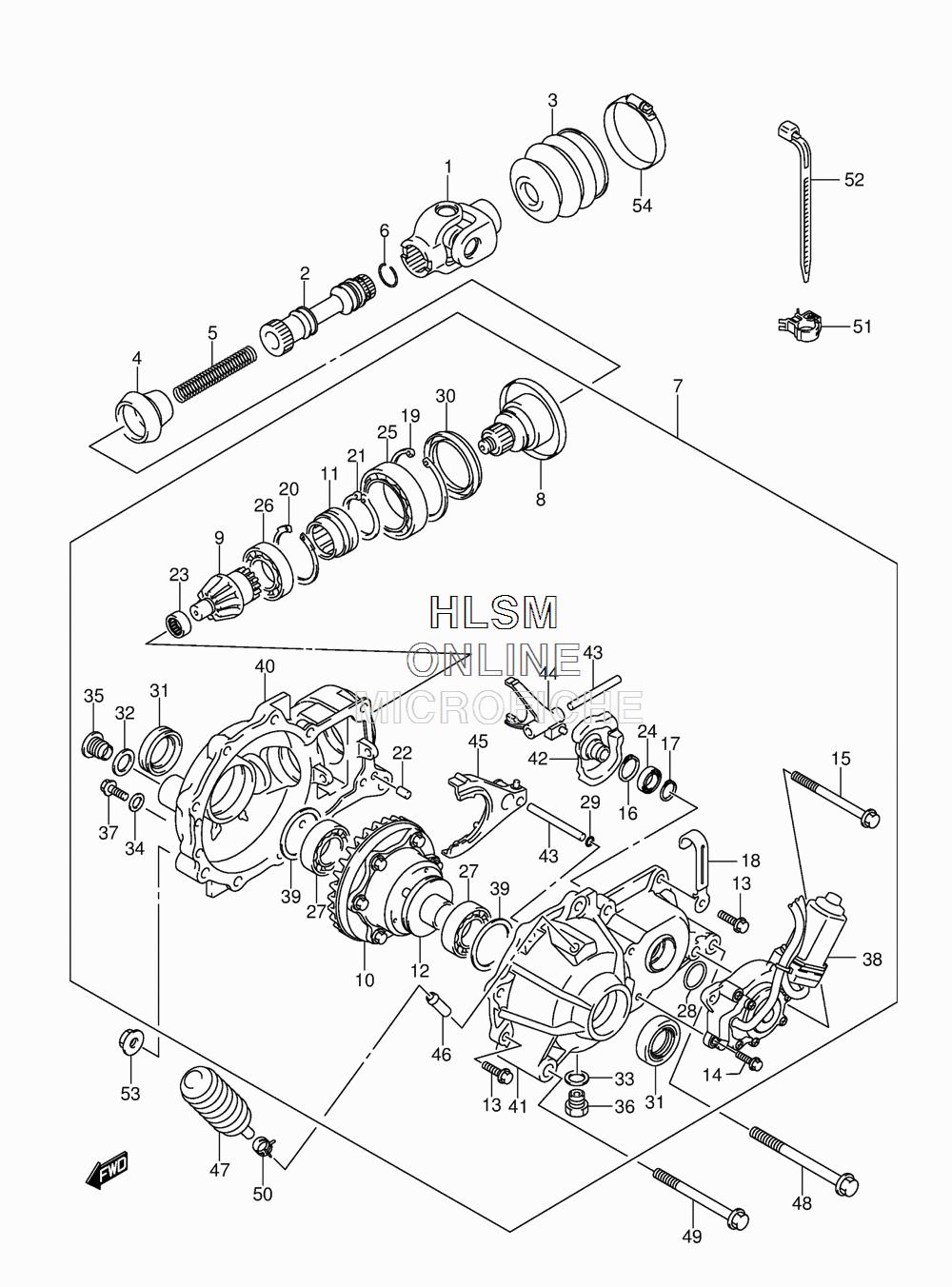

DIFFERENTIAL - FRONT для Suzuki LT-A750Z KingQuad 750AXi (STANDARD COLORS) - 2014 года выпуска
-
№АртикулНазвание
-
127100-31G00 YOKE, FR PROP SHAFTYOKE, FR PROP SHAFT
-
227151-31G30 SHAFT, PROPELLERSHAFT, PROPELLER
-
327153-31G21 BOOT, FRONT PROP SHAFT YOKEBOOT, FRONT PROP SHAFT YOKE
-
427153-31G30 BOOT, FRONT PROP SHAFTBOOT, FRONT PROP SHAFT
-
527191-31G00 SPRING, FR PROPELLER SHAFTSPRING, FR PROPELLER SHAFT
-
609381-20004 SNAP RINGSNAP RING
-
727400-11H10 CASE ASSY, FR DIFFERENTIALCASE ASSY, FR DIFFERENTIAL
-
827130-31GB0 SHAFT ASSY, INPUTSHAFT ASSY, INPUT
-
927311-11HA0 PINION, DRIVEPINION, DRIVE
-
1027320-31GB0 GEAR RING ASSYGEAR RING ASSY
-
1127371-31GA0 SLEEVESLEEVE
-
1227381-31GA0 PIN, SLEEVE DIFF LOCKPIN, SLEEVE DIFF LOCK
-
1327401-38FA1 BOLT, 8X30BOLT, 8X30
-
1427401-31GB0 FLANGE BOLT, HEX HEADFLANGE BOLT, HEX HEAD
-
1527401-31GC0 FLANGE BOLT, HEX HEADFLANGE BOLT, HEX HEAD
-
1627403-31GA0 SNAP RINGSNAP RING
-
1727403-31GB0 SNAP RINGSNAP RING
-
1827403-31GC0 SNAP RINGSNAP RING
-
1927403-38FA0 SNAP RINGSNAP RING
-
2027403-38FB0 SNAP RINGSNAP RING
-
2127403-38FC0 SNAP RINGSNAP RING
-
2227404-31GA0 PINPIN
-
2327405-31GA0 BEARING, PINIONBEARING, PINION
-
2427405-31GB0 BEARINGBEARING
-
2527405-38FA0 BALL BRG 45X68XBALL BRG 45X68X
-
2627405-38FB0 BALL BRNG 32X58BALL BRNG 32X58
-
2727405-38FD0 BALL BRNG 29X52BALL BRNG 29X52
-
2827406-31GE0 O RINGO RING
-
2927406-31GF0 O RINGO RING
-
3027406-38FB0 OIL SEALOIL SEAL
-
3127406-38FD0 OIL SEALOIL SEAL
-
3227407-31GA0 WASHERWASHER
-
3327407-38FB0 WASHERWASHER
-
3427407-38FD0 WASHERWASHER
-
3527409-38FA0 PLUGPLUG
-
3627409-38FB0 PLUGPLUG
-
3727409-38FC0 PLUG, LEVELPLUG, LEVEL
-
3827421-31GA0 DVC ASSYDVC ASSY
-
3927445-38FA0 SHIM SETSHIM SET
-
4027451-31GA0 HOUSING, FINAL DRIVE, FRHOUSING, FINAL DRIVE, FR
-
4127461-31GA0 COVER, FINAL DRIVE, FRCOVER, FINAL DRIVE, FR
-
4227911-31GA0 CAM SHIFTCAM SHIFT
-
4327921-31GA0 ROD SHIFTROD SHIFT
-
4427941-31GA0 FORK SHIFT, 2WD AND 4WDFORK SHIFT, 2WD AND 4WD
-
4527951-31GA0 FORK SHIFT, DIFFLOCKFORK SHIFT, DIFFLOCK
-
4609364-08003 UNIONUNION
-
4727491-38F00 CASE, BREATHERCASE, BREATHER
-
4809103-10061 BOLT (10X90)BOLT (10X90)
-
4909103-10148 BOLT (10X110)BOLT (10X110)
-
5009401-08411 CLIPCLIP
-
5109407-14403 CLAMP (L:125)CLAMP (L:125)
-
5209407-14403 CLAMP (L:125)CLAMP (L:125)
-
5309159-10115 NUTNUT
-
5409402-80501 CLAMPCLAMP
