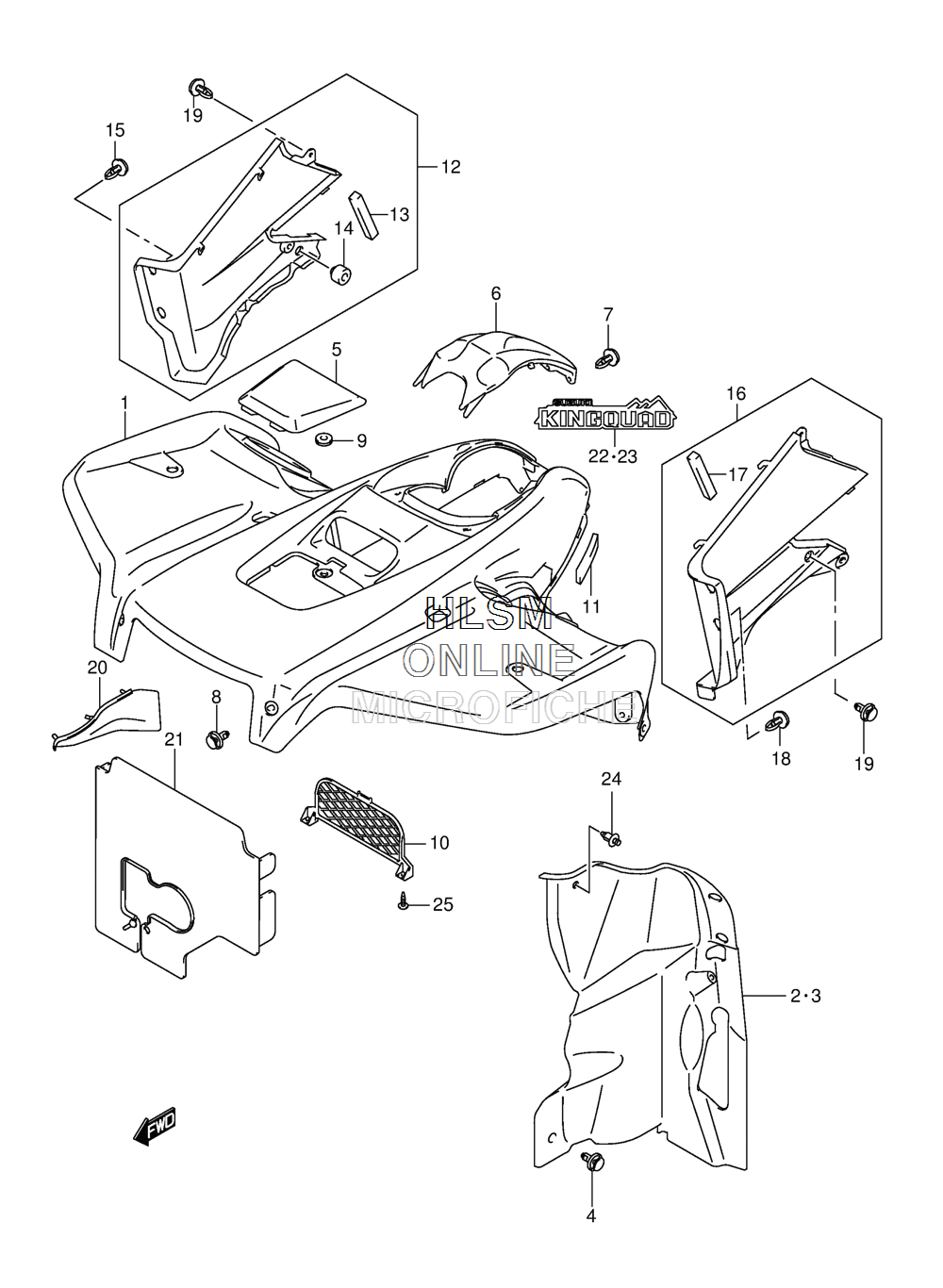

FENDER - FRONT для Suzuki LT-A750Z KingQuad 750AXi (STANDARD COLORS) - 2014 года выпуска
-
№АртикулНазвание
-
153111-31G03-YLG FENDER, FRONT (GREEN)FENDER, FRONT (GREEN)
-
153111-31G03-YLZ FENDER, FRONT (BLACK)FENDER, FRONT (BLACK)
-
153111-31G03-YPW FENDER, FRONT (BLUE)FENDER, FRONT (BLUE)
-
153111-31G03-YT9 FENDER, FRONT (RED)FENDER, FRONT (RED)
-
153111-31G03-YU1 FENDER, FRONT (YELLOW)FENDER, FRONT (YELLOW)
-
253411-31G02 MUDFLAP, FENDER INNER RIGHT HANDMUDFLAP, FENDER INNER RIGHT HAND
-
353421-31G01 MUDFLAP, FENDER INNER LEFT HANDMUDFLAP, FENDER INNER LEFT HAND
-
409409-08335 CLIPCLIP
-
553341-31G01-YLG LID (GREEN)LID (GREEN)
-
553341-31G01-YLZ LID (BLACK)LID (BLACK)
-
553341-31G01-YPW LID (BLUE)LID (BLUE)
-
553341-31G01-YT9 LID (RED)LID (RED)
-
553341-31G01-YU1 LID (YELLOW)LID (YELLOW)
-
653119-31G02-YLG FENDER, CENTER (GREEN)FENDER, CENTER (GREEN)
-
653119-31G02-YLZ FENDER, CENTER (BLACK)FENDER, CENTER (BLACK)
-
653119-31G02-YPW FENDER, CENTER (BLUE)FENDER, CENTER (BLUE)
-
653119-31G02-YT9 FENDER, CENTER (RED)FENDER, CENTER (RED)
-
653119-31G02-YU1 FENDER, CENTER (YELLOW)FENDER, CENTER (YELLOW)
-
709409-08335 CLIPCLIP
-
809409-08335 CLIPCLIP
-
909320-08018 CUSHIONCUSHION
-
1053212-31G01 COVER, INNERCOVER, INNER
-
1153145-07G01 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1253110-31G10-291 COVER, SIDE RIGHT HAND (BLACK)COVER, SIDE RIGHT HAND (BLACK)
-
1353146-05G00 CUSHION, COVER SIDE, RIGHT HANDCUSHION, COVER SIDE, RIGHT HAND
-
1409321-10019 CUSHIONCUSHION
-
1509409-08335 CLIPCLIP
-
1653110-31G20-291 COVER, SIDE LEFT HAND (BLACK)COVER, SIDE LEFT HAND (BLACK)
-
1753146-05G00 CUSHION, COVER SIDE, LEFT HANDCUSHION, COVER SIDE, LEFT HAND
-
1809409-08335 CLIPCLIP
-
1909409-08335 CLIPCLIP
-
2053116-31G00 MUDGUARD, SIDE RIGHT HANDMUDGUARD, SIDE RIGHT HAND
-
2153117-31G00 COVER, CENTERCOVER, CENTER
-
2268151-31GC0-EFG EMBLEM, FRONT FENDER RIGHT HANDEMBLEM, FRONT FENDER RIGHT HAND
-
2368152-31GC0-EFG EMBLEM, FRONT FENDER LEFT HANDEMBLEM, FRONT FENDER LEFT HAND
-
2409409-07333 CLIPCLIP
-
2503541-0516A SCREWSCREW
