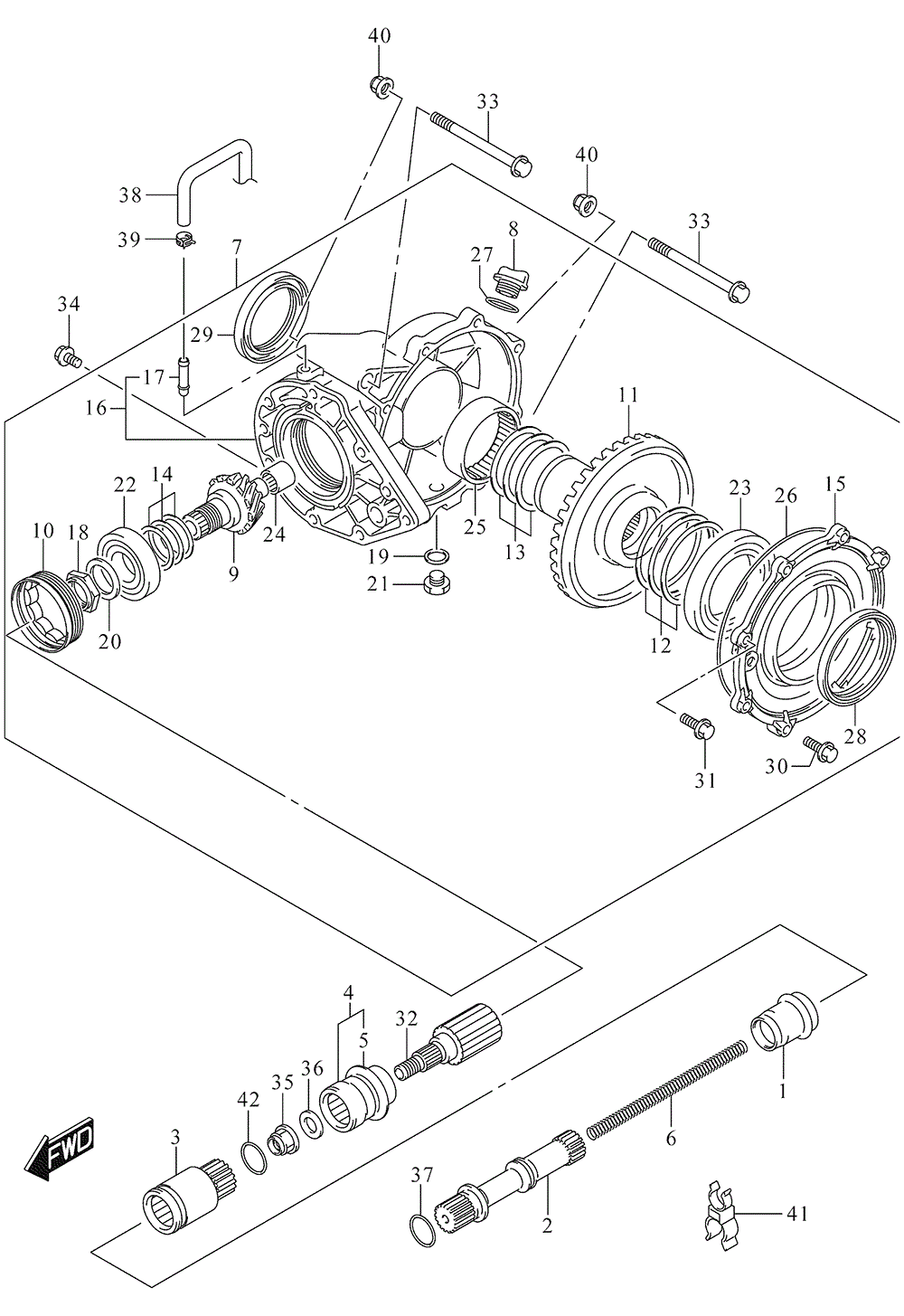

FINAL BEVEL GEAR - REAR для Suzuki LT-A500XPL5 KINGQUAD 500 AXi (Power Steering) - 2015 года выпуска
-
№АртикулНазвание
-
127153-31G40 BOOT, JOINT SHAFTBOOT, JOINT SHAFT
-
227155-31G30 SHAFT, REAR PROPELLERSHAFT, REAR PROPELLER
-
327157-31G10 JOINT, REAR PROPELLERJOINT, REAR PROPELLER
-
427170-31G20 COUPLING, RR PROP SHAFTCOUPLING, RR PROP SHAFT
-
527592-31G10 .PLATE, OUTPUT OIL SEAL.PLATE, OUTPUT OIL SEAL
-
627192-31G10 SPRING, REAR PROPELLERSPRING, REAR PROPELLER
-
727410-31G50 CASE ASSY, REAR FINAL GEARCASE ASSY, REAR FINAL GEAR
-
809259-20008-XC0 .PLUG.PLUG
-
927311-31G50 .GEAR, RR FINAL DRIVE BEVEL (NT:10).GEAR, RR FINAL DRIVE BEVEL (NT:10)
-
1027312-38F00 .STOPPER, FINAL DRIVE.STOPPER, FINAL DRIVE
-
1127320-31G00 .GEAR, RR FINAL DRIVEN (NT:36).GEAR, RR FINAL DRIVEN (NT:36)
-
1227326-31810 .SHIM SET, FINAL DRIVEN LEFT HAND (T:0.30/0.35/0.40/0.50/0.60).SHIM SET, FINAL DRIVEN LEFT HAND (T:0.30/0.35/0.40/0.50/0.60)
-
1327327-31810 .SHIM SET, FINAL DRIVEN RIGHT HAND (T:0.30/0.35/0.40/0.50/0.60).SHIM SET, FINAL DRIVEN RIGHT HAND (T:0.30/0.35/0.40/0.50/0.60)
-
1427445-24810 .SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60).SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60)
-
1527451-31G10 .CASE, REAR FINAL GEAR LEFT HAND.CASE, REAR FINAL GEAR LEFT HAND
-
1627460-31G10 .CASE, REAR FINAL GEAR RIGHT HAND.CASE, REAR FINAL GEAR RIGHT HAND
-
1709364-08016 ..UNION..UNION
-
1809140-28006 .NUT.NUT
-
1909168-14002 .GASKET (13.8X18.8X4.8).GASKET (13.8X18.8X4.8)
-
2009181-28195 .SHIM (28X38X1).SHIM (28X38X1)
-
2109247-14013 .PLUG.PLUG
-
2209262-28023 .BEARING (28X68X18).BEARING (28X68X18)
-
2309262-65001 .BEARING (65X100X11).BEARING (65X100X11)
-
2409263-20062 .BEARING (20X34X18).BEARING (20X34X18)
-
2509263-55003 .BEARING (55X67X20).BEARING (55X67X20)
-
2609280-00046 .O RING (D:2.45,ID:156).O RING (D:2.45,ID:156)
-
2709280-17003 .O RING (D:3.1,ID:16.8).O RING (D:3.1,ID:16.8)
-
2809283-59001 .OIL SEAL (59X88X8).OIL SEAL (59X88X8)
-
2909283-59001 .OIL SEAL (59X88X8).OIL SEAL (59X88X8)
-
3009103-08357 .BOLT (8X35).BOLT (8X35)
-
3109103-10294 .BOLT (10X45).BOLT (10X45)
-
3227594-31G50 SHAFT, RR FINAL DRIVESHAFT, RR FINAL DRIVE
-
3309103-10148 BOLT (10X110)BOLT (10X110)
-
3409103-10405 BOLT (10X30)BOLT (10X30)
-
3509159-14010 NUTNUT
-
3609181-14002 SHIM (14X26X2)SHIM (14X26X2)
-
3709280-20002 O RING (D:3.1,ID:19.4)O RING (D:3.1,ID:19.4)
-
3827491-31G00 HOSE, BREATHERHOSE, BREATHER
-
3909401-10403 CLIPCLIP
-
4009159-10115 NUTNUT
-
4109408-00235 CLAMPCLAMP
-
4209280-26006 O RING (D:3.1,ID:26.4)O RING (D:3.1,ID:26.4)
