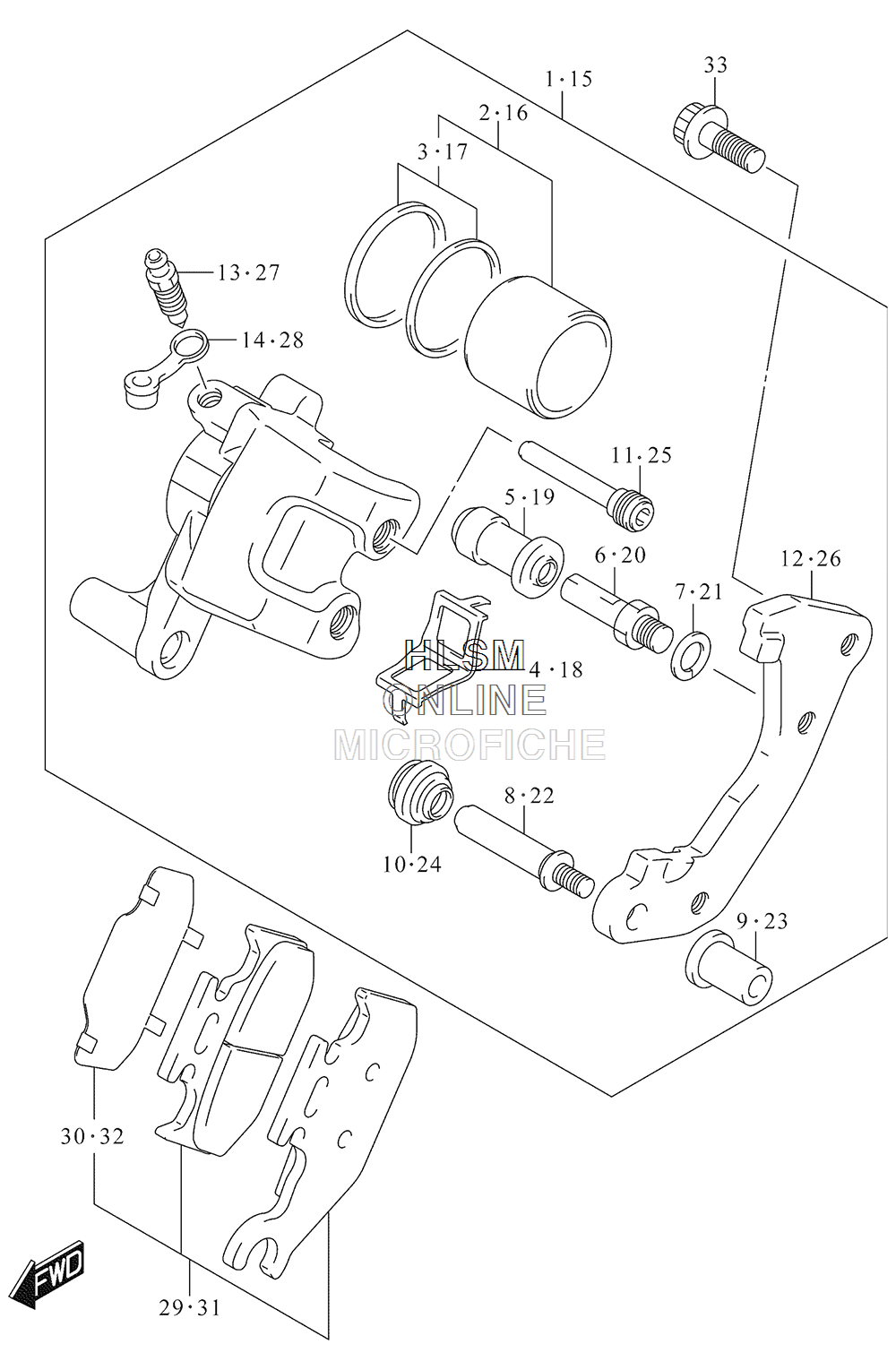

BRAKE - FRONT CALIPER для Suzuki LT-A750XPL5 KINGQUAD 750 AXi (Power Steering) - 2015 года выпуска
-
№АртикулНазвание
-
159100-31G20-999 CALIPER ASSY, FRONT RIGHT HANDCALIPER ASSY, FRONT RIGHT HAND
-
259300-13810 PISTON SETPISTON SET
-
369100-13820 SEAL SET, PISTONSEAL SET, PISTON
-
459315-27C00 SPRING PADSPRING PAD
-
559386-13A00 BOOTBOOT
-
659382-13A00 PINPIN
-
759314-13A00 WASHERWASHER
-
859387-00B20 PINPIN
-
959388-00B20 NUTNUT
-
1059303-14500 BOOTBOOT
-
1159145-39D00 PIN, HANGERPIN, HANGER
-
1259151-31G20 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1359121-01A00 BLEEDERBLEEDER
-
1459122-01A00 CAPCAP
-
1559300-31G20-999 CALIPER ASSY, FRONT LEFT HANDCALIPER ASSY, FRONT LEFT HAND
-
1659300-13810 PISTON SETPISTON SET
-
1769100-13820 SEAL SET, PISTONSEAL SET, PISTON
-
1859315-27C00 SPRING PADSPRING PAD
-
1959386-13A00 BOOTBOOT
-
2059382-13A00 PINPIN
-
2159314-13A00 WASHERWASHER
-
2259387-00B20 PINPIN
-
2359388-00B20 NUTNUT
-
2459303-14500 BOOTBOOT
-
2559145-39D00 PIN, HANGERPIN, HANGER
-
2659351-31G20 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
2759121-01A00 BLEEDERBLEEDER
-
2859122-01A00 CAPCAP
-
2959100-31870 PAD AND SHIM SET RIGHT HANDPAD AND SHIM SET RIGHT HAND
-
3069132-28C00 SHIMSHIM
-
3159100-31880 PAD AND SHIM SET LEFT HANDPAD AND SHIM SET LEFT HAND
-
3269132-28C00 SHIMSHIM
-
3309106-08176 BOLT (8X20)BOLT (8X20)
