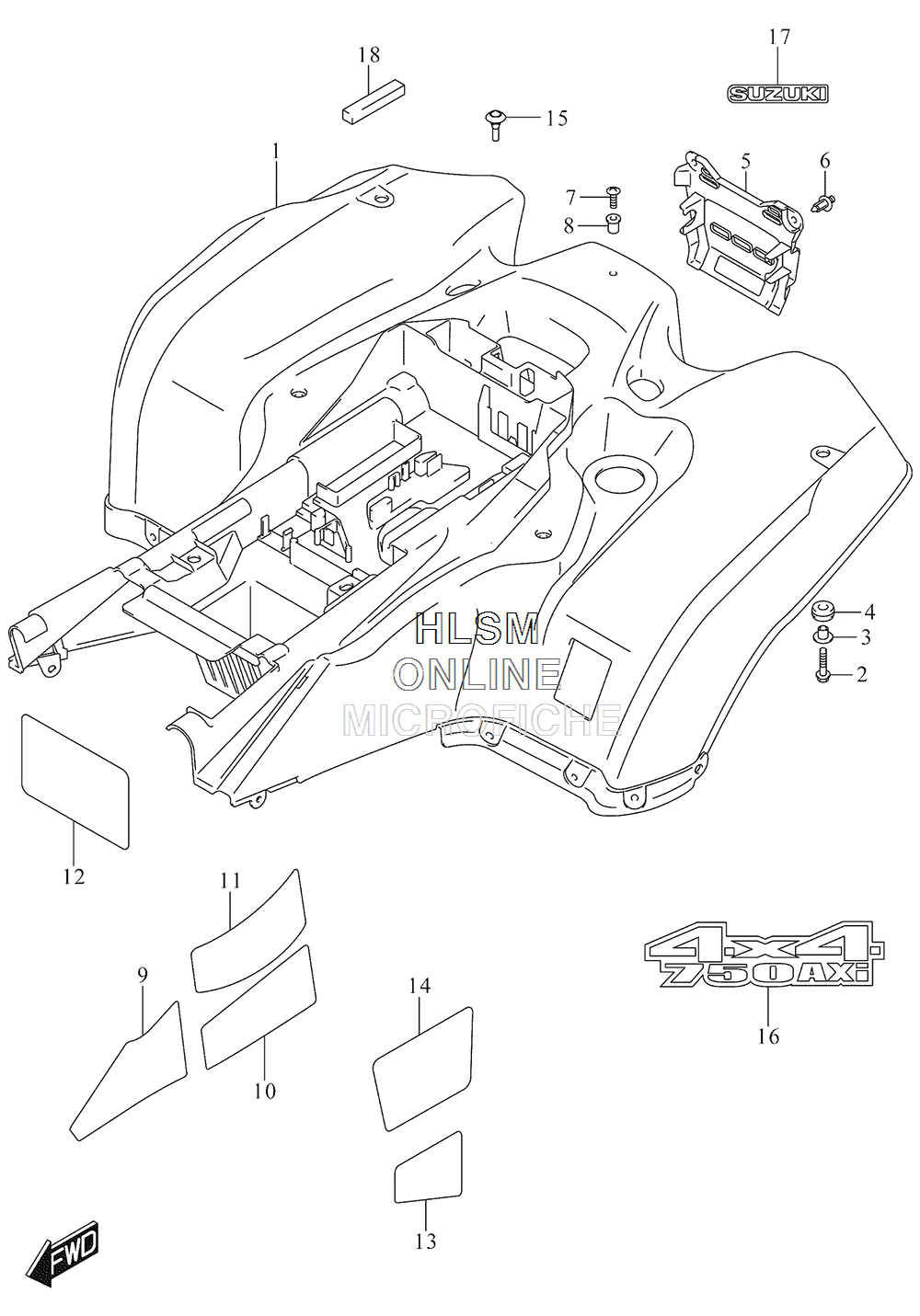

FENDER - REAR для Suzuki LT-A750XPL5 KINGQUAD 750 AXi (Power Steering) - 2015 года выпуска
-
№АртикулНазвание
-
163111-31G02-YLG FENDER, REAR (GREEN)FENDER, REAR (GREEN)
-
163111-31G02-YT9 FENDER, REAR (RED)FENDER, REAR (RED)
-
201550-0625A BOLTBOLT
-
309169-06074 WASHERWASHER
-
409320-11021 CUSHIONCUSHION
-
563251-31G00 COVER, REARCOVER, REAR
-
609409-07333 CLIPCLIP
-
702142-0520B SCREWSCREW
-
809159-05019 NUTNUT
-
963122-31G10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1063123-31G10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1163124-31G10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1263128-31G10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1363126-31G10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1463127-31G10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1593115-03G00 PLUG, REAR FENDERPLUG, REAR FENDER
-
1668171-31GE0-JLJ EMBLEM, REAR FENDEREMBLEM, REAR FENDER
-
1768171-31GA0-1ZZ EMBLEM, ''SUZUKI'' (GRAY)EMBLEM, ''SUZUKI'' (GRAY)
-
1847437-31G00 CUSHION, TOOLCUSHION, TOOL
