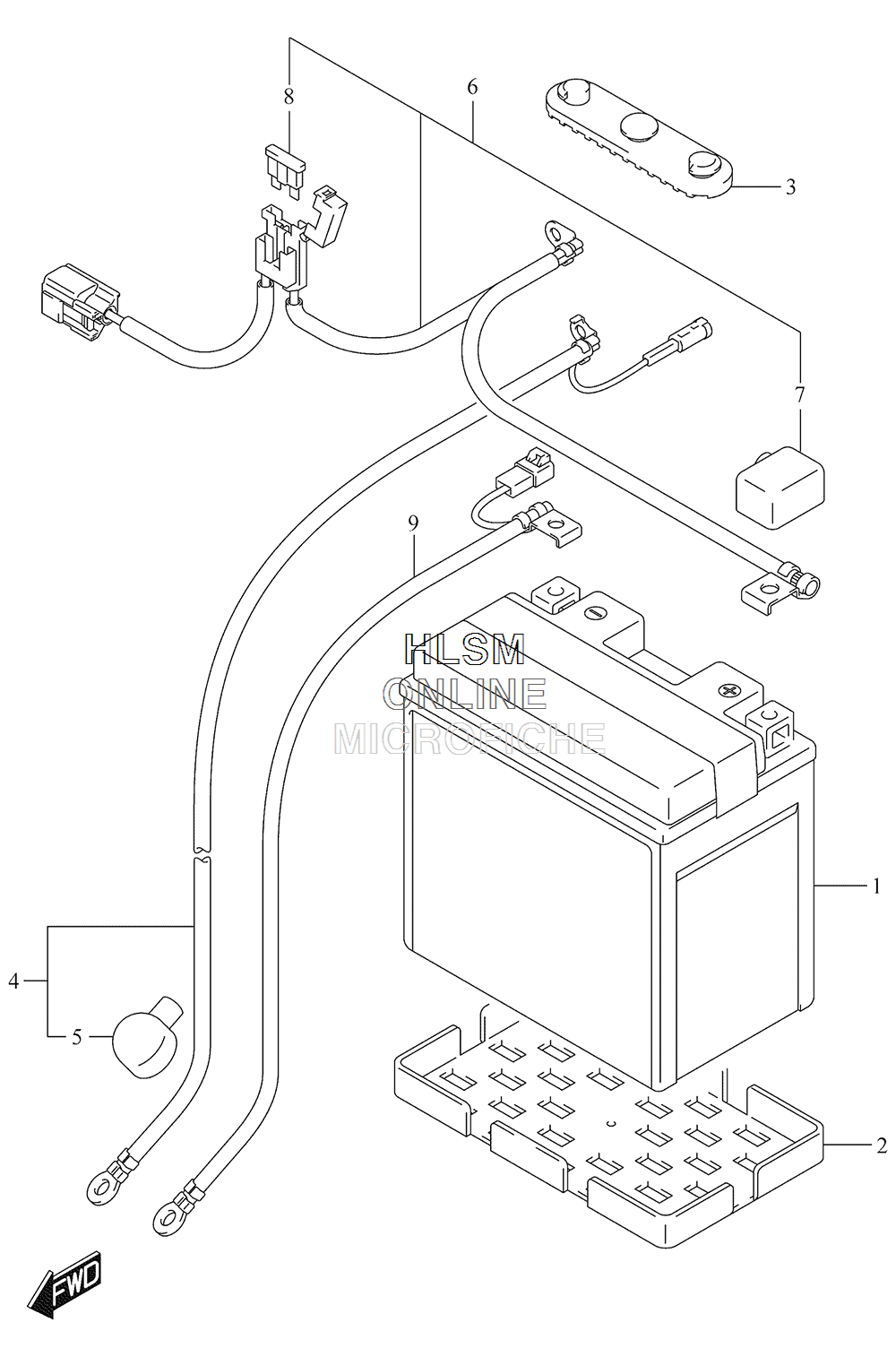

BATTERY для Suzuki LT-A750XPVL5 - 2015 года выпуска
-
№АртикулНазвание
-
133610-03G11 BATTERY ASSY (YTX20CH-BS,12V18AH)BATTERY ASSY (YTX20CH-BS,12V18AH)
-
233652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333652-07G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
433810-31G12 WIRE, STARTER MOTORWIRE, STARTER MOTOR
-
533624-27H00 CAP, STARTER MOTORCAP, STARTER MOTOR
-
633820-31G10 WIRE, BATTERY PLUSWIRE, BATTERY PLUS
-
733624-10D00 CAP, BATTERY PLUSCAP, BATTERY PLUS
-
809481-40101 FUSE (40A)FUSE (40A)
-
933860-31G10 WIRE, BATTERY MINUSWIRE, BATTERY MINUS
