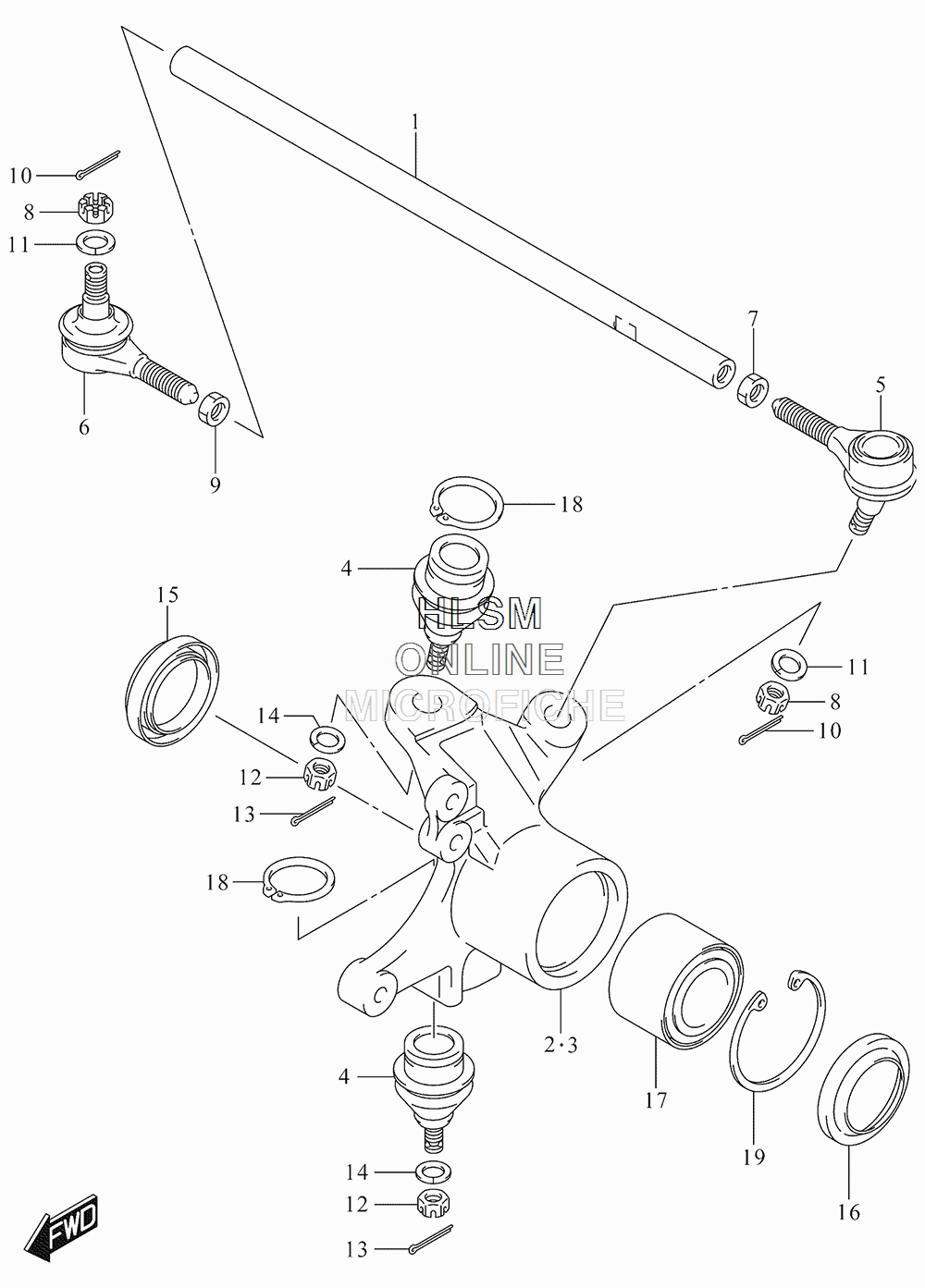

STEERING KNUCKLE для Suzuki LT-A750XPVL5 - 2015 года выпуска
-
№АртикулНазвание
-
151281-31G40 TIE ROD, STEERINGTIE ROD, STEERING
-
251231-31G20 KNUCKLE, STEERING RIGHT HANDKNUCKLE, STEERING RIGHT HAND
-
351241-31G20 KNUCKLE, STEERING LEFT HANDKNUCKLE, STEERING LEFT HAND
-
451210-31G10 END, KNUCKLE STEERINGEND, KNUCKLE STEERING
-
551260-45G00 ROD, END, RIGHT HANDROD, END, RIGHT HAND
-
651270-45G00 ROD, END, LEFT HANDROD, END, LEFT HAND
-
751283-09F00 NUT, TIE ROD (RIGHT HAND THREAD)NUT, TIE ROD (RIGHT HAND THREAD)
-
808314-4010B NUTNUT
-
909140-12035 NUTNUT
-
1004111-2020A PINPIN
-
1109160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
1208314-4010B NUTNUT
-
1304111-2020A PINPIN
-
1409160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
1509283-38012 OIL SEAL (38X55X8)OIL SEAL (38X55X8)
-
1609285-38002 OIL SEAL (38X55X6)OIL SEAL (38X55X6)
-
1751259-31G00 BEARING, FRONT HUBBEARING, FRONT HUB
-
1808331-31309 CIRCLIPCIRCLIP
-
1908331-41559 CLIPCLIP
