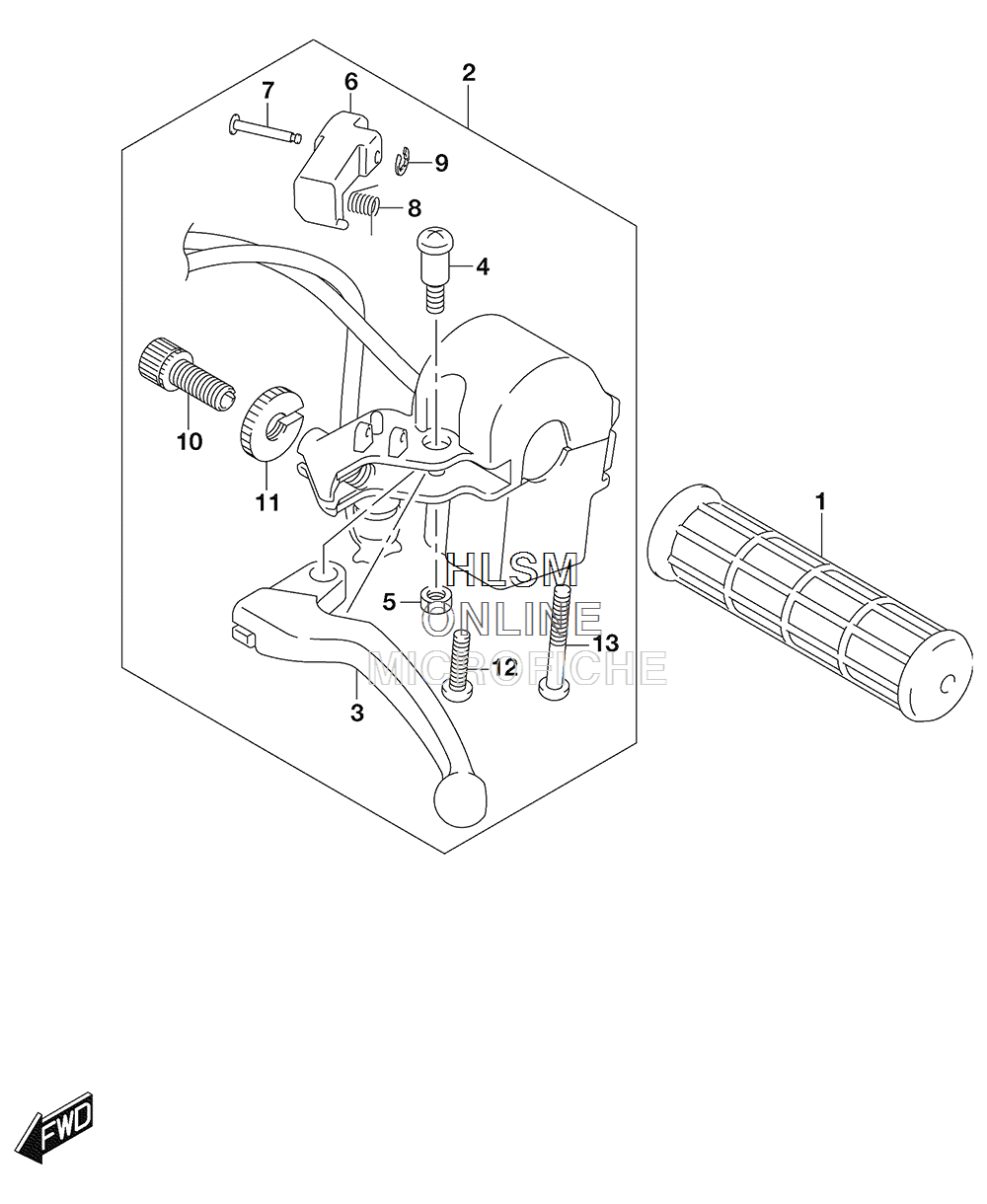

HANDLEBAR - LEFT HAND LEVER для Suzuki LT-Z50L5 QUADSPORT Z50 - 2015 года выпуска
-
№АртикулНазвание
-
157211-04600 GRIPGRIP
-
257500-43G10 LEVER ASSY, REAR BRAKELEVER ASSY, REAR BRAKE
-
357421-43G00 LEVERLEVER
-
457431-43G00 SCREWSCREW
-
508319-2105B NUTNUT
-
657791-43G00 LOCK PLATELOCK PLATE
-
757781-43G00 PINPIN
-
857134-43G00 SPRINGSPRING
-
957432-43G00 E RINGE RING
-
1057441-43G00 ADJUSTER, CABLEADJUSTER, CABLE
-
1157442-45C00 NUT, LOCKNUT, LOCK
-
1202112-0520B SCREWSCREW
-
1302112-0535B SCREWSCREW
