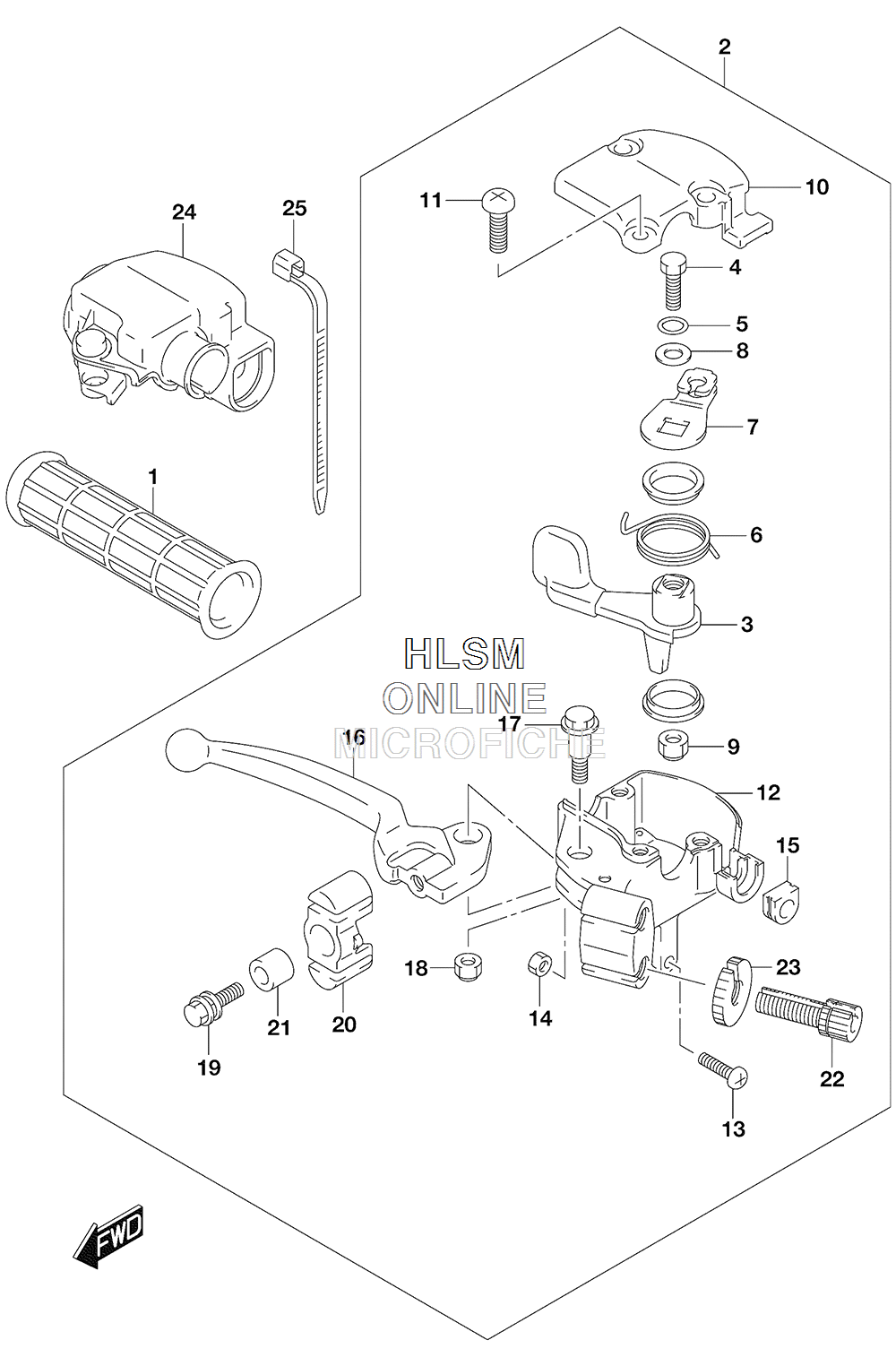

HANDLEBAR - RIGHT HAND LEVER для Suzuki LT-Z50L5 QUADSPORT Z50 - 2015 года выпуска
-
№АртикулНазвание
-
157211-04600 GRIPGRIP
-
257300-43F00 LEVER ASSY, FRONT BRAKELEVER ASSY, FRONT BRAKE
-
357112-43F00 LEVER, THROTTLELEVER, THROTTLE
-
401550-0620B BOLTBOLT
-
557136-43F00 BUSHBUSH
-
657134-43F00 SPRING, RETURNSPRING, RETURN
-
757114-43F00 ARM, THROTTLE LEVERARM, THROTTLE LEVER
-
809160-06028 WASHERWASHER
-
908319-2106B NUTNUT
-
1057121-43F00 CASE, UPPERCASE, UPPER
-
1102112-0516B SCREWSCREW
-
1257131-43F00 CASE, LOWERCASE, LOWER
-
1302112-0520B SCREWSCREW
-
1408310-0005A NUTNUT
-
1558333-04200 DUST SEALDUST SEAL
-
1657421-43F00 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
1757431-43F00 BOLT, PIVOTBOLT, PIVOT
-
1808319-2106A NUTNUT
-
1901550-0616B BOLTBOLT
-
2057396-43F00 EQUALIZEREQUALIZER
-
2157397-43F00 SPACERSPACER
-
2257441-43F00 ADJUSTER, CABLEADJUSTER, CABLE
-
2357442-43F00 NUTNUT
-
2457339-43G00 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
2509407-14407 CLAMP (L:145)CLAMP (L:145)
