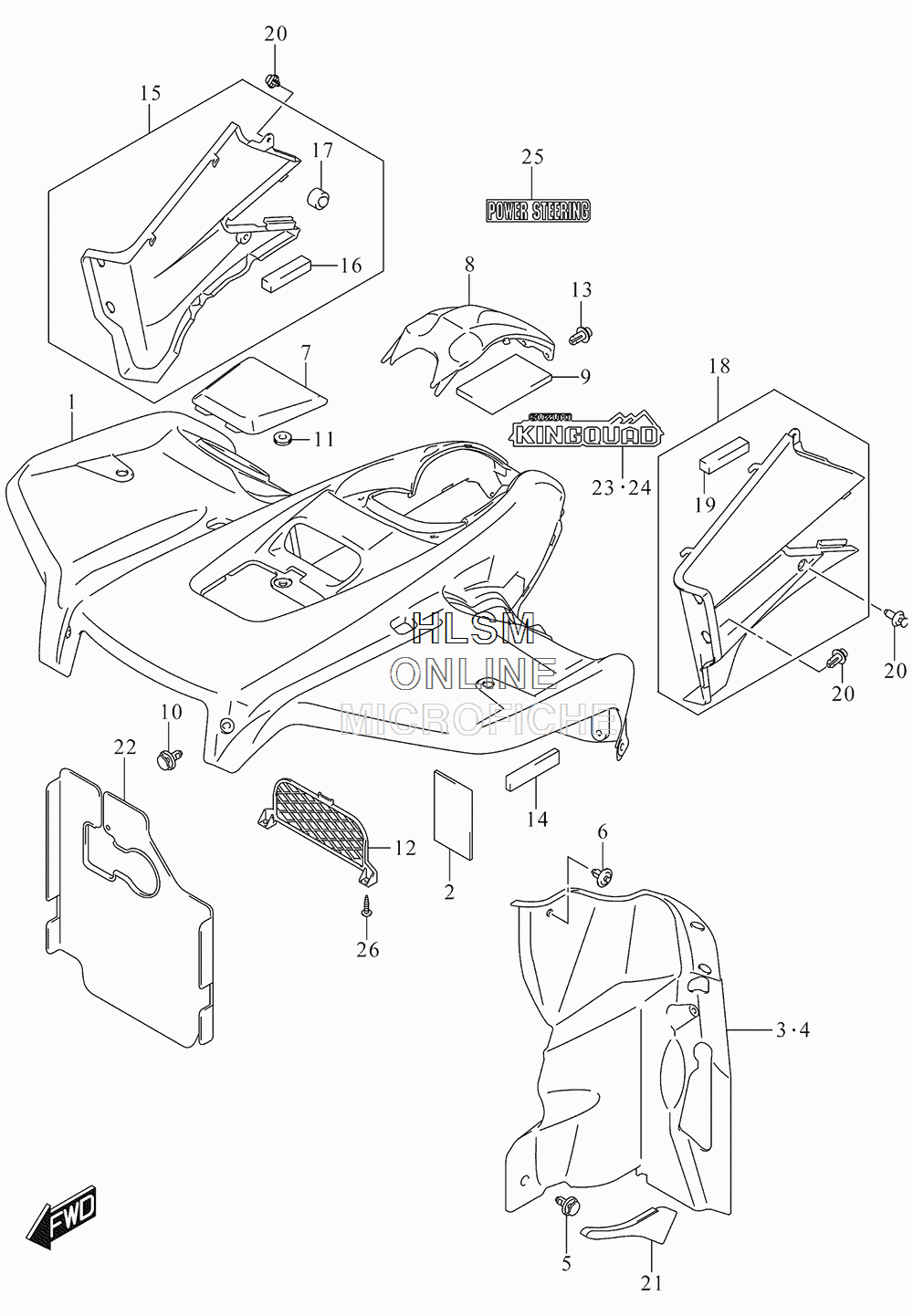

FENDER - FRONT для Suzuki LTA500XPZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
153111-31GC3-PHW FENDER, FRONT (CAMOUFLAGE)FENDER, FRONT (CAMOUFLAGE)
-
153111-31G50-PNB FENDER, FRONT (GLAY)FENDER, FRONT (GLAY)
-
253132-31GA0 CUSHION, FRONT FENDER NO.2CUSHION, FRONT FENDER NO.2
-
353411-31G02 MUDFLAP, INNER RIGHT HANDMUDFLAP, INNER RIGHT HAND
-
453421-31G01 MUDFLAP, INNER LEFT HANDMUDFLAP, INNER LEFT HAND
-
509409-08335 CLIPCLIP
-
609409-07333 CLIPCLIP
-
753341-31GC3-PHW LID (CAMOUFLAGE)LID (CAMOUFLAGE)
-
753341-31G52-PNB LID (GLAY)LID (GLAY)
-
853119-31GC2-PHW FENDER, CENTER (CAMOUFLAGE)FENDER, CENTER (CAMOUFLAGE)
-
853119-31G50-PNB FENDER, CENTER (GLAY)FENDER, CENTER (GLAY)
-
953131-31GA0 CUSHION, FRONT FENDER NO.1CUSHION, FRONT FENDER NO.1
-
1009409-08335 CLIPCLIP
-
1109320-08018 CUSHIONCUSHION
-
1253212-31G01 COVER, INNERCOVER, INNER
-
1309409-08335 CLIPCLIP
-
1453113-31H00 CUSHION, COVER SIDECUSHION, COVER SIDE
-
1553110-31G10-291 COVER, SIDE RIGHT HAND (BLACK)COVER, SIDE RIGHT HAND (BLACK)
-
1653146-05G00 .CUSHION, COVER SIDE RIGHT HAND.CUSHION, COVER SIDE RIGHT HAND
-
1709321-10019 .CUSHION.CUSHION
-
1853110-31G20-291 COVER, SIDE LEFT HAND (BLACK)COVER, SIDE LEFT HAND (BLACK)
-
1953146-05G00 .CUSHION, COVER SIDE LEFT HAND.CUSHION, COVER SIDE LEFT HAND
-
2009409-08335 CLIPCLIP
-
2153116-31G00 MUDGUARD, SIDE RIGHT HANDMUDGUARD, SIDE RIGHT HAND
-
2253117-31G00 COVER, CENTERCOVER, CENTER
-
2368151-31GC0-EFG EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
2468152-31GC0-EFG EMBLEM, LEFT HANDEMBLEM, LEFT HAND
-
2568151-31GD0-CT5 EMBLEM, POWER-STEERING (SILVER/BLACK)EMBLEM, POWER-STEERING (SILVER/BLACK)
-
2603541-0516A SCREWSCREW
