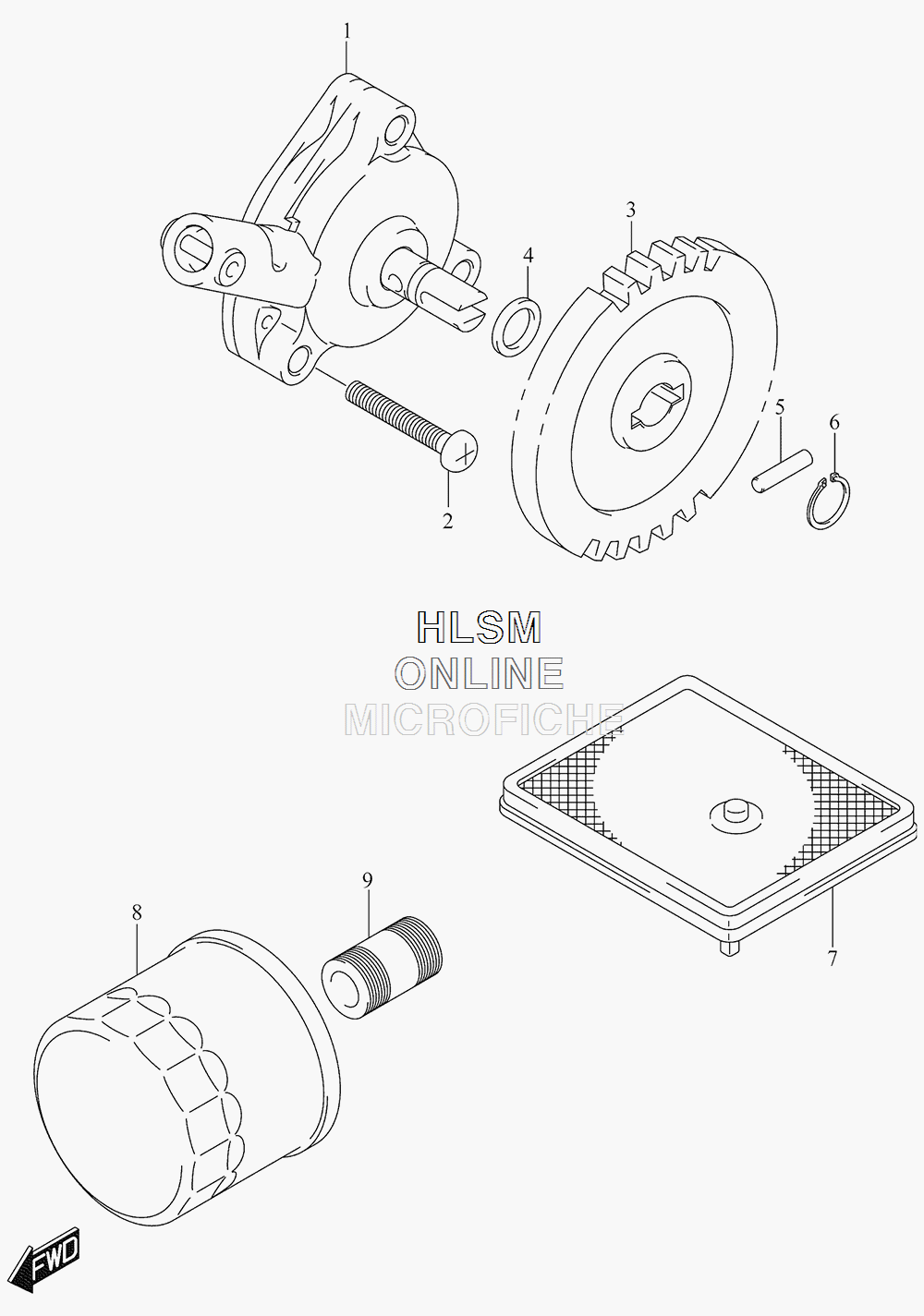

OIL PUMP для Suzuki LTA500XPZL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
116400-11H00 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
209125-06119 SCREW (6X30)SCREW (6X30)
-
316331-31H00 SPROCKET, OIL PUMP DRIVE (NT:31)SPROCKET, OIL PUMP DRIVE (NT:31)
-
409181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
509261-04009 PIN (4X15.8)PIN (4X15.8)
-
608331-31109 CIRCLIPCIRCLIP
-
716520-32E00 STRAINER, OILSTRAINER, OIL
-
816510-07J00 FILTER ASSY, ENG OILFILTER ASSY, ENG OIL
-
916591-06B01 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
