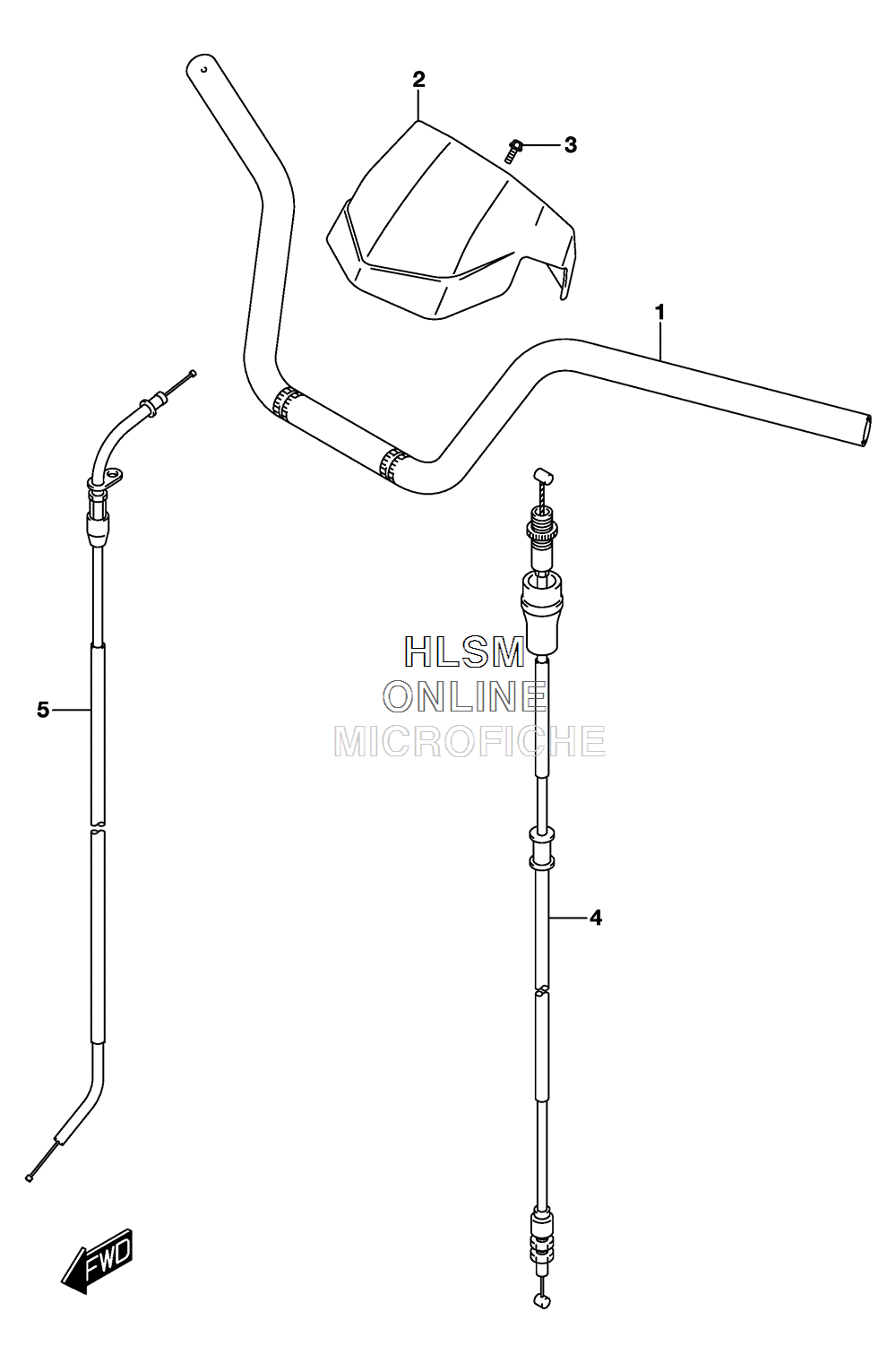

HANDLEBAR W/ CABLES для Suzuki KINGQUAD 400 ASI [LTA400FL6 ] - 2016 года выпуска
-
№АртикулНазвание
-
156111-38F20 HANDLEBARHANDLEBAR
-
256171-27H20 COVER, STEERING HEADCOVER, STEERING HEAD
-
309111-06054 BOLT (6X14.6)BOLT (6X14.6)
-
458300-27H10 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
558410-27H10 CABLE, STARTERCABLE, STARTER
