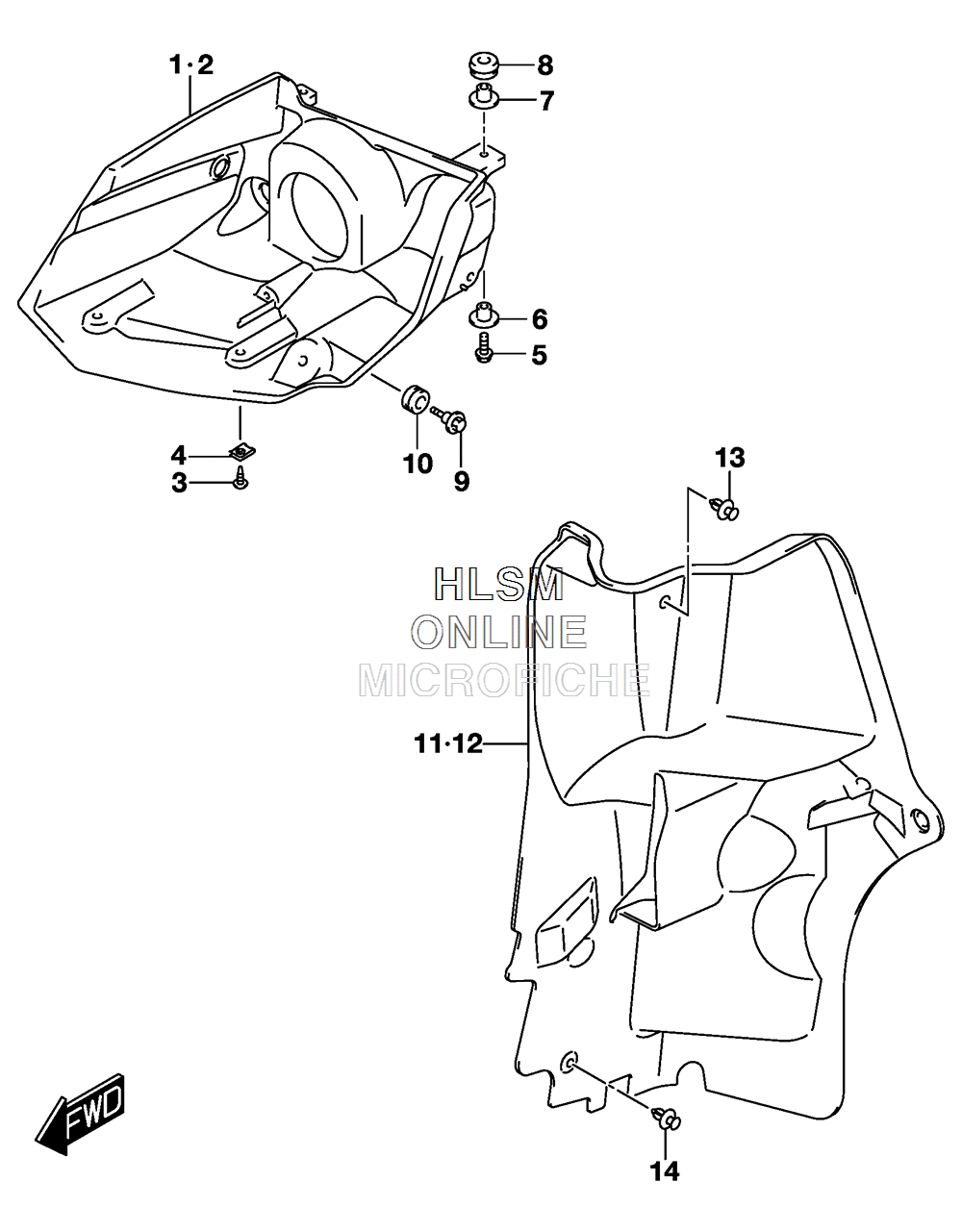

HEADLAMP HOUSING для Suzuki KINGQUAD 400 ASI [LTA400FL6 ] - 2016 года выпуска
-
№АртикулНазвание
-
153281-27H01-291 HOUSING, FRONT LAMP RH (BLACK)HOUSING, FRONT LAMP RH (BLACK)
-
253284-27H01-291 HOUSING, FRONT LAMP LH (BLACK)HOUSING, FRONT LAMP LH (BLACK)
-
303541-0516A SCREWSCREW
-
409148-05038 NUTNUT
-
501550-0630A BOLTBOLT
-
609169-06073 WASHERWASHER
-
709169-06074 WASHERWASHER
-
809320-11021 CUSHIONCUSHION
-
909139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1009320-10501 CUSHIONCUSHION
-
1153411-27H00 MUDFLAP, INNER RHMUDFLAP, INNER RH
-
1253421-27H00 MUDFLAP, INNER LHMUDFLAP, INNER LH
-
1309409-07333 CLIPCLIP
-
1409409-08335 CLIPCLIP
