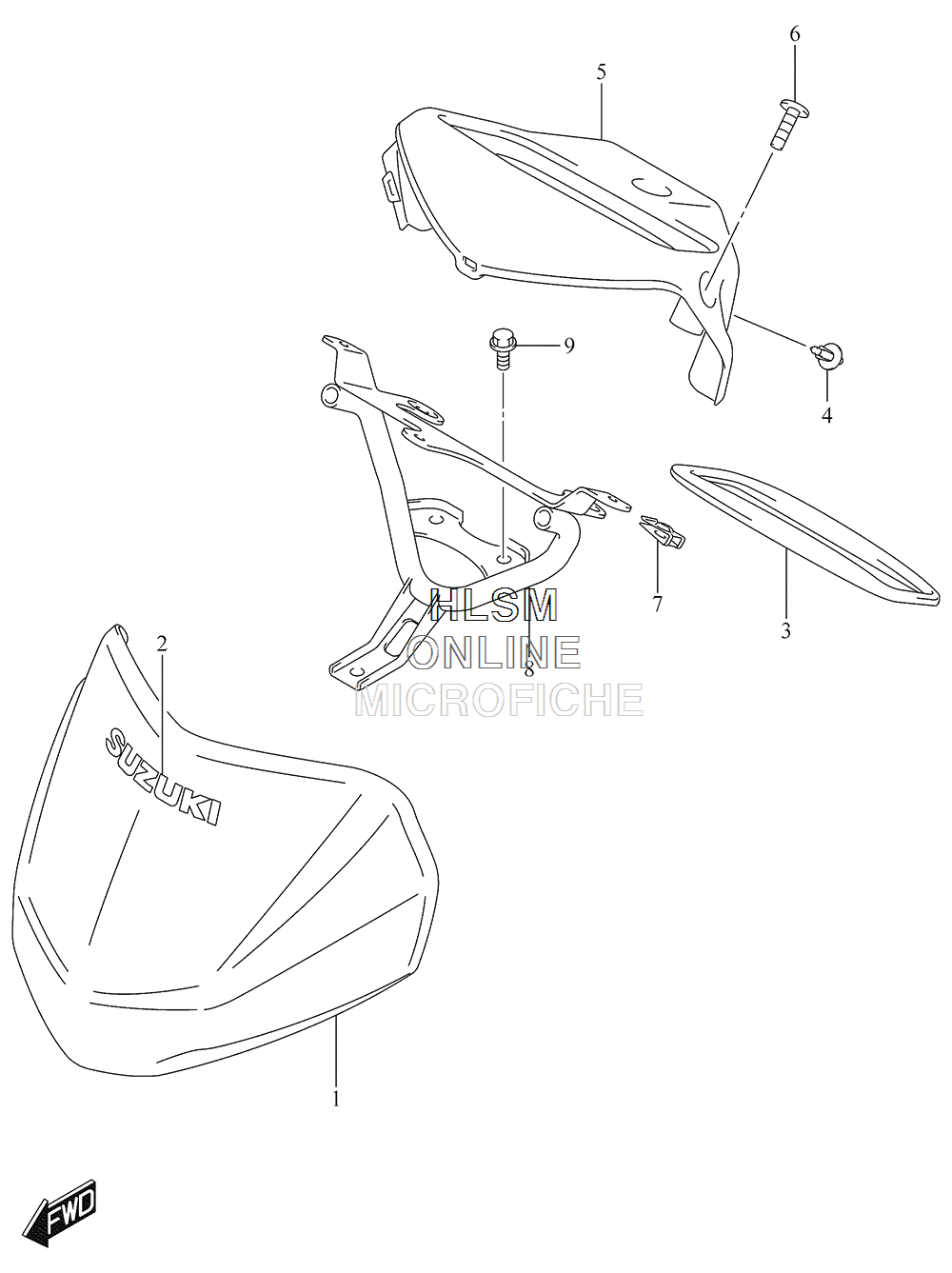

HANDLE COVER для Suzuki KINGQUAD 750 AXI [LTA750XZL6] - 2016 года выпуска
-
№АртикулНазвание
-
156311-31GB0-PHW COVER, FRONT (CAMOUFLAGE)COVER, FRONT (CAMOUFLAGE)
-
268171-31GA0-1ZZ EMBLEM, SUZUKI (GRAY)EMBLEM, SUZUKI (GRAY)
-
356317-31G00 MOLDING, HANDLE COVERMOLDING, HANDLE COVER
-
409409-07333 CLIPCLIP
-
556321-11H00-291 COVER, HANDLE REAR (BLACK)COVER, HANDLE REAR (BLACK)
-
603141-0525A SCREWSCREW
-
709148-05038 NUTNUT
-
856160-11H00 BRACE, COVERBRACE, COVER
-
901550-0812A BOLTBOLT
