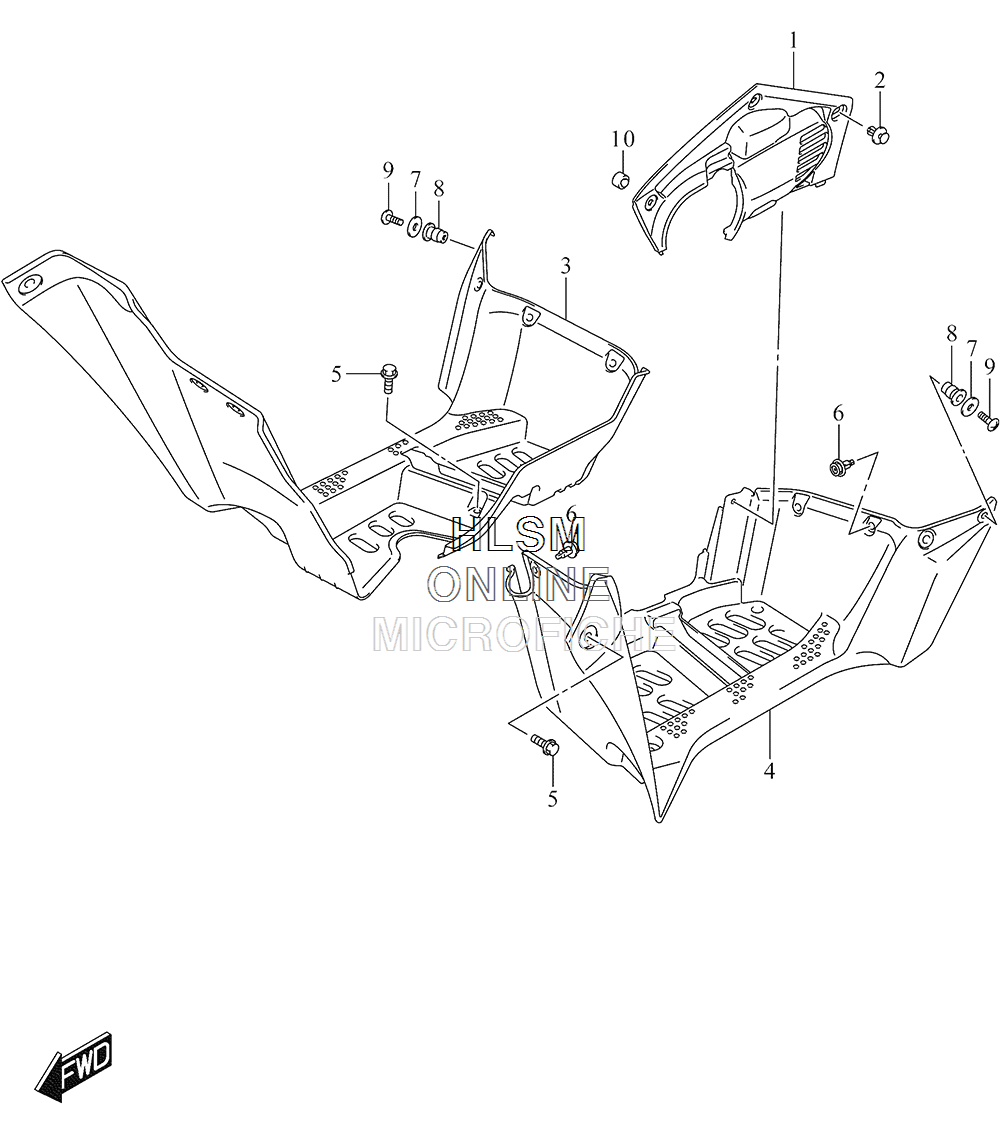

MUDGUARD для Suzuki KINGQUAD 750 AXI [LTA750XZL6] - 2016 года выпуска
-
№АртикулНазвание
-
163342-31GA0-291 LID (BLACK)LID (BLACK)
-
209409-08335 CLIPCLIP
-
363331-31G01-291 MUDGUARD, FOOTREST RIGHT HAND (BLACK)MUDGUARD, FOOTREST RIGHT HAND (BLACK)
-
463341-31G01-291 MUDGUARD, FOOTREST LEFT HAND (BLACK)MUDGUARD, FOOTREST LEFT HAND (BLACK)
-
509111-06088 BOLT (6X13.5)BOLT (6X13.5)
-
609409-10306 CLIPCLIP
-
709160-05046 WASHER (5.5X20X1.4)WASHER (5.5X20X1.4)
-
809159-05019 NUTNUT
-
902142-0520B SCREWSCREW
-
1009321-10019 CUSHIONCUSHION
