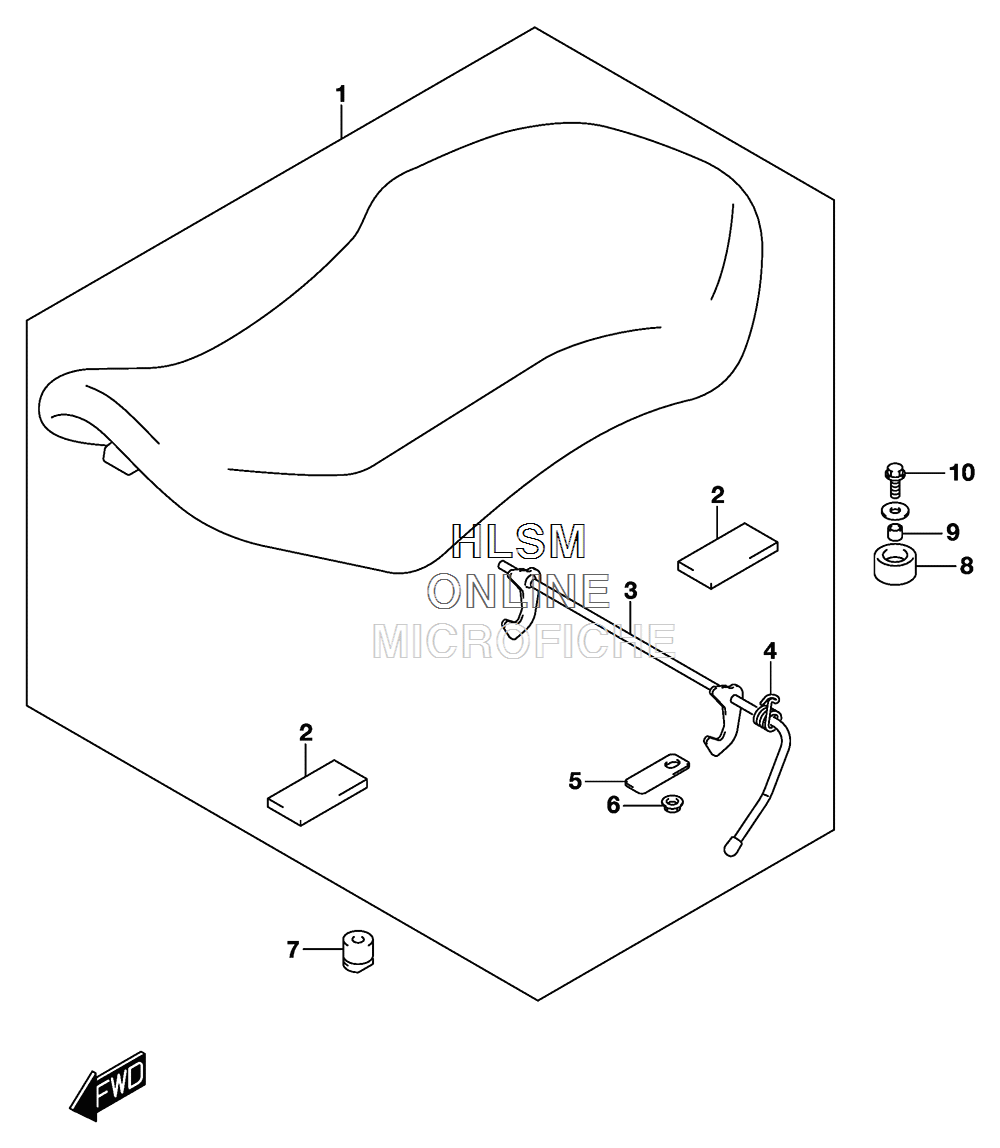

SEAT для Suzuki QUADSPORT Z50 [LTZ50L6] - 2016 года выпуска
-
№АртикулНазвание
-
145100-43G10-U4W SEAT ASSY (BLUE)SEAT ASSY (BLUE)
-
245146-43G00 ...CUSHION...CUSHION
-
345210-43G00 ...CLAMP, SEAT LOCK...CLAMP, SEAT LOCK
-
445135-43F00 ...SPRING, SEAT LOCK...SPRING, SEAT LOCK
-
545222-43G00 ...PLATE, SEAT LOCK RH...PLATE, SEAT LOCK RH
-
608316-1006B ...NUT...NUT
-
745141-43G00 CUSHION, SEAT MOUNT FRONTCUSHION, SEAT MOUNT FRONT
-
845141-09F00 CUSHION, SEAT MOUNT REARCUSHION, SEAT MOUNT REAR
-
909180-06261 SPACERSPACER
-
1001550-0616B BOLTBOLT
