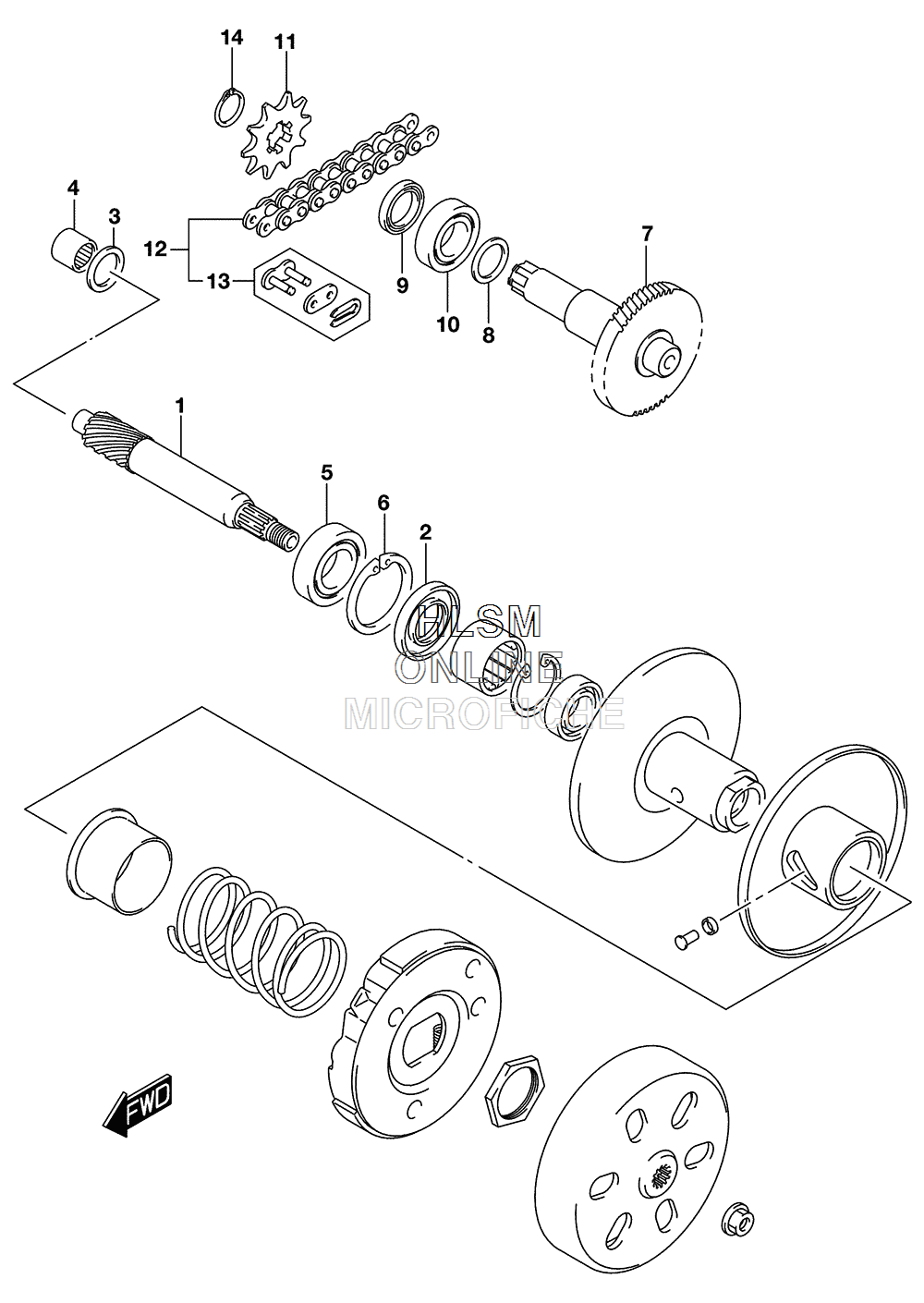

TRANSMISSION (2) для Suzuki QUADSPORT Z50 [LTZ50L6] - 2016 года выпуска
-
№АртикулНазвание
-
124121-22G00 SHAFT, COUNTER (NT:11)SHAFT, COUNTER (NT:11)
-
209283-17016 SEAL, COUNTER SHAFT OIL (17X40X5.0)SEAL, COUNTER SHAFT OIL (17X40X5.0)
-
309181-13002 WASHER, COUNTER SHAFT THR, R (13X22X0.5)WASHER, COUNTER SHAFT THR, R (13X22X0.5)
-
409263-12024 BEARING, COUNTER SHAFT, R (12X16X10)BEARING, COUNTER SHAFT, R (12X16X10)
-
508110-62030 BEARING, COUNTER SHAFT, LBEARING, COUNTER SHAFT, L
-
608331-41406 CIRCLIP, COUNTER SHFT BRG, LCIRCLIP, COUNTER SHFT BRG, L
-
724131-22G10 SHAFT, DRIVE (NT:47)SHAFT, DRIVE (NT:47)
-
809181-17139 WASHER, DRIVE SHAFT THRUST (17X24X1.0)WASHER, DRIVE SHAFT THRUST (17X24X1.0)
-
909283-17026 SEAL, DRIVE SHAFT OIL (17X27X6)SEAL, DRIVE SHAFT OIL (17X27X6)
-
1008110-62030 BEARING, DRIVE SHAFT, RBEARING, DRIVE SHAFT, R
-
1127511-43G00 SPROCKET, ENGINE (NT:10)SPROCKET, ENGINE (NT:10)
-
1227600-22G00-082 CHAIN ASSY (DID415S)CHAIN ASSY (DID415S)
-
1327620-22G00 ...JOINT SET, CHAIN...JOINT SET, CHAIN
-
1408331-31166 CIRCLIP, ENGINE SPROCKECIRCLIP, ENGINE SPROCKE
