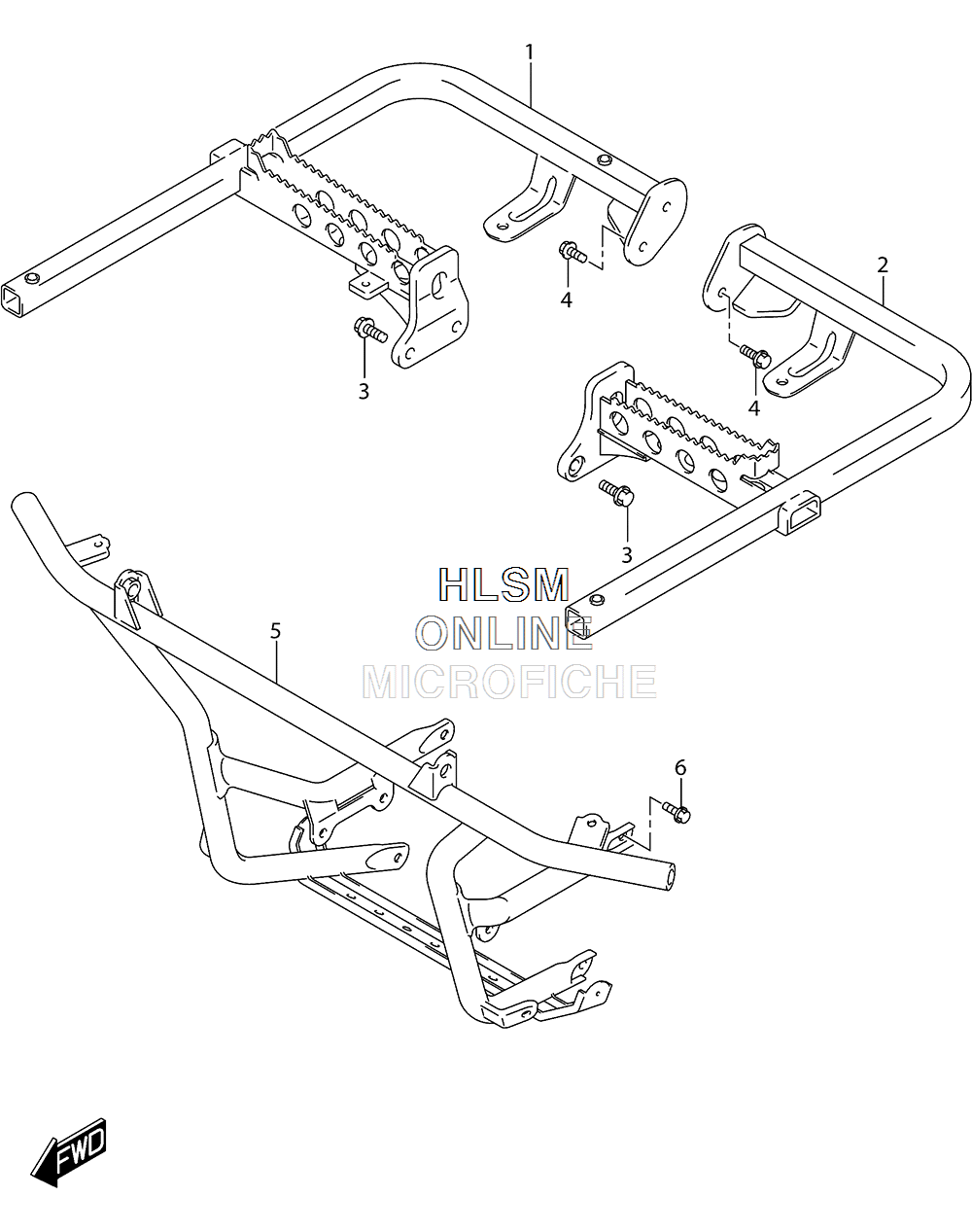

FOOTREST W/ BUMPER для Suzuki KINGQUAD 500AXi [LT-A500X] - 2017 года выпуска
-
№АртикулНазвание
-
143510-11HA0 FOOTREST, FRONT RIGHT HANDFOOTREST, FRONT RIGHT HAND
-
243520-11HA0 FOOTREST, FRONT LEFT HANDFOOTREST, FRONT LEFT HAND
-
309103-10378 BOLT (10X25)BOLT (10X25)
-
409103-08286 BOLT (8X20)BOLT (8X20)
-
543990-31GB0 GRIP, FRONTGRIP, FRONT
-
609103-08283 BOLT (8X16)BOLT (8X16)
