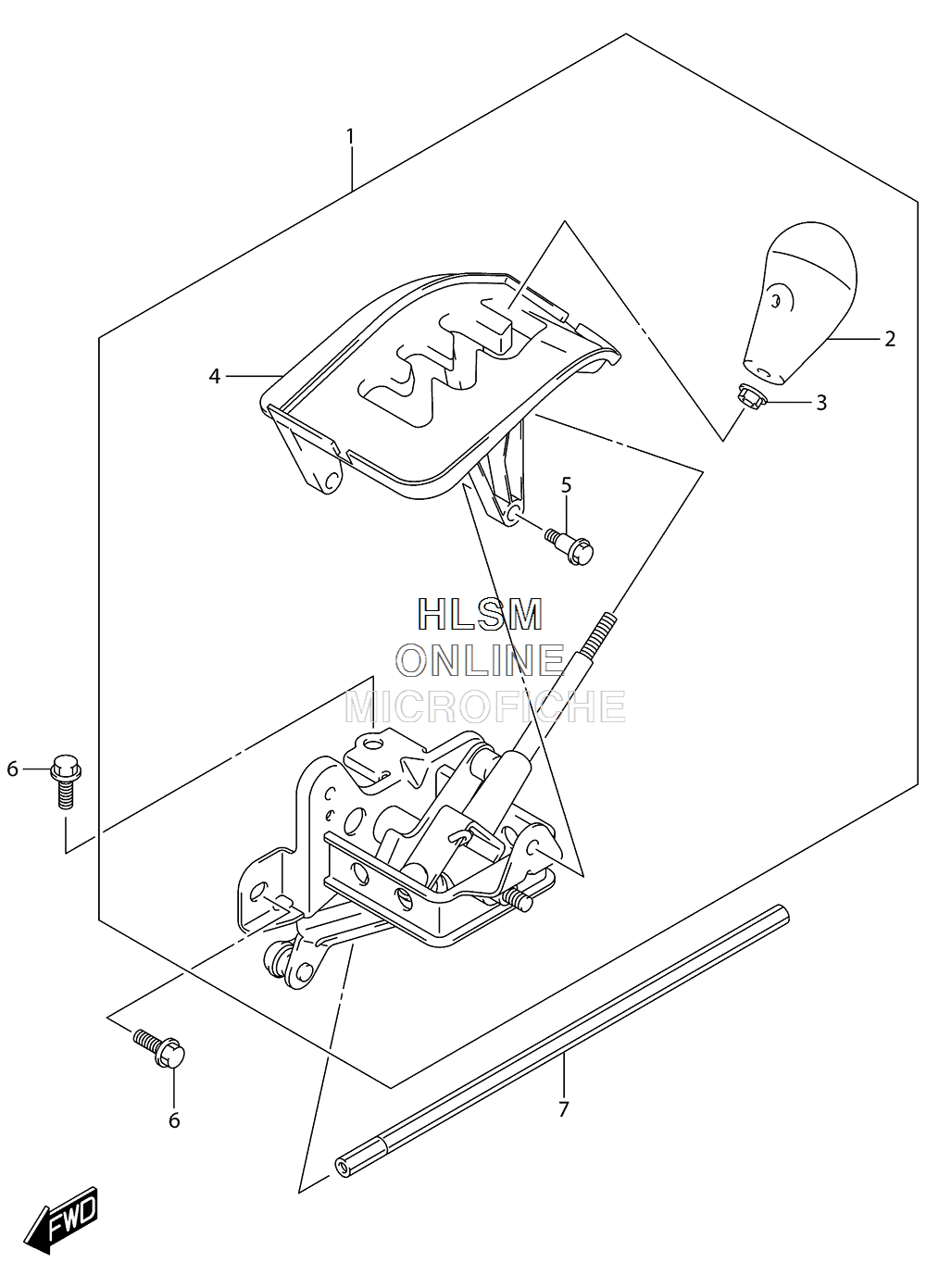

SHIFT LEVER для Suzuki KINGQUAD 500AXi [LT-A500X] - 2017 года выпуска
-
№АртикулНазвание
-
157800-31G12 LEVER ASSY, TRANSMISSIONLEVER ASSY, TRANSMISSION
-
257830-27H00 ...KNOB, T/M LEVER...KNOB, T/M LEVER
-
308316-1008B ...NUT...NUT
-
457940-31G10 ...COVER, T/M LEVER...COVER, T/M LEVER
-
509111-06243 ...BOLT (6X20)...BOLT (6X20)
-
601550-0816A BOLTBOLT
-
757911-31H00 ROD, LEVERROD, LEVER
