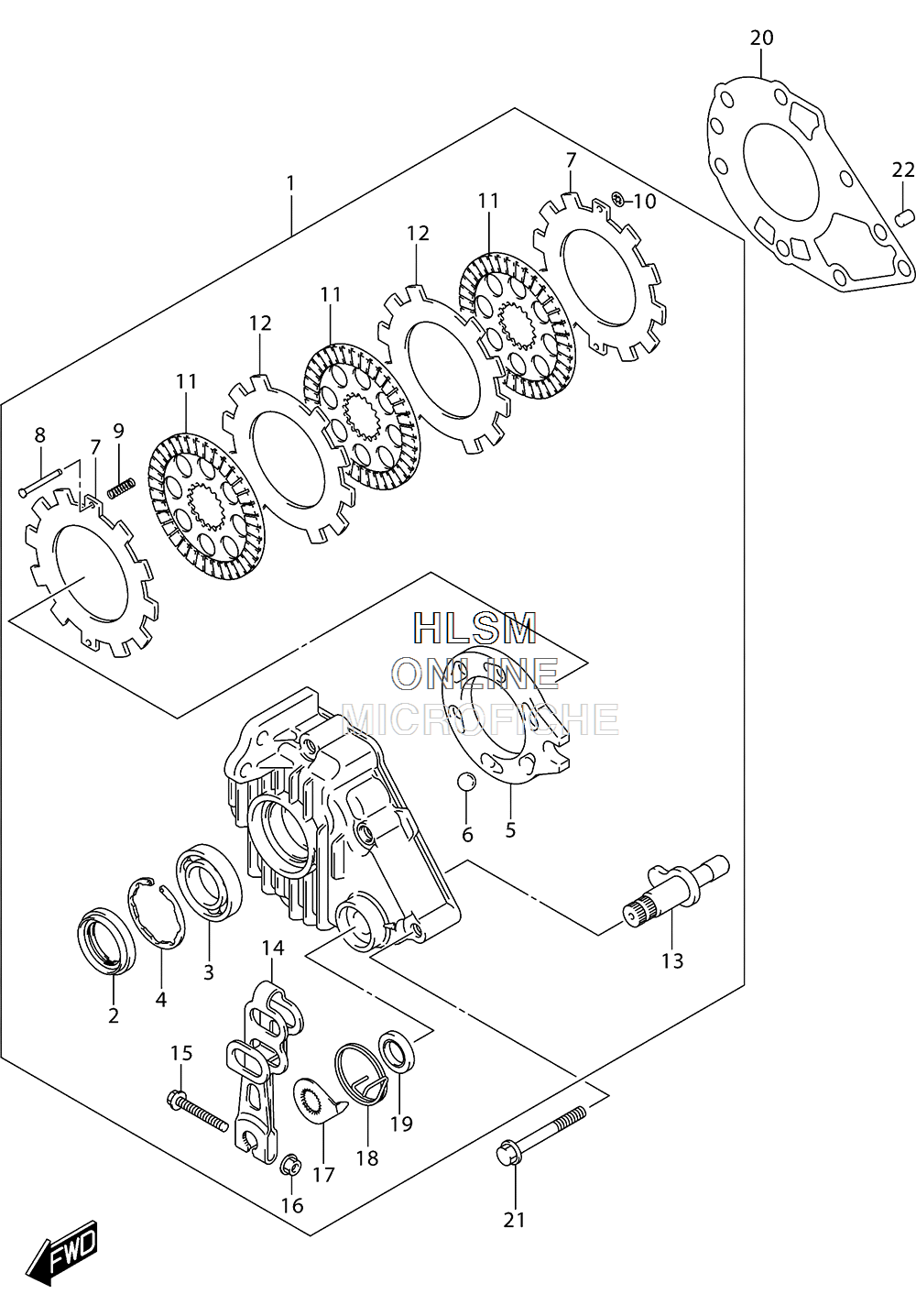

BRAKE - REAR для Suzuki KINGQUAD 750AXi POWER STEERING [LT-A750XP] - 2017 года выпуска
-
№АртикулНазвание
-
164200-31G20 BRAKE ASSY, REARBRAKE ASSY, REAR
-
209283-34008 ...OIL SEAL (34X52X9)...OIL SEAL (34X52X9)
-
308113-60050 ...BEARING...BEARING
-
464215-31G00 ...CIRCLIP, REAR BRAKE CASE...CIRCLIP, REAR BRAKE CASE
-
564292-31G00 ...PLATE, PRESSURE...PLATE, PRESSURE
-
664295-31G00 ...BALL...BALL
-
764293-31G00 ...PLATE, SIDE...PLATE, SIDE
-
864297-31G00 ...PIN, SIDE PLATE...PIN, SIDE PLATE
-
964296-31G00 ...SPRING, SIDE PLATE...SPRING, SIDE PLATE
-
1064298-31G00 ...NUT, SIDE PLATE...NUT, SIDE PLATE
-
1164420-31G00 ...PLATE, FRICTION...PLATE, FRICTION
-
1264294-31G00 ...PLATE, SEPARATOR...PLATE, SEPARATOR
-
1364440-31G01 ...CAM, REAR BRAKE...CAM, REAR BRAKE
-
1464451-31G10 ...LEVER, REAR BRAKE CAM...LEVER, REAR BRAKE CAM
-
1564455-31G00 ...BOLT, REAR BRAKE CAM LEVER...BOLT, REAR BRAKE CAM LEVER
-
1664456-31G00 ...NUT, REAR BRAKE CAM LEVER...NUT, REAR BRAKE CAM LEVER
-
1764492-31G00 ...PLATE, BRAKE LINING INDICATOR...PLATE, BRAKE LINING INDICATOR
-
1864484-31G00 ...SPRING, REAR BRAKE CAM LEVER...SPRING, REAR BRAKE CAM LEVER
-
1964443-31G01 ...SEAL, REAR BRAKE CAM...SEAL, REAR BRAKE CAM
-
2064124-31G00 GASKET, REAR BRAKE CASEGASKET, REAR BRAKE CASE
-
2109103-08332 BOLT (8X53)BOLT (8X53)
-
2209261-09002 PIN (9X10)PIN (9X10)
