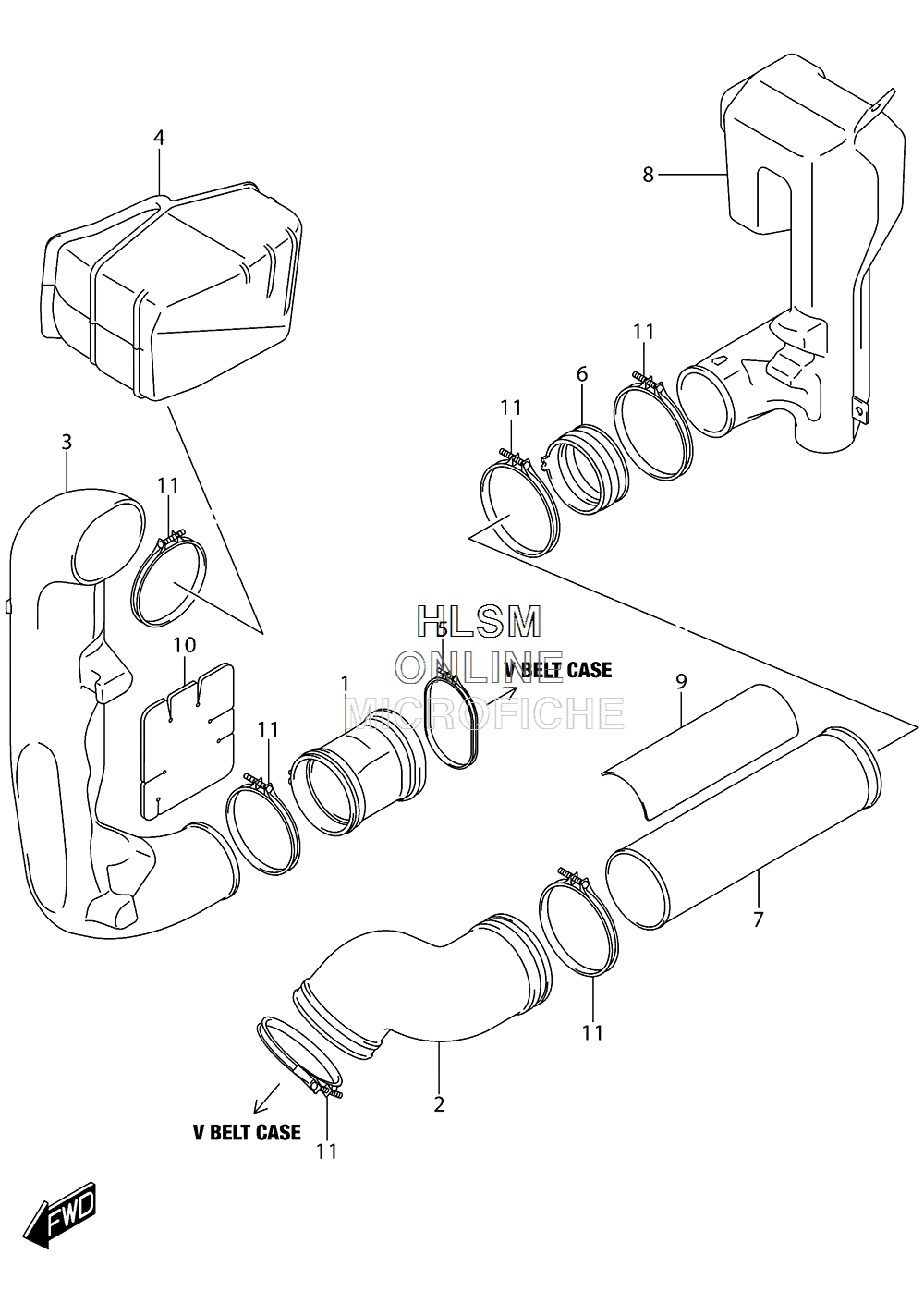

COOLING DUCTS для Suzuki KINGQUAD 750AXi POWER STEERING [LT-A750XP] - 2017 года выпуска
-
№АртикулНазвание
-
111385-31G00 CONNECTOR, CLG DUCT FRCONNECTOR, CLG DUCT FR
-
211386-31G00 CONNECTOR, CLG DUCT RRCONNECTOR, CLG DUCT RR
-
311387-31G00 DUCT, BELT CLG FRONT NO.1DUCT, BELT CLG FRONT NO.1
-
411388-31G10 DUCT, BELT CLG FRONT NO.2DUCT, BELT CLG FRONT NO.2
-
511389-09F50 CLAMP, BELT CLG DUCT FRONT NO.1CLAMP, BELT CLG DUCT FRONT NO.1
-
611397-31G00 CONNECTOR, CLG DUCT REAR NO.2CONNECTOR, CLG DUCT REAR NO.2
-
711398-31G00 DUCT, BELT CLG REAR NO.1DUCT, BELT CLG REAR NO.1
-
811399-31G00 DUCT, BELT CLG REAR NO.2DUCT, BELT CLG REAR NO.2
-
911487-31G30 SHIELD, BELT CLG DUCT RRSHIELD, BELT CLG DUCT RR
-
1011488-31G30 SHIELD, BELT CLG DUCT FRSHIELD, BELT CLG DUCT FR
-
1109402-82208 CLAMPCLAMP
