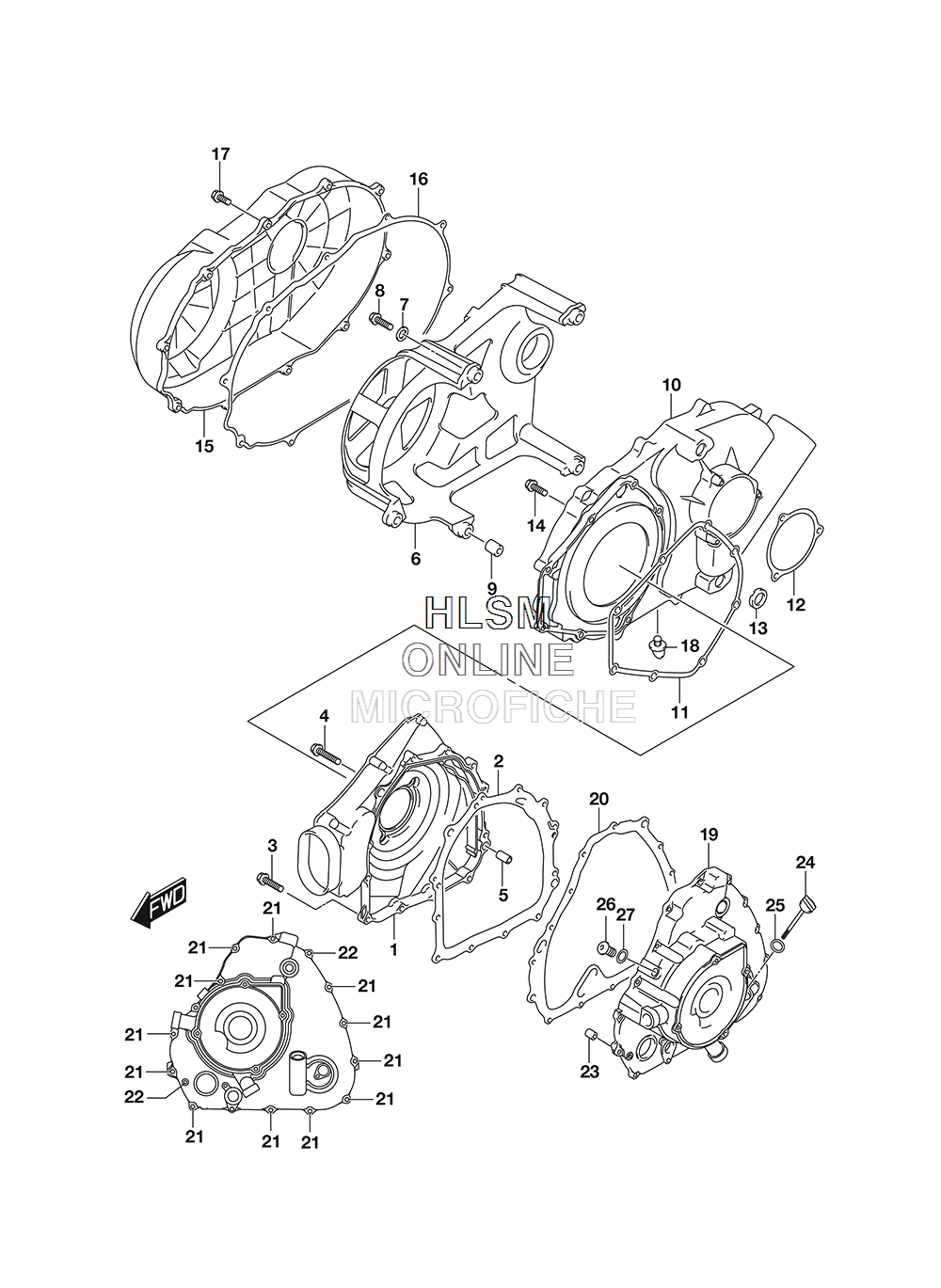

CRANKCASE COVER для Suzuki LT-A500XPL8 KINGQUAD 500AXI POWER STEERING - 2018 года выпуска
-
№АртикулНазвание
-
111341-11H00 COVER, CLUTCHCOVER, CLUTCH
-
211482-11H00 GASKETGASKET
-
301547-0625A BOLTBOLT
-
401547-0635A BOLTBOLT
-
504211-11169 PINPIN
-
611342-11H00 HOUSING, BELT BEARINGHOUSING, BELT BEARING
-
711488-11H00 GASKET, V-BELT BEARING HOUSINGASKET, V-BELT BEARING HOUSIN
-
801547-0635A BOLTBOLT
-
904211-09149 PINPIN
-
1011370-11H00 COVER, BELT INNERCOVER, BELT INNER
-
1111484-11H00 GASKET, V-BELT COVER INNER FRONTGASKET, V-BELT COVER INNER FRONT
-
1211485-31G00 GASKET, V-BELT COVER INNER REARGASKET, V-BELT COVER INNER REAR
-
1311487-11H00 GASKET, V-BELT COVER INNER HO HOLEGASKET, V-BELT COVER INNER HO HOLE
-
1401547-0625A BOLTBOLT
-
1511380-11H00 COVER, BELT OUTERCOVER, BELT OUTER
-
1611486-11H00 GASKET, V-BELT COVER OUTERGASKET, V-BELT COVER OUTER
-
1701547-0625A BOLTBOLT
-
1811375-31G00 PLUG, WATER DRAINPLUG, WATER DRAIN
-
1911350-11H10 COVER, MAGNETOCOVER, MAGNETO
-
2011483-11H00 GASKETGASKET
-
2101547-0625A BOLTBOLT
-
2201547-0635A BOLTBOLT
-
2304211-11169 PINPIN
-
2411971-09F60 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
2509280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
2609248-14012 PLUG (14X12)PLUG (14X12)
