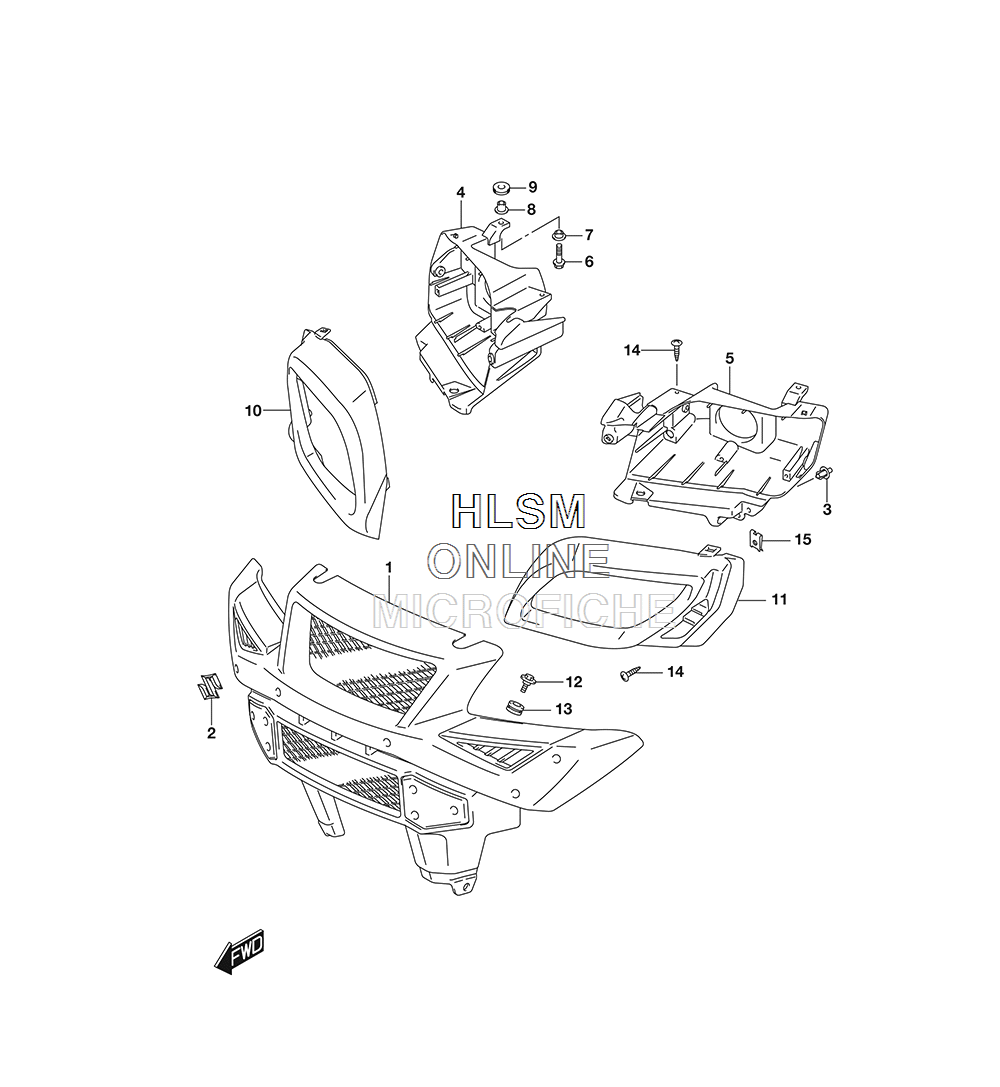

GRILLE - FRONT (CALIF.) для Suzuki LT-A500XPL8 KINGQUAD 500AXI POWER STEERING - 2018 года выпуска
-
№АртикулНазвание
-
153118-31GA1-291 GRILLE, FRONT (291 - BLACK)GRILLE, FRONT (291 - BLACK)
-
268151-03G40 EMBLEM, "S"EMBLEM, "S"
-
309409-08335 CLIPCLIP
-
453281-31G01-291 HOUSING, FRONT (RH) (291 - BLACK)HOUSING, FRONT (RH) (291 - BLACK)
-
553284-31G01-291 HOUSING, FRONT (LH) (291 - BLACK)HOUSING, FRONT (LH) (291 - BLACK)
-
601550-0630A BOLTBOLT
-
709169-06073 WASHERWASHER
-
809169-06074 WASHERWASHER
-
909320-11021 CUSHIONCUSHION
-
1053282-31G01-291 COVER, (RH) (291 - BLACK)COVER, (RH) (291 - BLACK)
-
1153283-31G01-291 COVER, (LH) (291 - BLACK)COVER, (LH) (291 - BLACK)
-
1209139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1309320-10043 CUSHIONCUSHION
-
1403541-0516A SCREWSCREW
