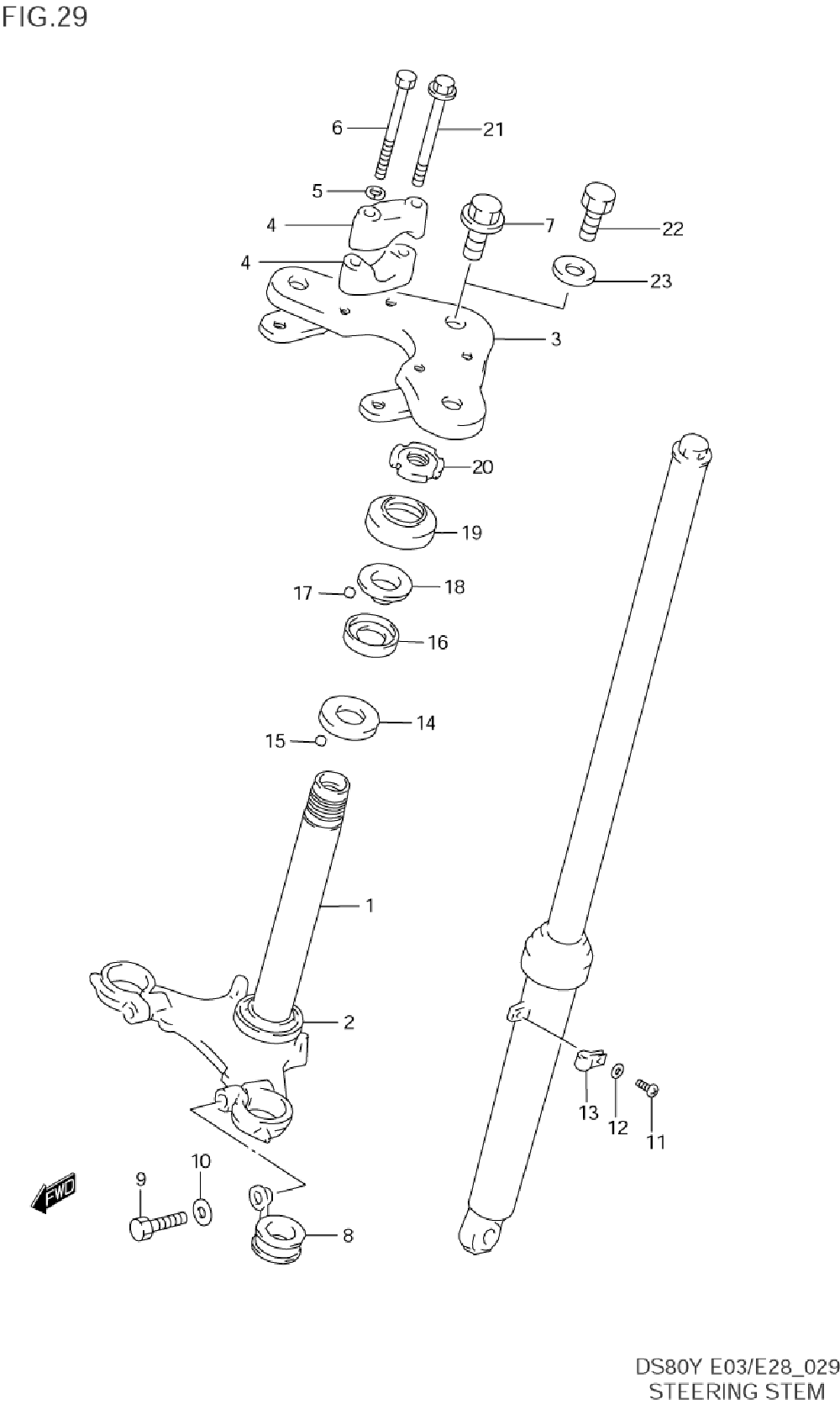

STEERING STEM для Suzuki DS80Y - 2000 года выпуска
-
№АртикулНазвание
-
151410-03440 STEM, STEERINGSTEM, STEERING
-
251621-33001 ...RACE (OUTER LOWER)...RACE (OUTER LOWER)
-
351310-03440 HEAD, STEERING STEMHEAD, STEERING STEM
-
456211-27200-291 HOLDER, HANDLE (BLACK)HOLDER, HANDLE (BLACK)
-
851455-03401 CLIPCLIP
-
901500-10303 BOLTBOLT
-
1008321-01107 LOCK WASHERLOCK WASHER
-
1102112-04127 SCREWSCREW
-
1208321-01043 LOCK WASHERLOCK WASHER
-
1351452-46040 CLIPCLIP
-
1451611-33002 RACE (INNER LOWER)RACE (INNER LOWER)
-
1506111-08003 BALL (LOWER)BALL (LOWER)
-
1651611-20002 RACE (INNER UPPER)RACE (INNER UPPER)
-
1706111-06003 BALL (UPPER)BALL (UPPER)
-
1851621-28000 RACE (OUTER UPPER)RACE (OUTER UPPER)
-
1951643-25001 DUST SEAL (UPPER)DUST SEAL (UPPER)
-
2051631-28000 NUT, STEERING STEMNUT, STEERING STEM
-
2101550-08553 BOLTBOLT
-
2251352-46030 BOLTBOLT
-
2351356-46030 WASHERWASHER
