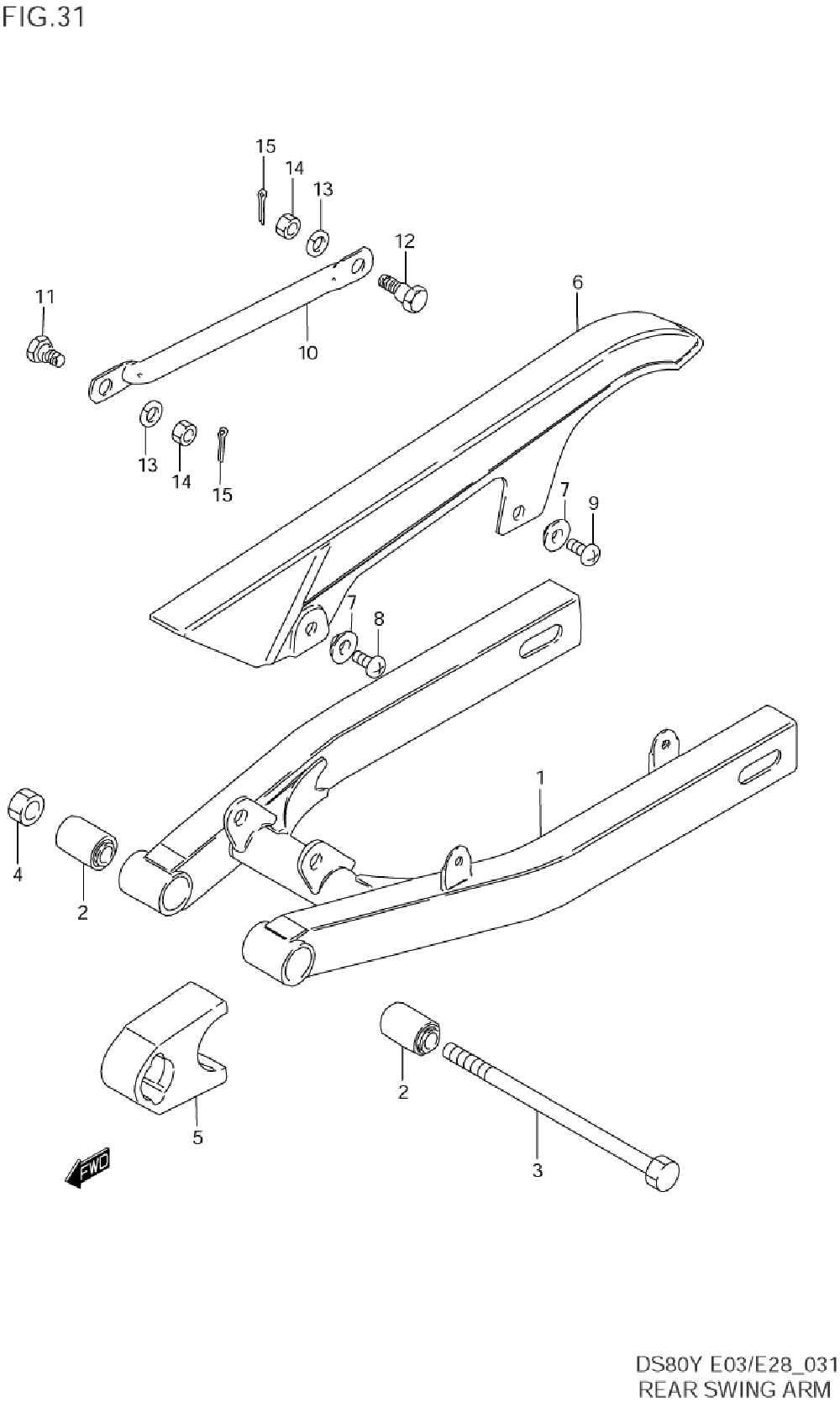

SUSPENSION - REAR ARM для Suzuki DS80Y - 2000 года выпуска
-
№АртикулНазвание
-
161000-03430-13L SWINGING ARM ASSY (REAR/SILVER)SWINGING ARM ASSY (REAR/SILVER)
-
209319-10024 ...BUSHING (10X23X37)...BUSHING (10X23X37)
-
361211-03401 SHAFT, PIVOTSHAFT, PIVOT
-
408319-31107 NUTNUT
-
561273-03400 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
661311-03410-291 CASE, CHAIN (BLACK)CASE, CHAIN (BLACK)
-
709169-06026 WASHERWASHER
-
802112-06103 SCREW (FRONT)SCREW (FRONT)
-
902112-06103 SCREW (REAR)SCREW (REAR)
-
1064311-03400-13L TORQUE LINK (REAR/SILVER)TORQUE LINK (REAR/SILVER)
-
1109111-08015 BOLT, TORQUE LINK (FRONT) (8X22)BOLT, TORQUE LINK (FRONT) (8X22)
-
1209111-08013 BOLT, BRAKE PANEL (REAR) (8X26.5)BOLT, BRAKE PANEL (REAR) (8X26.5)
-
1308321-01083 LOCK WASHERLOCK WASHER
-
1409140-08008 NUTNUT
-
1504111-20208 COTTER PINCOTTER PIN
