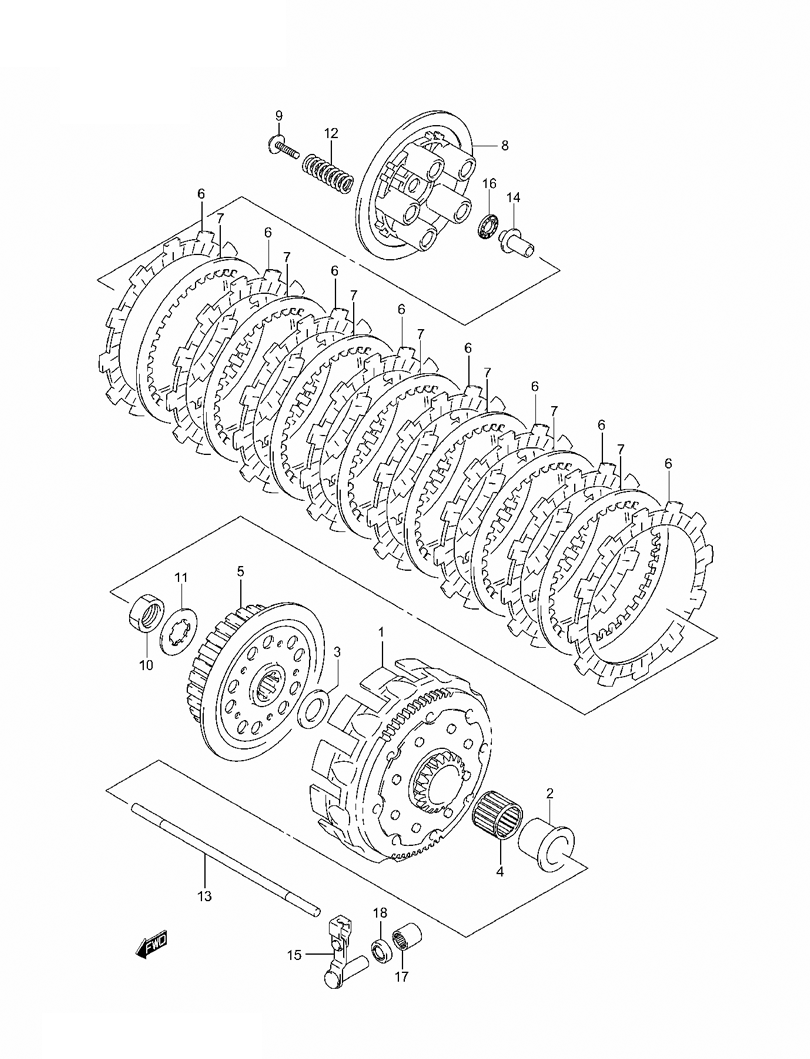

CLUTCH для Suzuki RM125K1 - 2001 года выпуска
-
№АртикулНазвание
-
121200-43D04 GEAR ASSY, PRIMARY DRIVEN NT:64/18GEAR ASSY, PRIMARY DRIVEN NT:64/18
-
221251-43D00 SPACERSPACER
-
308211-20363 WASHERWASHER
-
409263-25046 BEARING (25X30X22)BEARING (25X30X22)
-
521411-43D04 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
621441-43D00 PLATE, CLUTCH DRIVEPLATE, CLUTCH DRIVE
-
721451-43D00 PLATE, CLUTCH DRIVEN T:1.4PLATE, CLUTCH DRIVEN T:1.4
-
821462-43D01 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
909116-05019 BOLT (5X18)BOLT (5X18)
-
1009140-20001 NUTNUT
-
1109167-20006 WASHERWASHER
-
1209440-18030 SPRINGSPRING
-
1323110-36F00 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1423121-37F00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
1523200-36E11 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
1609263-10002 BEARING (10.1X22X2.8)BEARING (10.1X22X2.8)
-
1709263-10007 BEARING (10X14X15)BEARING (10X14X15)
-
1809285-10004 SEAL (10X17X5.0)SEAL (10X17X5.0)
