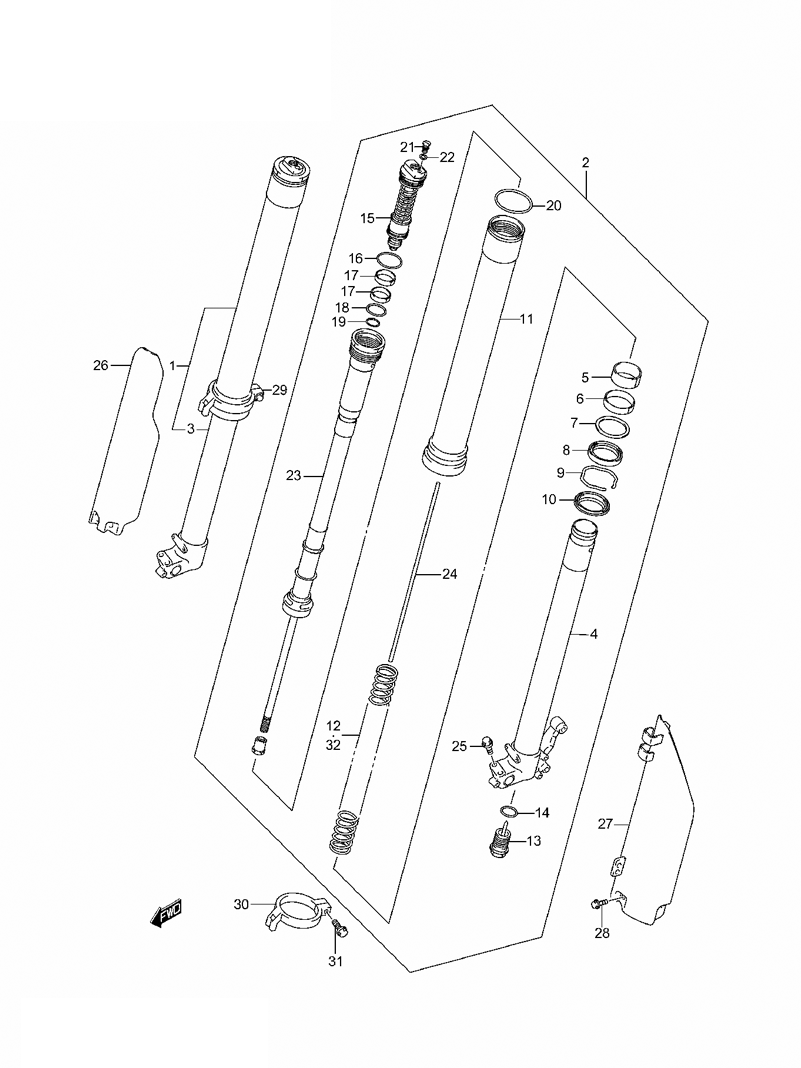

SUSPENSION - FRONT FORK для Suzuki RM125K1 - 2001 года выпуска
-
№АртикулНазвание
-
151103-36F10 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251104-36F10 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
351110-36F00 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
451120-36F00 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
551121-36F00 BUSH, GUIDEBUSH, GUIDE
-
651167-36F00 BUSH, GUIDEBUSH, GUIDE
-
751158-36F00 SPACER, SEALSPACER, SEAL
-
851153-36F00 SEAL, OILSEAL, OIL
-
951156-36F00 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
1051173-36F00 SEAL, DUSTSEAL, DUST
-
1151130-36F00 TUBE, OUTERTUBE, OUTER
-
1251171-36F00 SPRING, FRONT (K=0.40)SPRING, FRONT (K=0.40)
-
1351170-36E20 BOLT, CENTERBOLT, CENTER
-
1451177-36E20 O RINGO RING
-
1551351-36F10 BOLT, FORKBOLT, FORK
-
1651117-36E00 O RINGO RING
-
1751123-28E30 BUSH, FORK BOLT SLIDEBUSH, FORK BOLT SLIDE
-
1851174-36E40 O RINGO RING
-
1951175-36F00 O RINGO RING
-
2051117-36E60 O RINGO RING
-
2151357-36F00 BOLT, PLUGBOLT, PLUG
-
2251358-28E30 O RINGO RING
-
2351190-36F10 ROD, DAMPERROD, DAMPER
-
2451191-36F00 ROD, PUSHROD, PUSH
-
2551328-36F00 BOLTBOLT
-
2651501-36E60 PROTECTOR, RIGHT HANDPROTECTOR, RIGHT HAND
-
2751511-36E60 PROTECTOR, LEFT HANDPROTECTOR, LEFT HAND
-
2858627-27C40 BOLTBOLT
-
2951220-36E61 GUIDE, PROTECTOR RIGHT HANDGUIDE, PROTECTOR RIGHT HAND
-
3051210-36E61 GUIDE, PROTECTOR LEFT HANDGUIDE, PROTECTOR LEFT HAND
-
3101547-06207 BOLTBOLT
-
3251171-36F10 SPRING, FRONT (HARD K=0.42)SPRING, FRONT (HARD K=0.42)
-
3251171-36F20 SPRING, FRONT (SOFT K=0.38)SPRING, FRONT (SOFT K=0.38)
