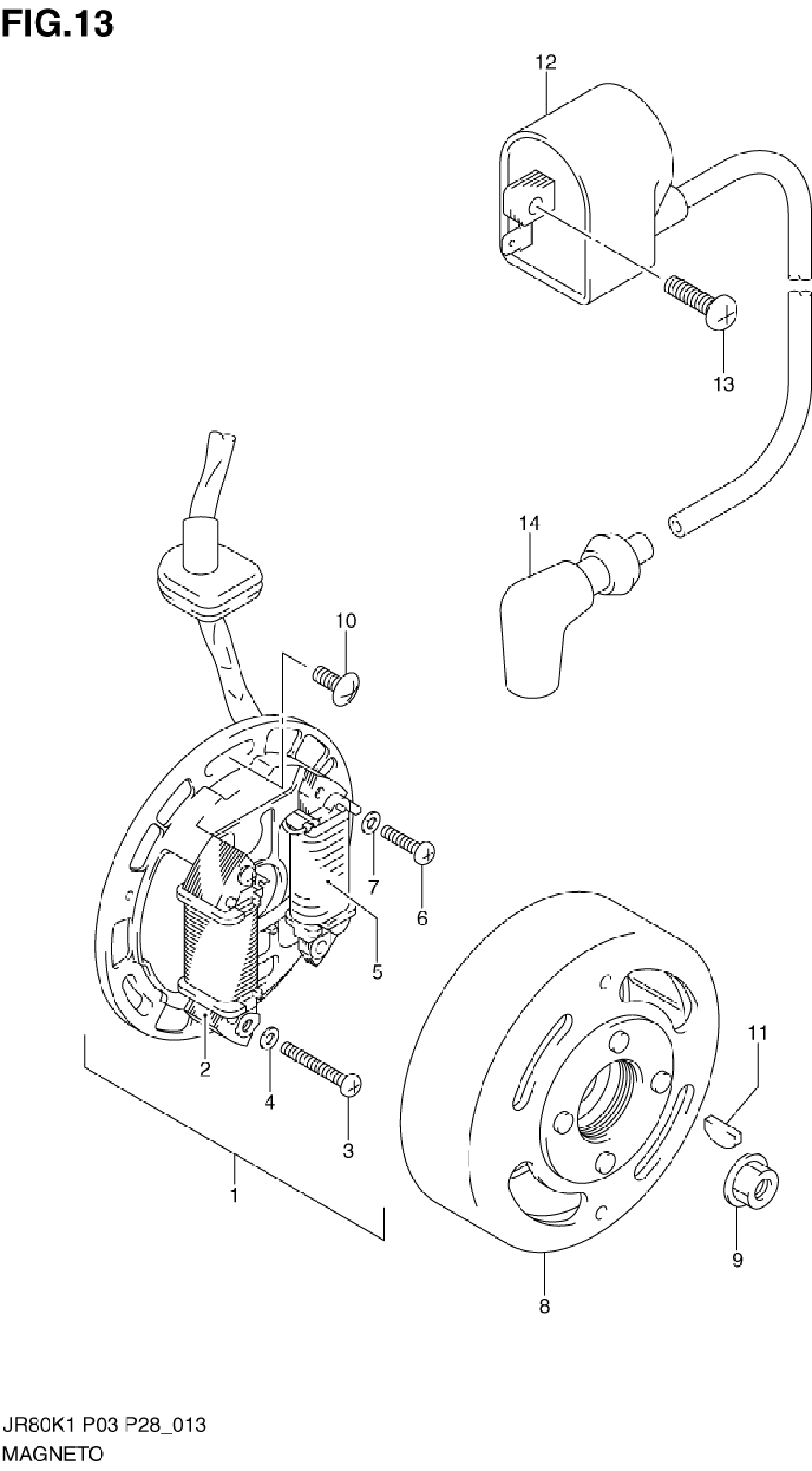

MAGNETO для Suzuki JR80K2 - 2002 года выпуска
-
№АртикулНазвание
-
132101-03420 STATOR ASSYSTATOR ASSY
-
232120-03420 ...COIL, LIGHTING...COIL, LIGHTING
-
302112-04307 ...SCREW...SCREW
-
408321-01043 ...LOCK WASHER...LOCK WASHER
-
532140-35410 ...COIL, PRIMARY...COIL, PRIMARY
-
602112-04163 ...SCREW...SCREW
-
708321-01043 ...LOCK WASHER...LOCK WASHER
-
832102-03420 ROTORROTOR
-
908316-10103 NUTNUT
-
1002142-05123 SCREWSCREW
-
1108341-31039 KEYKEY
-
1233410-48710 UNIT & COIL ASSY, IGNITIONUNIT & COIL ASSY, IGNITION
-
1302112-06203 SCREWSCREW
-
14-233510-20A02 CAP, SPARK PLUGCAP, SPARK PLUG
