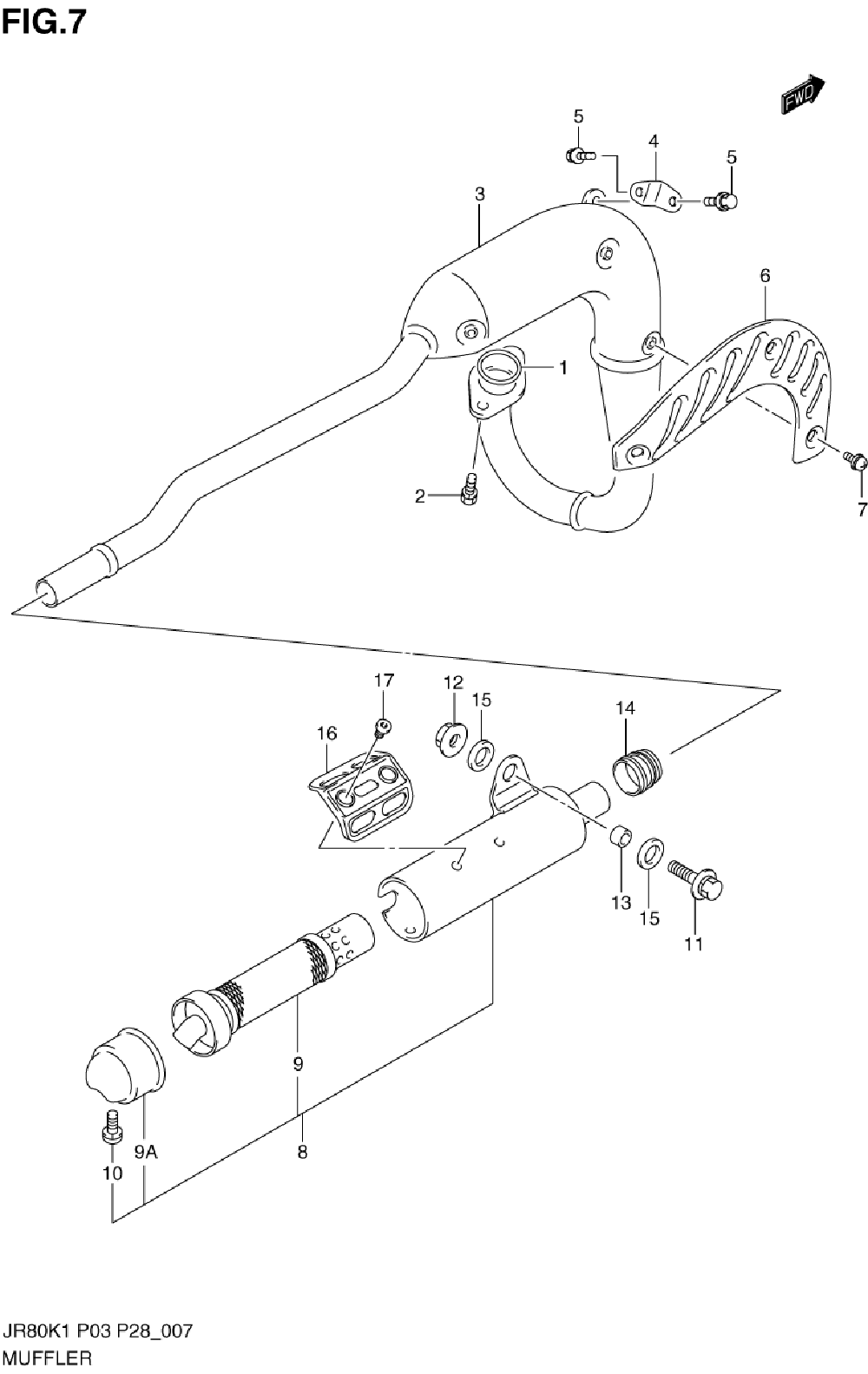

MUFFLER для Suzuki JR80K2 - 2002 года выпуска
-
№АртикулНазвание
-
114181-18C00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
201570-06203 BOLTBOLT
-
314310-03450-H01 MUFFLER, 1STMUFFLER, 1ST
-
414770-20401 DAMPERDAMPER
-
501580-06123 BOLTBOLT
-
614781-03400 COVER, MUFFLERCOVER, MUFFLER
-
702112-76103 SCREWSCREW
-
814303-03450-H01 MUFFLER, 2NDMUFFLER, 2ND
-
914850-04420 ...TUBE, CLEAN OUT...TUBE, CLEAN OUT
-
9A14817-03450 ...CUTTER, MUFFLER TAIL...CUTTER, MUFFLER TAIL
-
1002112-36123 ...SCREW...SCREW
-
1109118-08033 BOLT, 2ND MUFFLERBOLT, 2ND MUFFLER
-
1208319-31083 NUT, 2ND MUFFLERNUT, 2ND MUFFLER
-
1309180-08199 SPACER (8.5X14X9)SPACER (8.5X14X9)
-
1414771-48002 CONNECTORCONNECTOR
-
1509320-14006 CUSHIONCUSHION
-
1614781-03450 COVER, 2ND MUFFLERCOVER, 2ND MUFFLER
-
17-214789-29F01 SCREWSCREW
