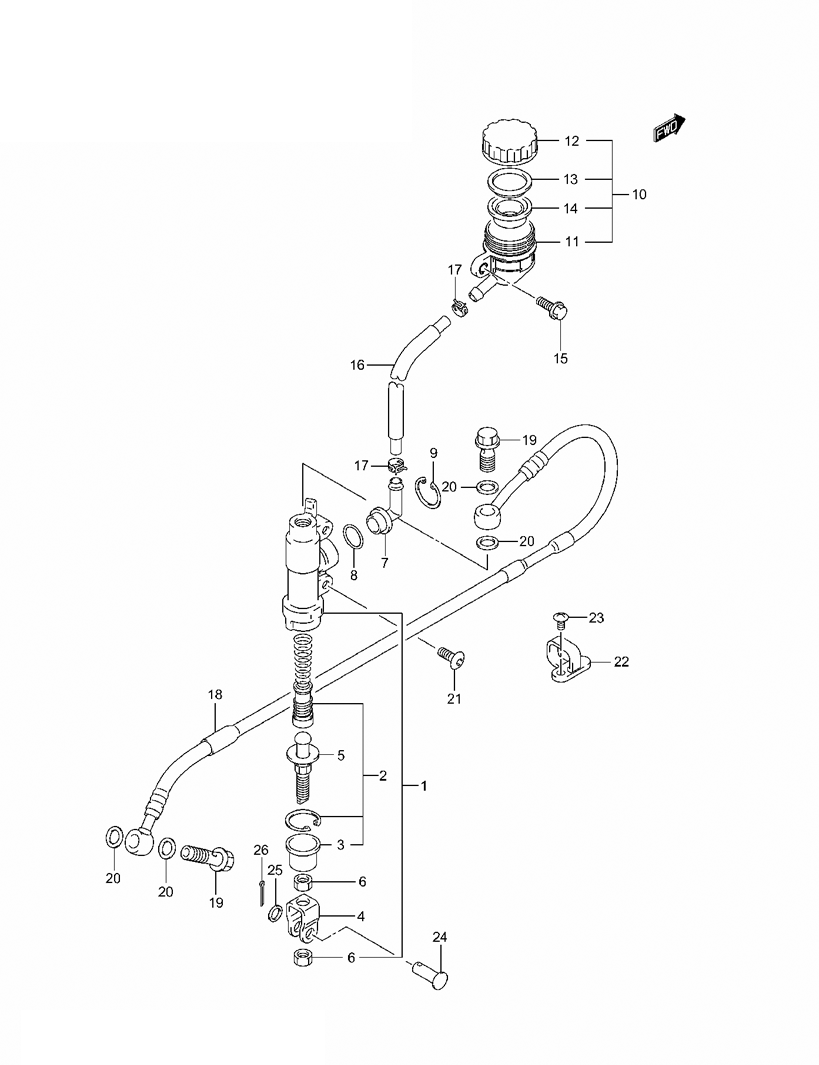

BRAKE - REAR MASTER CYLINDER для Suzuki RM125K3 - 2003 года выпуска
-
№АртикулНазвание
-
169600-37F10 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-04820 PISTON/CUP SETPISTON/CUP SET
-
369691-00A00 BOOTBOOT
-
469692-37F10 YOKEYOKE
-
569670-27A40 ROD, PUSHROD, PUSH
-
669693-05A00 NUTNUT
-
759672-17C00 CONNECTORCONNECTOR
-
869686-34200 O RINGO RING
-
969674-00B20 CIRCLIPCIRCLIP
-
1069740-03D10 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1169741-03D00 TANK, RESERVOIRTANK, RESERVOIR
-
1269669-03D10 CAPCAP
-
1369668-00B20 PLATEPLATE
-
1469667-00B20 DIAPHRAGMDIAPHRAGM
-
1509103-06233 BOLTBOLT
-
1669731-37F00 HOSEHOSE
-
1769735-00B20 CLAMPCLAMP
-
1869480-36F10 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
1909360-10042 BOLT (10X1.25X22)BOLT (10X1.25X22)
-
2009161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2109139-06067 BOLT (6X16)BOLT (6X16)
-
2261196-27C30 GUIDE, HOSEGUIDE, HOSE
-
2302142-05103 SCREWSCREW
-
2409200-08048 PINPIN
-
2509160-08119 WASHERWASHER
-
2604111-20158 PIN, COTTERPIN, COTTER
