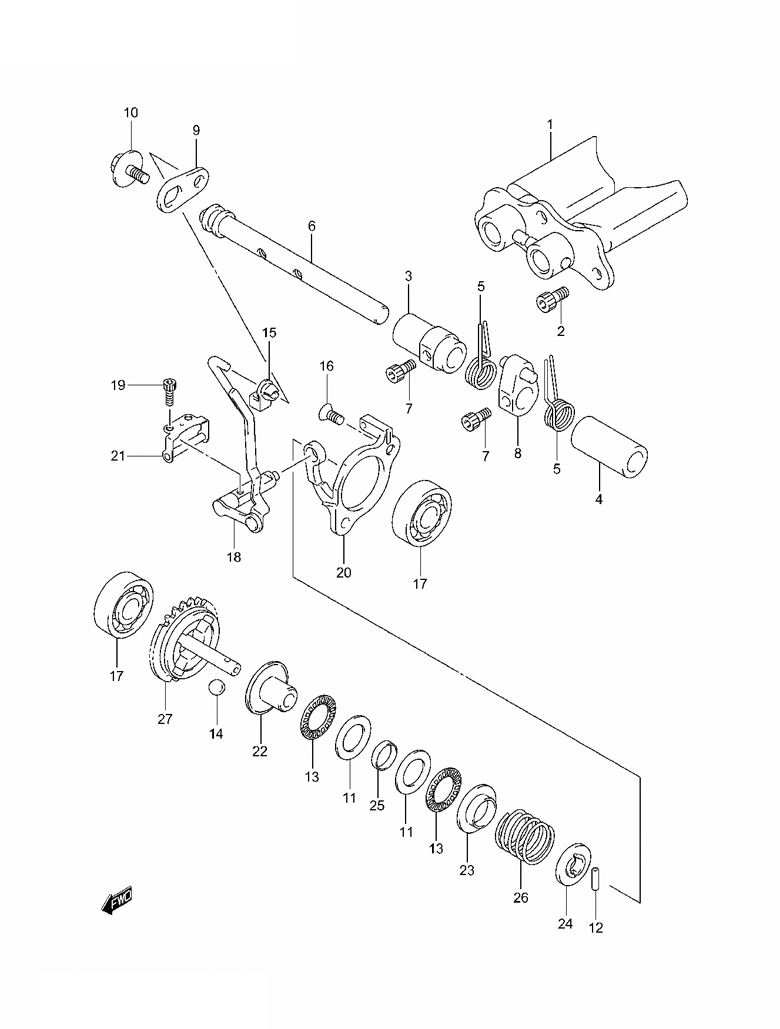

EXHAUST VALVE для Suzuki RM125K3 - 2003 года выпуска
-
№АртикулНазвание
-
111250-36F10 VALVE SET, EXHAUSTVALVE SET, EXHAUST
-
207130-05123 BOLT, EXHAUST VALVE PLATEBOLT, EXHAUST VALVE PLATE
-
311268-36F10 SPACER, EXHAUST VALVESPACER, EXHAUST VALVE
-
409180-08057 SPACER, EXHAUST VALVESPACER, EXHAUST VALVE
-
511257-36F11 SPRING, EXHAUST VALVESPRING, EXHAUST VALVE
-
611259-36F10 SHAFT, EXHAUST VALVESHAFT, EXHAUST VALVE
-
709106-04003 BOLT, EXHAUST VALVE SHAFTBOLT, EXHAUST VALVE SHAFT
-
811270-36F10 ARM, EXHAUST VALVEARM, EXHAUST VALVE
-
911266-36F10 LEVER, EXHAUST VALVE NO.1LEVER, EXHAUST VALVE NO.1
-
1009118-05003 BOLT, EXHAUST VALVEBOLT, EXHAUST VALVE
-
1109181-15223 WASHER, GOVERNOR THRUSTWASHER, GOVERNOR THRUST
-
1209261-03017 PIN, GOVERNOR SHAFTPIN, GOVERNOR SHAFT
-
1309263-15003 BEARING, GOVERNOR THRUSTBEARING, GOVERNOR THRUST
-
1406111-12004 BALL, GOVERNORBALL, GOVERNOR
-
1512686-01B00 BUSH, EXHAUST VALVE RODBUSH, EXHAUST VALVE ROD
-
1609120-05003 SCREW, ACTUATOR BASESCREW, ACTUATOR BASE
-
1709262-08005 BEARING, GOVERNOR SHAFTBEARING, GOVERNOR SHAFT
-
1812689-36F21 ACTUATOR, EXHAUSTACTUATOR, EXHAUST
-
1909106-04003 BOLT, ACTUATOR ARMBOLT, ACTUATOR ARM
-
2012681-36F20 BASE, ACTUATORBASE, ACTUATOR
-
2112682-36F21 ARM, ACTUATORARM, ACTUATOR
-
2212672-36F10 GOVERNOR, DRIVENGOVERNOR, DRIVEN
-
2312674-36F10 STOPPER, GOVERNOR SPRINGSTOPPER, GOVERNOR SPRING
-
2412675-36F11 STOPPER, GOVERNOR SPRINGSTOPPER, GOVERNOR SPRING
-
2512676-36F10 SPACER, GOVERNORSPACER, GOVERNOR
-
2612677-36F10 SPRING, GOVERNORSPRING, GOVERNOR
-
2712670-36810 GOVERNOR SET, EXHAUSTGOVERNOR SET, EXHAUST
