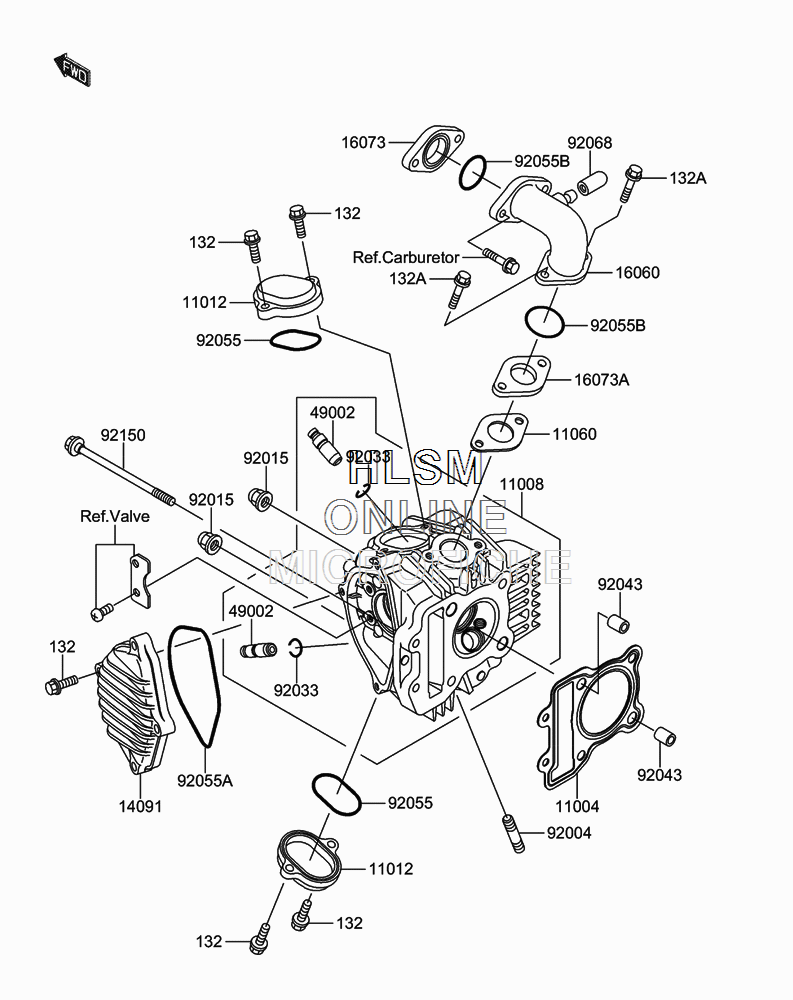

CYLINDER HEAD для Suzuki DR-Z110K4 - 2004 года выпуска
-
№АртикулНазвание
-
11004K1100-41338 GASKET-HEADGASKET-HEAD
-
11008K1100-81431 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
11012K1101-21303 CAP,VALVE ADJUSTINGCAP,VALVE ADJUSTING
-
11060K1106-01753 GASKET,INTAKE PIPEGASKET,INTAKE PIPE
-
14091K1409-11447 COVER,CAMSHAFTCOVER,CAMSHAFT
-
16060K1606-01079 PIPE-INTAKEPIPE-INTAKE
-
16073K1607-31102 INSULATOR,CARBURETORINSULATOR,CARBURETOR
-
16073AK1607-31108 INSULATOR,HEADINSULATOR,HEAD
-
49002K4900-21130 GUIDE-VALVEGUIDE-VALVE
-
92004K9200-41234 STUDSTUD
-
92015K9201-51151 NUT,CAP,8MMNUT,CAP,8MM
-
92033K9203-31247 RING-SNAPRING-SNAP
-
92043K9204-31264 PIN,8.2X10X14PIN,8.2X10X14
-
92055K9205-51231 RING-O,ADJUST CAPRING-O,ADJUST CAP
-
92055AK9205-51527 RING-O,91X2.5RING-O,91X2.5
-
92055BK9205-51528 RING-O,25.5X2.0RING-O,25.5X2.0
-
92068KK920-68006 PLUG,12X25PLUG,12X25
-
92150K9215-01761 BOLT,6X106BOLT,6X106
-
132KK132-Y0620 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132AKK132-Y0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
