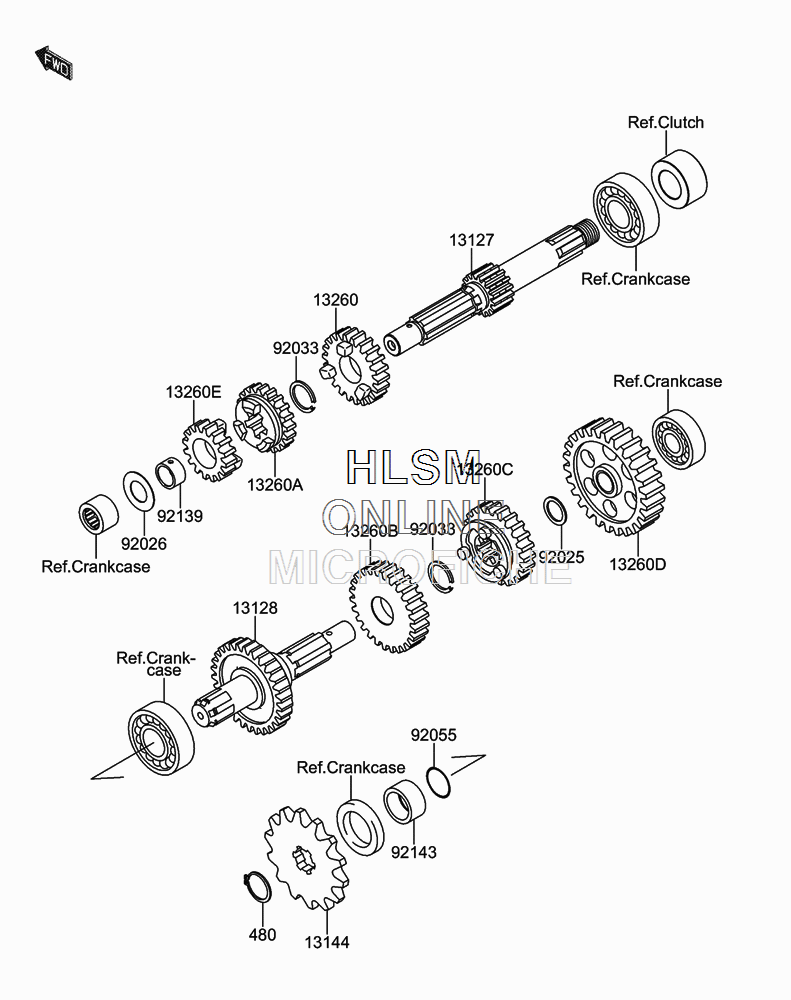

TRANSMISSION для Suzuki DR-Z110K4 - 2004 года выпуска
-
№АртикулНазвание
-
13127K1312-71280 SHAFT-TRANSMISSION INPUT,12TSHAFT-TRANSMISSION INPUT,12T
-
13128K1312-81244 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
13144K1314-41044 SPROCKET-OUTPUT,14TSPROCKET-OUTPUT,14T
-
13260K1326-01840 GEAR,INPUT TOP,23TGEAR,INPUT TOP,23T
-
13260AK1326-01857 GEAR,INPUT 3RD,20TGEAR,INPUT 3RD,20T
-
13260BK1326-01860 GEAR,OUTPUT 3RD,27TGEAR,OUTPUT 3RD,27T
-
13260CK1326-01861 GEAR,OUTPUT TOP,25TGEAR,OUTPUT TOP,25T
-
13260DK1326-01862 GEAR,OUTPUT LOW,36TGEAR,OUTPUT LOW,36T
-
13260EK1326-01986 GEAR,INPUT 2ND,16TGEAR,INPUT 2ND,16T
-
92025K9202-51280 SHIMSHIM
-
92026K9202-61091 SPACERSPACER
-
92033K9203-31060 RING-SNAP,17MMRING-SNAP,17MM
-
92055K9205-51235 RING-O,16.8MMRING-O,16.8MM
-
92139K9213-91102 BUSHINGBUSHING
-
92143K9214-31680 COLLAR,SPROCKETCOLLAR,SPROCKET
-
480KK480-J1700 CIRCLIP-TYPE-C,17MMCIRCLIP-TYPE-C,17MM
