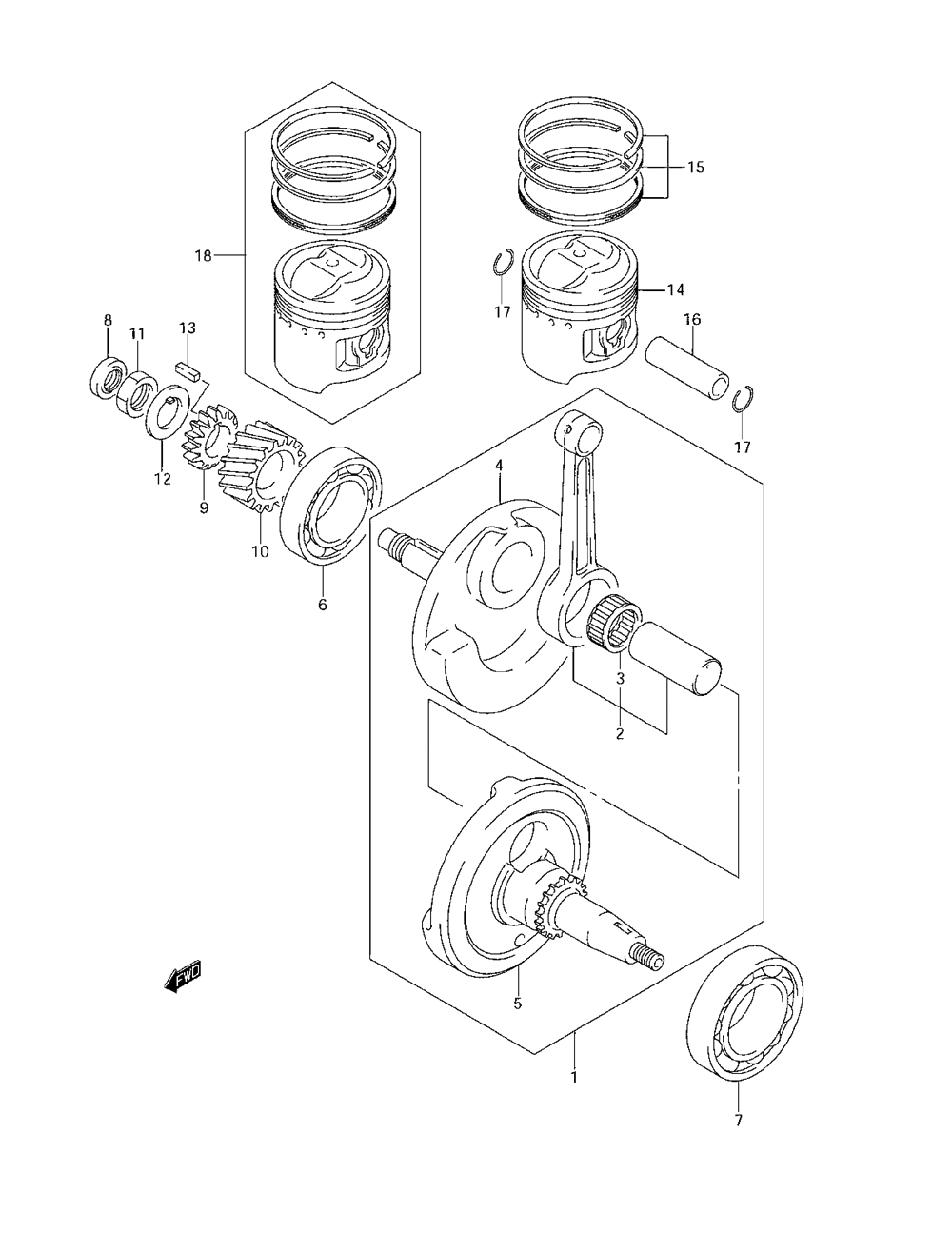

CRANKSHAFT W/ PISTON для Suzuki DR-Z125K4 - 2004 года выпуска
-
№АртикулНазвание
-
112200-05240 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212105-05821 ROD SET, CONNECTINGROD SET, CONNECTING
-
309263-28027-0B0 BEARING (28X36X15.8)BEARING (28X36X15.8)
-
412221-05210 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
512261-05210 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
609262-28014 BEARING, RIGHT HAND (28X68X18)BEARING, RIGHT HAND (28X68X18)
-
709262-35038 BEARING, LEFT HAND (35X72X17)BEARING, LEFT HAND (35X72X17)
-
809282-12009 OIL SEAL (12X21X7)OIL SEAL (12X21X7)
-
916321-05201 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
1021111-05200-0C0 GEAR, PRIMARY DRIVE (NT:17)GEAR, PRIMARY DRIVE (NT:17)
-
1109140-16019 NUTNUT
-
1209166-16012 WASHERWASHER
-
1309421-04004 KEYKEY
-
1412111-05202-0F0 PISTONPISTON
-
1512140-01410 RING SET, PISTONRING SET, PISTON
-
1612151-05220 PIN, PISTONPIN, PISTON
-
1709381-14001 SNAP RINGSNAP RING
-
1812100-05200-050 PISTON SET (OS:0.5)PISTON SET (OS:0.5)
