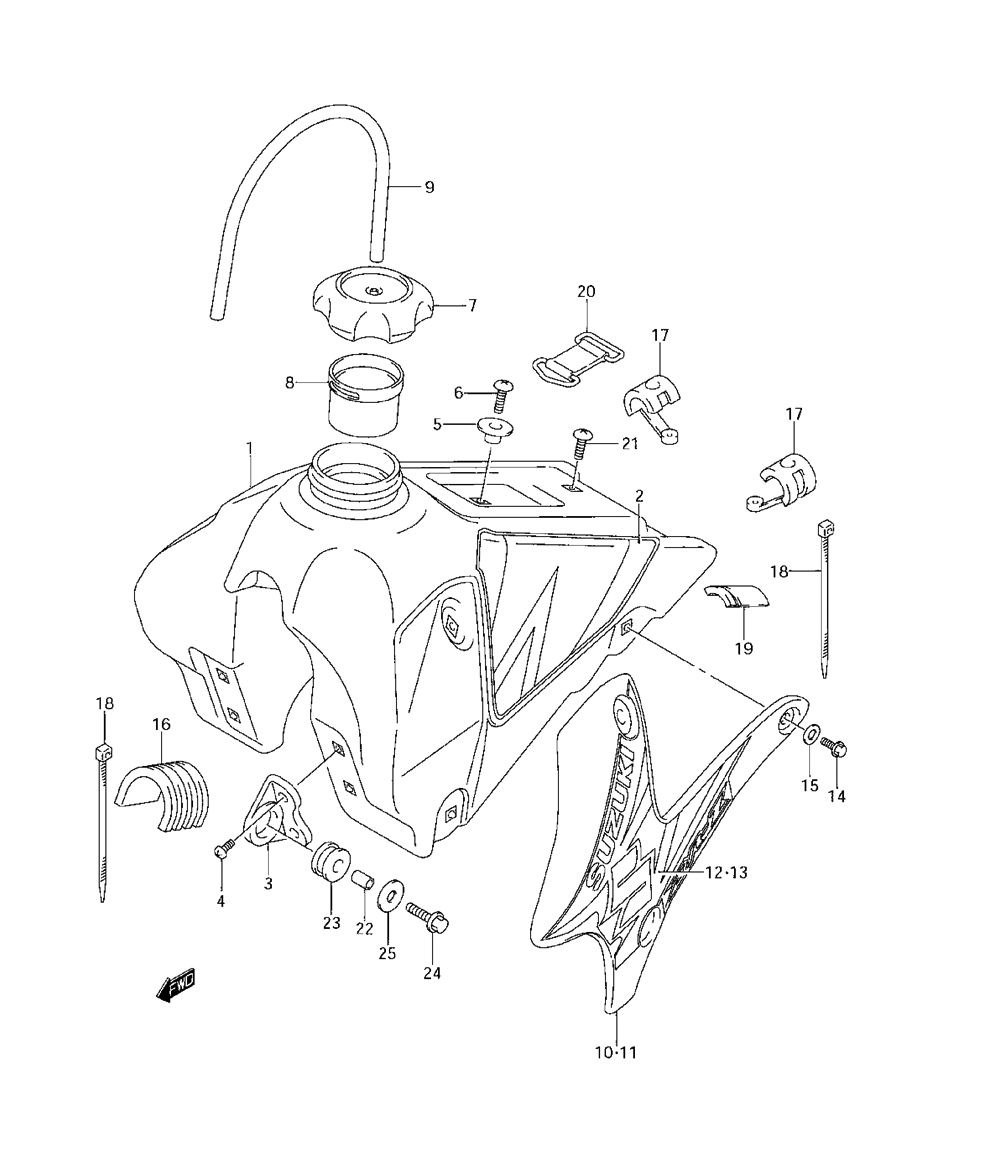

FUEL TANK для Suzuki DR-Z125K4 - 2004 года выпуска
-
№АртикулНазвание
-
144100-08G10-YU1 TANK, FUEL (YELLOW, YU1)TANK, FUEL (YELLOW, YU1)
-
268110-08G10-NT2 TAPE SETTAPE SET
-
344131-27C01 BRACKET, FRONTBRACKET, FRONT
-
401547-06123 BOLTBOLT
-
544132-27C01 HOOK, FRONTHOOK, FRONT
-
602142-06203 SCREWSCREW
-
744200-29F00 CAP, FUELCAP, FUEL
-
844199-19A00 TUBE, FUEL TANKTUBE, FUEL TANK
-
909352-50823-600 HOSE (L:600!280)HOSE (L:600!280)
-
1044171-08G00-YU1 COVER, TANK FRONT RIGHT HAND (YELLOW, YU1)COVER, TANK FRONT RIGHT HAND (YELLOW, YU1)
-
1144181-08G00-YU1 COVER, TANK FRONT LEFT HAND (YELLOW, YU1)COVER, TANK FRONT LEFT HAND (YELLOW, YU1)
-
1268115-08G10-NN2 TAPE, FRONT COVER RIGHT HANDTAPE, FRONT COVER RIGHT HAND
-
1368116-08G10-NN2 TAPE, FRONT COVER LEFT HANDTAPE, FRONT COVER LEFT HAND
-
1401547-06123 BOLTBOLT
-
1509169-06060 WASHERWASHER
-
1644541-13E10 CUSHIONCUSHION
-
1744541-08G00 CUSHION, SIDECUSHION, SIDE
-
1809407-30402 CLAMPCLAMP
-
1944542-08G00 CUSHION, REARCUSHION, REAR
-
2044560-44E00 BAND, REARBAND, REAR
-
2102142-06163 SCREWSCREW
-
2209180-06268 SPACERSPACER
-
2344511-08G00 CUSHIONCUSHION
-
2401547-06253 BOLT, FRONTBOLT, FRONT
-
2509160-06114 WASHERWASHER
