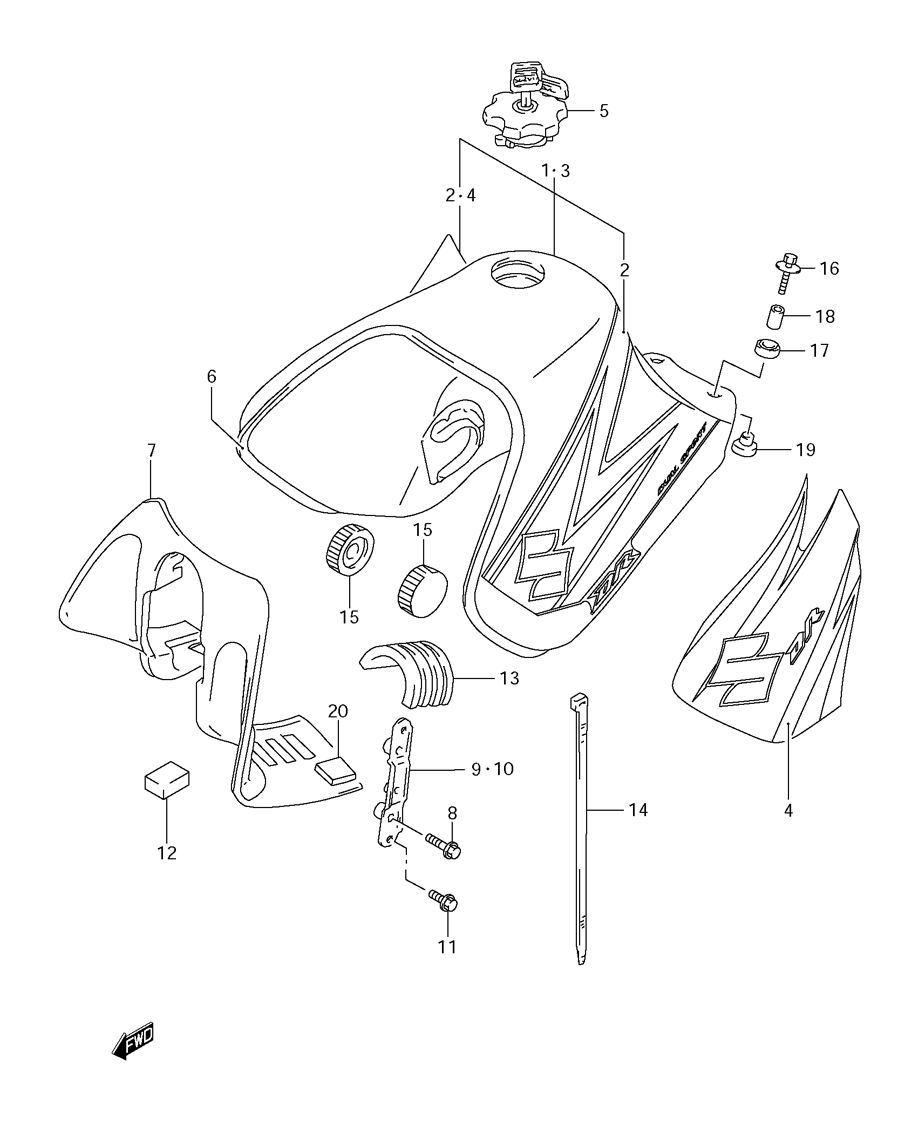

FUEL TANK для Suzuki DR-650SMK6 - 2006 года выпуска
-
№АртикулНазвание
-
144100-32EK0-YC2 TANK ASSEMBLY, FUEL (BLUE) (YC2 FOR N9J)TANK ASSEMBLY, FUEL (BLUE) (YC2 FOR N9J)
-
144100-32EK0-YU1 TANK ASSEMBLY, FUEL (YELLOW) (YU1)TANK ASSEMBLY, FUEL (YELLOW) (YU1)
-
144100-32EL0-YC2 TANK ASSEMBLY, FUEL (BLUE) (YC2 FOR N9J) (FOR CALF. ONLY)TANK ASSEMBLY, FUEL (BLUE) (YC2 FOR N9J) (FOR CALF. ONLY)
-
144100-32EL0-YU1 TANK ASSEMBLY, FUEL (YELLOW) (YU1)(FOR CALF. ONLY)TANK ASSEMBLY, FUEL (YELLOW) (YU1)(FOR CALF. ONLY)
-
268110-32E90-CLK ...TAPE SET, FUEL TANK (CLK FOR YC2)...TAPE SET, FUEL TANK (CLK FOR YC2)
-
268110-32E90-CET ...TAPE SET, FUEL TANK (CET FOR YU1)...TAPE SET, FUEL TANK (CET FOR YU1)
-
544200-13830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
544200-05820 CAP SET, FUEL TANK (FOR CALF. ONLY)CAP SET, FUEL TANK (FOR CALF. ONLY)
-
668241-32E00 MOLDINGMOLDING
-
744271-32E00 COVER, FRONTCOVER, FRONT
-
809116-06210 BOLT, FRONT COVERBOLT, FRONT COVER
-
944280-32E00 BRACKET, FRONT COVER RIGHT HANDBRACKET, FRONT COVER RIGHT HAND
-
1044290-32E00 BRACKET, FRONT COVER LEFT HANDBRACKET, FRONT COVER LEFT HAND
-
1101550-0625A BOLT, BRACKETBOLT, BRACKET
-
1251827-01A00 CUSHIONCUSHION
-
1344541-13E00 CUSHION, UPPER REARCUSHION, UPPER REAR
-
1409407-25402 CLAMPCLAMP
-
1544511-12D00 CUSHION, FRONTCUSHION, FRONT
-
1609116-06214 BOLT, REARBOLT, REAR
-
1709320-14022 CUSHION, UPPERCUSHION, UPPER
-
1809180-06271 SPACERSPACER
-
1909320-10020 CUSHION, LOWERCUSHION, LOWER
-
2044831-17B00 CUSHION, TANK COVERCUSHION, TANK COVER
