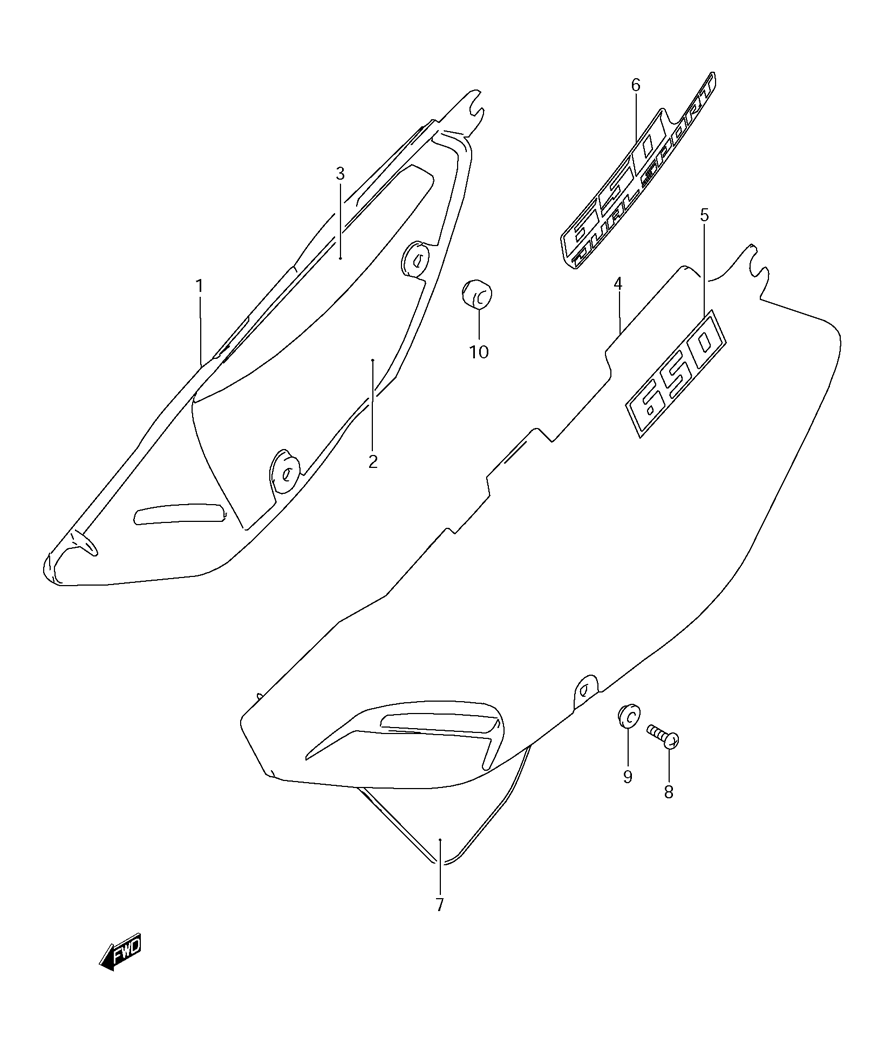

SIDE COVER для Suzuki DR-650SMK6 - 2006 года выпуска
-
№АртикулНазвание
-
147111-32E00-30H COVER, FRAME RIGHT HAND (WHITE) (30H)COVER, FRAME RIGHT HAND (WHITE) (30H)
-
247166-32E00 SHIELD, COVER LOWER RIGHT HANDSHIELD, COVER LOWER RIGHT HAND
-
347167-32E00 SHIELD, COVER UPPER RIGHT HANDSHIELD, COVER UPPER RIGHT HAND
-
447211-32E00-30H COVER, FRAME LEFT HAND (WHITE) (30H)COVER, FRAME LEFT HAND (WHITE) (30H)
-
568131-32E20-8YM EMBLEM (8YM FOR N9J)EMBLEM (8YM FOR N9J)
-
568131-32E20-CLM EMBLEM (CLM FOR YU1)EMBLEM (CLM FOR YU1)
-
768146-32E00 TAPE, NO.2, LEFT HANDTAPE, NO.2, LEFT HAND
-
802142-06167 SCREWSCREW
-
909169-06028 WASHERWASHER
-
1009321-10019 CUSHION, MUFFLERCUSHION, MUFFLER
