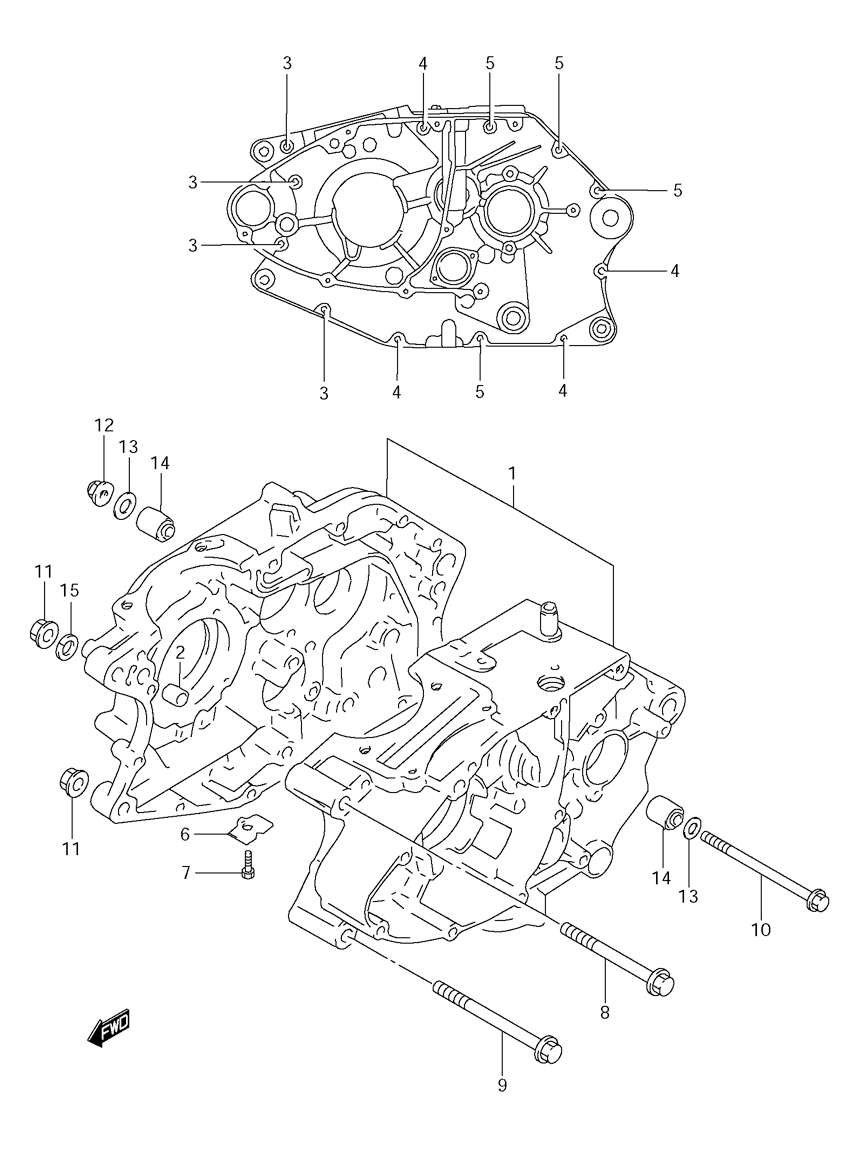

CRANKCASE для Suzuki DR200SEK6 - 2006 года выпуска
-
№АртикулНазвание
-
111300-42A24 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
204211-13189 ...KNOCK PIN...KNOCK PIN
-
301547-0655B ...BOLT...BOLT
-
401547-0660B ...BOLT...BOLT
-
501547-06757 ...BOLT...BOLT
-
611319-05200 ...PLATE, OIL GALLERY PLUG...PLATE, OIL GALLERY PLUG
-
701500-0610B ...BOLT...BOLT
-
809103-10370 BOLT (10X80)BOLT (10X80)
-
909103-10374 BOLT (10X90)BOLT (10X90)
-
1009103-08138 BOLT (8X115)BOLT (8X115)
-
1109159-10115 NUTNUT
-
1208319-3108B NUTNUT
-
1308212-08182 WASHERWASHER
-
1409319-08032 BUSHBUSH
-
1508321-0110B LOCK WASHERLOCK WASHER
