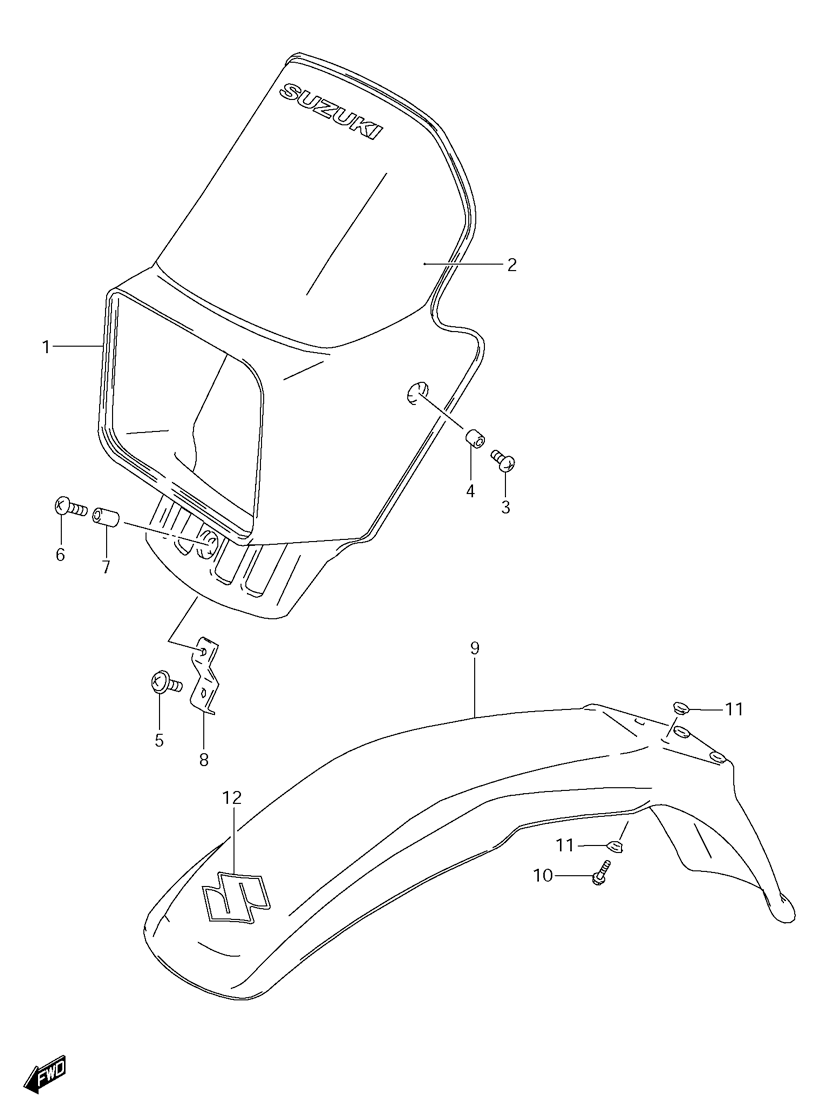

HEADLAMP COVER для Suzuki DR200SEK6 - 2006 года выпуска
-
№АртикулНазвание
-
151811-14A20-YU1 COVER, HEADLAMP (YELLOW) (YU1 FOR YU1)COVER, HEADLAMP (YELLOW) (YU1 FOR YU1)
-
151811-14A20-YJ4 COVER, HEADLAMP (BLUE) (YJ4 FOR N9J)COVER, HEADLAMP (BLUE) (YJ4 FOR N9J)
-
268725-42A10-CLM EMBLEM, SUZUKI (CLM FOR YU1)EMBLEM, SUZUKI (CLM FOR YU1)
-
268725-42A10-8YM EMBLEM, SUZUKI (8YM FOR N9J)EMBLEM, SUZUKI (8YM FOR N9J)
-
302142-0612B SCREWSCREW
-
409180-06245 SPACER (6.1X8X3.5)SPACER (6.1X8X3.5)
-
502112-36127 SCREWSCREW
-
602142-0620B SCREWSCREW
-
709180-06249 SPACER (6.1X8X12)SPACER (6.1X8X12)
-
851814-44A00 BRACE, COVER LOWERBRACE, COVER LOWER
-
953111-44A00-YU1 FENDER, FRONT (YELLOW) (YU1 FOR YU1)FENDER, FRONT (YELLOW) (YU1 FOR YU1)
-
953111-44A00-YJ4 FENDER, FRONT (BLUE) (YJ4 FOR N9J)FENDER, FRONT (BLUE) (YJ4 FOR N9J)
-
1001550-0616B BOLTBOLT
-
1109169-06053 WASHERWASHER
-
1268151-07G10-YCF EMBLEM, "S" (YCF)EMBLEM, "S" (YCF)
