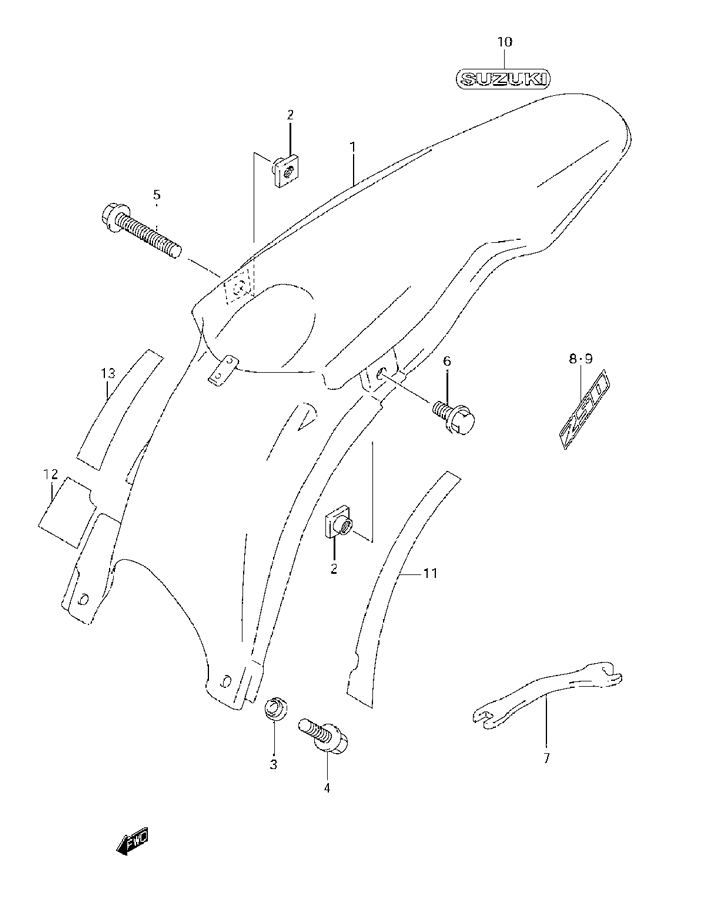

FENDER - REAR для Suzuki RM-250K7 - 2007 года выпуска
-
№АртикулНазвание
-
163111-37F00-YU1 FENDER, REAR (YELLOW) (YU1)FENDER, REAR (YELLOW) (YU1)
-
209152-06024 NUT, REAR FENDERNUT, REAR FENDER
-
369232-37F01 WASHERWASHER
-
409103-06235 BOLT, FRONTBOLT, FRONT
-
509103-06252 BOLT, RIGHT HANDBOLT, RIGHT HAND
-
609103-06234 BOLT, LEFT HANDBOLT, LEFT HAND
-
709813-00134 OPEN SPANNER (6.4X6.8)OPEN SPANNER (6.4X6.8)
-
868175-37F20-GY8 TAPE, REAR FENDER RIGHT HANDTAPE, REAR FENDER RIGHT HAND
-
968176-37F20-GY8 TAPE, REAR FENDER LEFT HANDTAPE, REAR FENDER LEFT HAND
-
1068721-13A00-GY8 EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
-
1163114-37F00 CUSHION, NO.1CUSHION, NO.1
-
1263114-37F10 CUSHION, NO.2CUSHION, NO.2
-
1363114-37F20 CUSHION, NO.3CUSHION, NO.3
