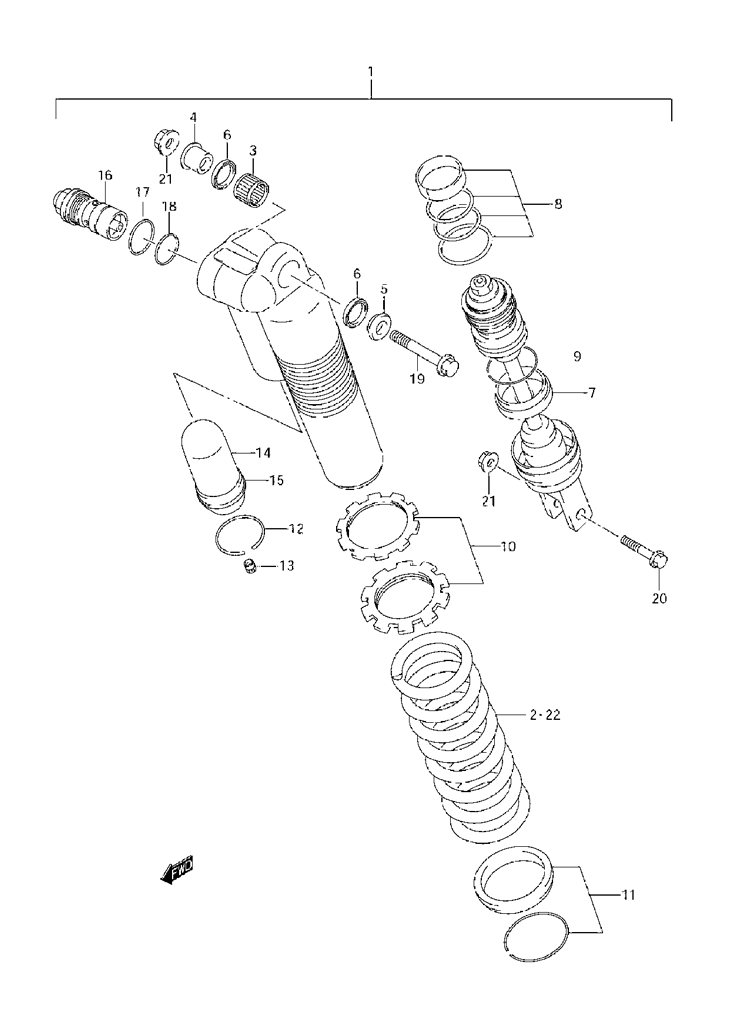

SUSPENSION - SHOCKS REAR для Suzuki RM-250K7 - 2007 года выпуска
-
№АртикулНазвание
-
162100-37FL0-YKS ABSORBER ASSY, RR SHOCK (RED) (YKS) (INCL. 2-18)ABSORBER ASSY, RR SHOCK (RED) (YKS) (INCL. 2-18)
-
162100-37FK0-YKS ABSORBER ASSY, RR SHOCK (RED) (YKS) (CANADA) (INCL. 2-18)ABSORBER ASSY, RR SHOCK (RED) (YKS) (CANADA) (INCL. 2-18)
-
262211-37FK0 SPRING (K=5.3)SPRING (K=5.3)
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
462684-36F00 SPACER, BEARING RIGHT HANDSPACER, BEARING RIGHT HAND
-
562685-36F00 SPACER, BEARING LEFT HANDSPACER, BEARING LEFT HAND
-
609284-16005 SEAL, DUST RIGHT HANDSEAL, DUST RIGHT HAND
-
762120-37FJ0 ROD, PISTONROD, PISTON
-
862150-36EB0 O RING SETO RING SET
-
962279-36E80 RING, STOPPERRING, STOPPER
-
1062190-36F00 ADJUSTER SETADJUSTER SET
-
1162220-36F00 SPRING SEAT SETSPRING SEAT SET
-
1262278-36E00 RING, STOPPERRING, STOPPER
-
1351294-20400 CAPCAP
-
1462273-36F00 BLADDERBLADDER
-
1562275-36E00 CAP, CHAMBERCAP, CHAMBER
-
1662130-37FJ0 BOLT, PLUGBOLT, PLUG
-
1762131-28E00 O RINGO RING
-
1851174-43D00 O RINGO RING
-
1909103-10360 BOLTBOLT
-
2062221-37F30 BOLTBOLT
-
2109159-10067 NUTNUT
-
2262211-37FH0 SPRING (SOFT,K=4.8) (OPT)SPRING (SOFT,K=4.8) (OPT)
-
2262211-37FJ0 SPRING (SOFT,K=5.1) (OPT)SPRING (SOFT,K=5.1) (OPT)
-
2262211-37FL0 SPRING (HARD,K=5.5) (OPT)SPRING (HARD,K=5.5) (OPT)
-
2262211-37FM0 SPRING (HARD,K=5.6) (OPT)SPRING (HARD,K=5.6) (OPT)
