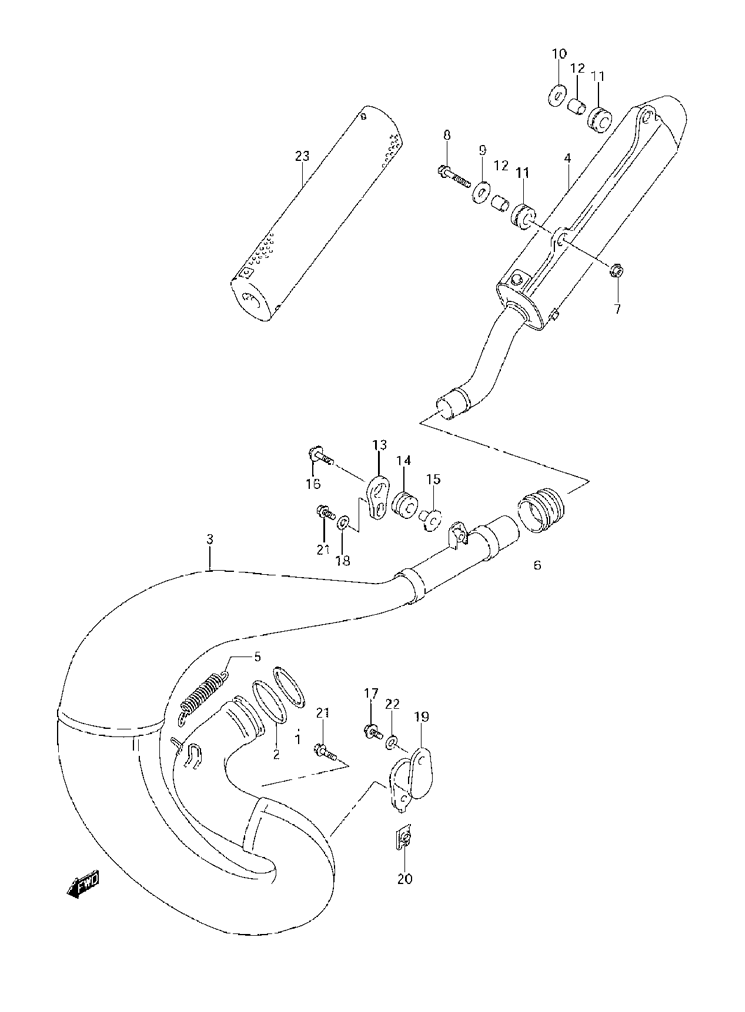

MUFFLER для Suzuki RM-250K8 - 2008 года выпуска
-
№АртикулНазвание
-
114172-28C30 WASHER, EXHAUST PIPEWASHER, EXHAUST PIPE
-
214171-28C30 O RING, EXHAUST PIPEO RING, EXHAUST PIPE
-
314310-37F21 MUFFLER, 1STMUFFLER, 1ST
-
414330-37F40 MUFFLER, 2NDMUFFLER, 2ND
-
509443-10045 SPRINGSPRING
-
614771-28C02 CONNECTOR, 2ND MUFFLERCONNECTOR, 2ND MUFFLER
-
708319-3106A NUTNUT
-
809103-06251 BOLTBOLT
-
909160-06114 WASHER (6.5X24X1.2)WASHER (6.5X24X1.2)
-
1009160-06114 WASHER (6.5X24X1.2)WASHER (6.5X24X1.2)
-
1109320-11015 CUSHIONCUSHION
-
1209180-06120 SPACER (6.5X11.5X12)SPACER (6.5X11.5X12)
-
1314761-27C00 PLATE, MOUNTINGPLATE, MOUNTING
-
1414762-01B01 CUSHIONCUSHION
-
1514763-36E00 SPACERSPACER
-
1609116-06186 BOLT (L:25)BOLT (L:25)
-
1709103-06233 BOLT (L:12)BOLT (L:12)
-
1809160-06084 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
1914770-37F00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2009148-06021 RETAINER, DAMPERRETAINER, DAMPER
-
2109103-06234 BOLT (L:18)BOLT (L:18)
-
2209160-06084 WASHER (6.5X18X1.6)WASHER (6.5X18X1.6)
-
2314351-37E30 SILENCER, MUFFLERSILENCER, MUFFLER
-
2314351-37F50 SILENCER, MUFFLER (CANADA)SILENCER, MUFFLER (CANADA)
