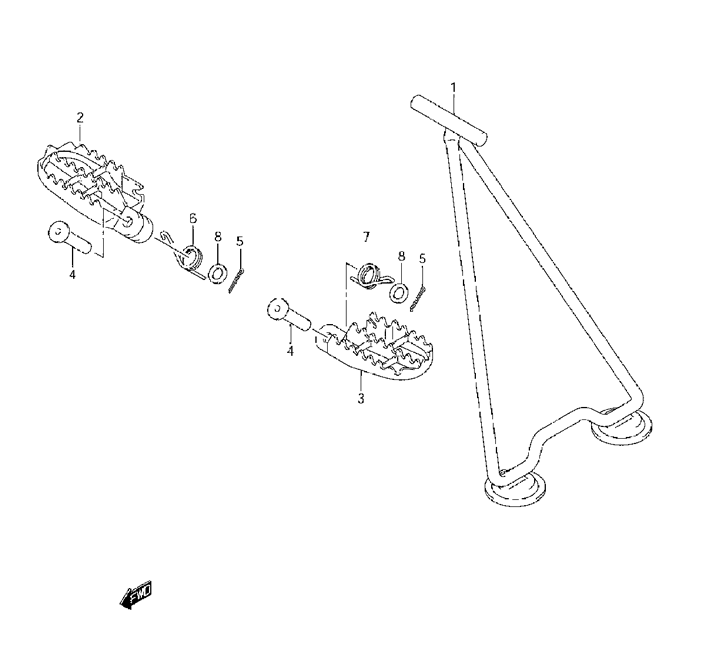

STAND / FOOTREST для Suzuki RM-250K8 - 2008 года выпуска
-
№АртикулНазвание
-
142310-36E40 STAND, PROPSTAND, PROP
-
243551-37F10 FOOTREST, RIGHT HANDFOOTREST, RIGHT HAND
-
343561-37F10 FOOTREST, LEFT HANDFOOTREST, LEFT HAND
-
409200-10022 PINPIN
-
504111-2520A COTTER PINCOTTER PIN
-
609448-21007 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
709448-21008 SPRING, LEFT HANDSPRING, LEFT HAND
-
808322-0110B WASHERWASHER
