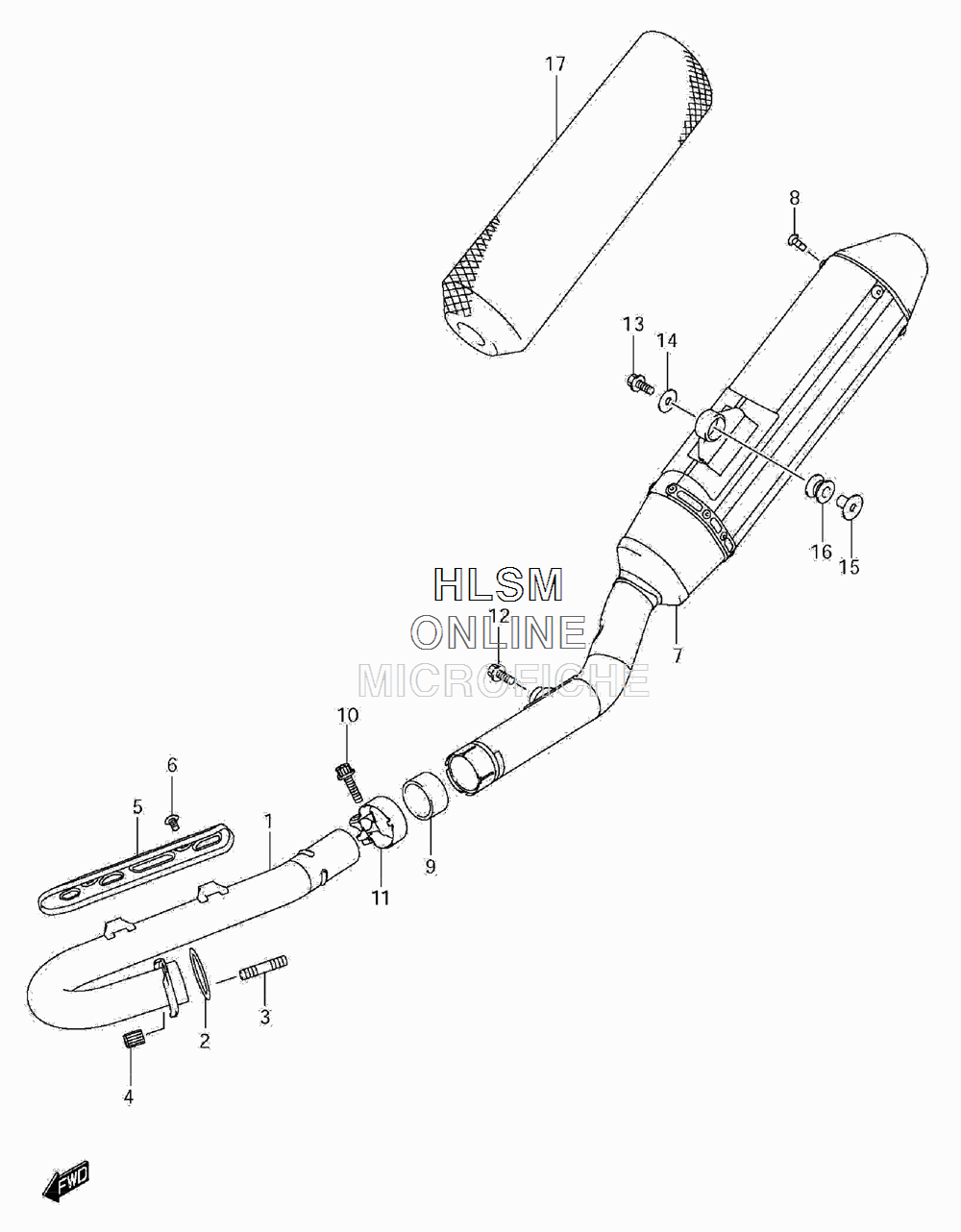

MUFFLER для Suzuki RM-Z450K8 - 2008 года выпуска
-
№АртикулНазвание
-
114150-28H30 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-35G00 GASKETGASKET
-
301421-0816B BOLT, STUDBOLT, STUD
-
409159-08112 NUTNUT
-
514186-28H10 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
609139-06172 SCREW (6X10)SCREW (6X10)
-
714310-28H10 BODY, MUFFLERBODY, MUFFLER
-
809139-05064 SCREW (5X13)SCREW (5X13)
-
914771-42F10 CONNECTORCONNECTOR
-
1007120-0835B BOLTBOLT
-
1114459-28H00 CLAMP, CONNECTORCLAMP, CONNECTOR
-
1209103-08426 BOLT (8X20)BOLT (8X20)
-
1309103-08391 BOLT (8X35)BOLT (8X35)
-
1409160-08151 WASHER (8.5X26X1.6)WASHER (8.5X26X1.6)
-
1509180-08151 SPACER (8.6X12X17.5)SPACER (8.6X12X17.5)
-
1609320-12043 CUSHIONCUSHION
-
1714351-28H10 SILENCER, MUFFLER (OPT)SILENCER, MUFFLER (OPT)
