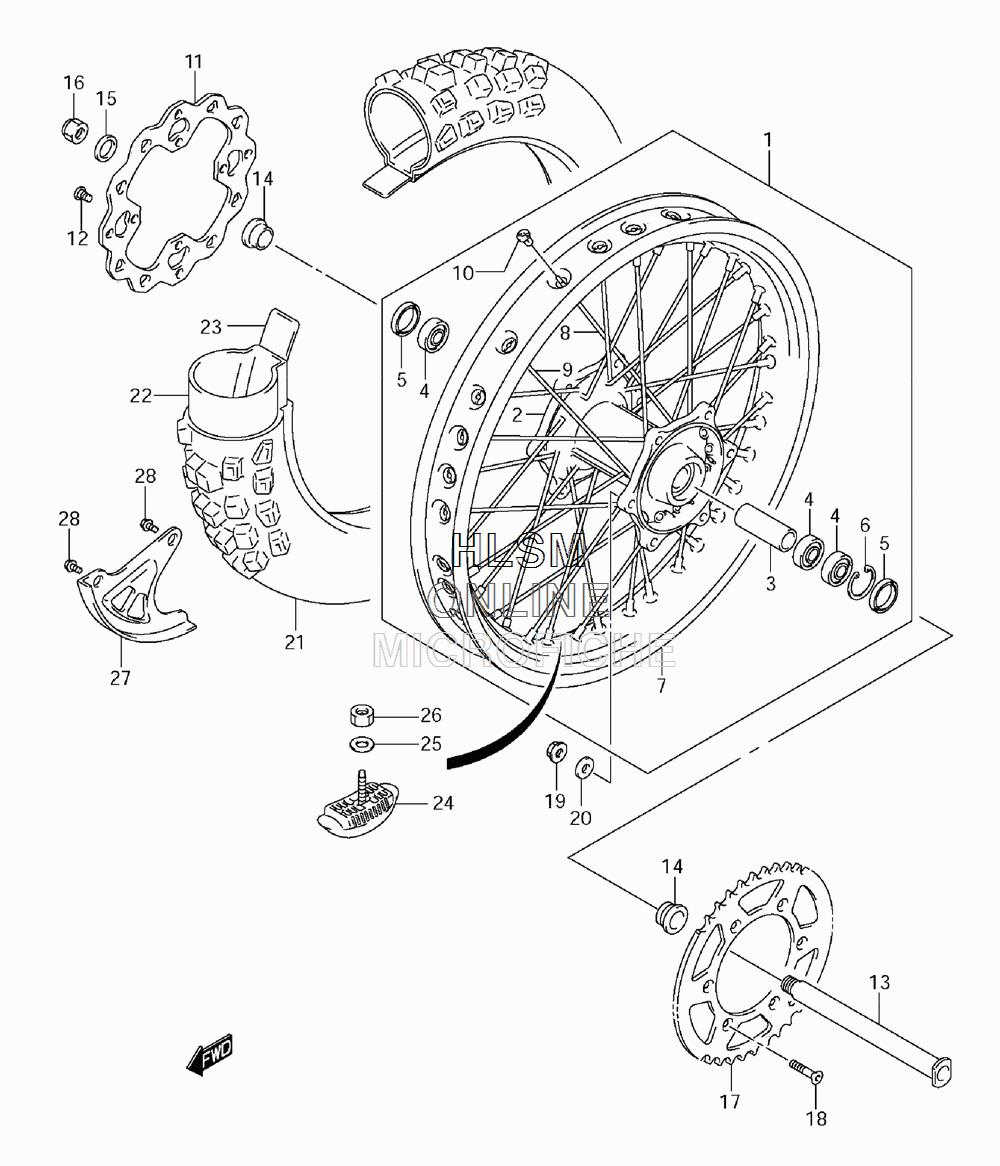

WHEEL - REAR для Suzuki RM-Z450K8 - 2008 года выпуска
-
№АртикулНазвание
-
164100-28H00 WHEEL ASSY, REAR (INCL. 2-10)WHEEL ASSY, REAR (INCL. 2-10)
-
264111-35G20 HUB, REAR WHEELHUB, REAR WHEEL
-
364731-35G01 SPACER, BEARINGSPACER, BEARING
-
409262-25139 BEARING (25X42X9)BEARING (25X42X9)
-
509283-32045 SEAL (32X43X7)SEAL (32X43X7)
-
608331-4142A CIRCLIPCIRCLIP
-
765311-35G00 RIM, REAR WHEEL (1.85X19)RIM, REAR WHEEL (1.85X19)
-
865321-35G10 SPOKE, WHEEL INNERSPOKE, WHEEL INNER
-
965322-35G10 SPOKE, WHEEL OUTERSPOKE, WHEEL OUTER
-
1065325-35G10 NIPPLE, WHEELNIPPLE, WHEEL
-
1169211-28H10 DISC, REAR BRAKEDISC, REAR BRAKE
-
1209139-08022 SCREW (8X15)SCREW (8X15)
-
1364711-35G01 AXLE, REARAXLE, REAR
-
1464751-35G00 SPACERSPACER
-
1509160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1609159-22007 NUTNUT
-
1764511-36E00 SPROCKET, REAR (NT:50)SPROCKET, REAR (NT:50)
-
1764511-37E00 SPROCKET, REAR (NT:48) (OPT)SPROCKET, REAR (NT:48) (OPT)
-
1764511-40261 SPROCKET, REAR (NT:51) (OPT)SPROCKET, REAR (NT:51) (OPT)
-
1764511-28E00 SPROCKET, REAR (NT:49T) (OPT)SPROCKET, REAR (NT:49T) (OPT)
-
1809120-08017 SCREW (8X30.5)SCREW (8X30.5)
-
1909159-08133 NUTNUT
-
2009160-08082 WASHER (8.5X16X1.2)WASHER (8.5X16X1.2)
-
2165110-28H00 TIRE, REAR (110/90-19 62M) (BRIDGESTONE)TIRE, REAR (110/90-19 62M) (BRIDGESTONE)
-
2265200-35G00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2365261-35G01 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2465270-28E00 STOPPER, BEADSTOPPER, BEAD
-
2508322-0108A WASHERWASHER
-
2608310-0008A NUTNUT
-
2769231-37F11 COVER, REAR DISCCOVER, REAR DISC
-
2809116-06197 BOLT (6X12)BOLT (6X12)
